Van's Aircraft RV-12 Manual

NOTE: Snap bushings inserted on this page are
to be used for wires routed through the F-1202F
and F-1203A Bulkheads in the remainder of this
section.

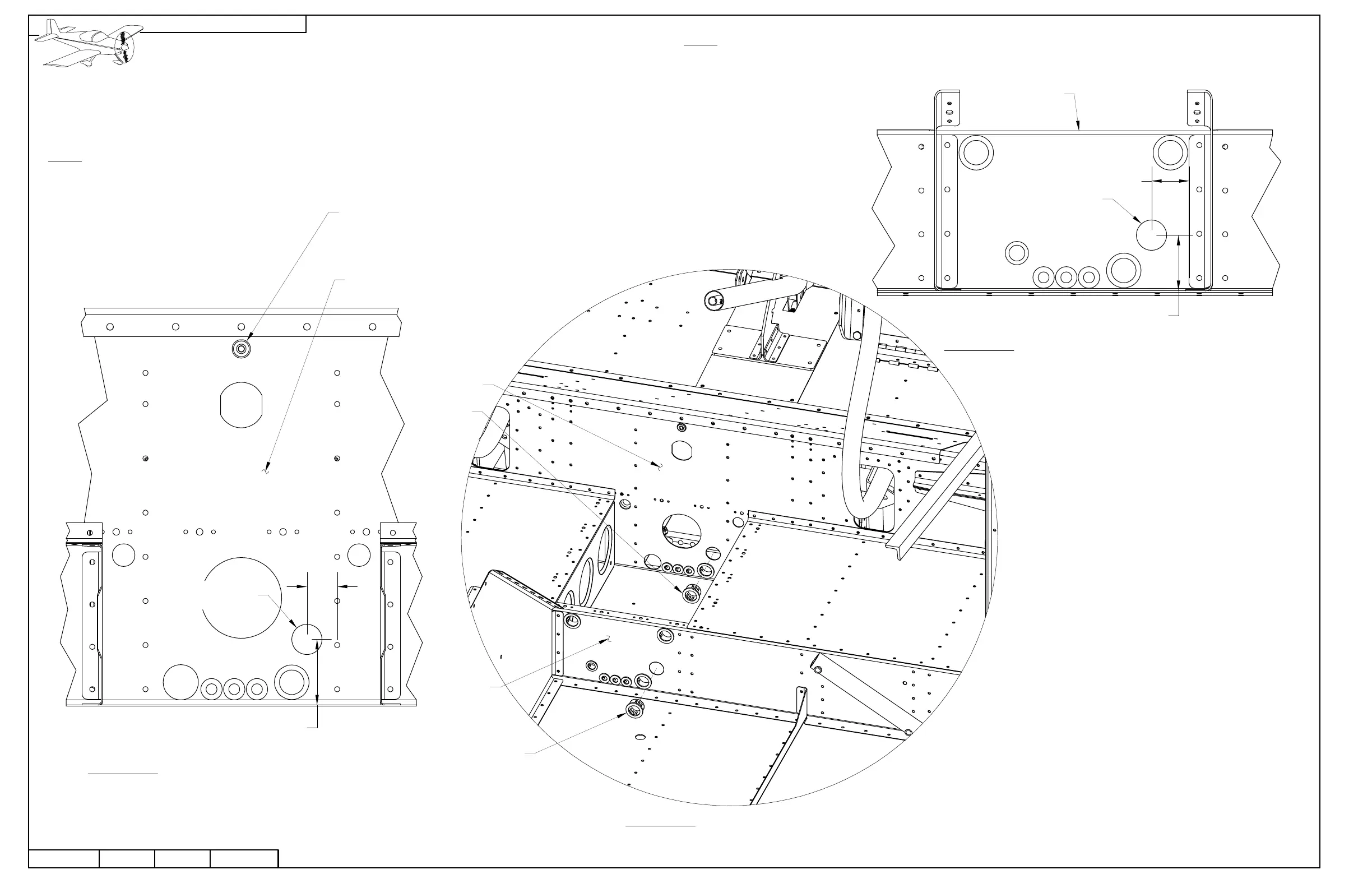

Step 1: Drill #30 a pilot hole in F-1203A Bulkhead
using the dimensions given in Figure 1.
Use a step drill to enlarge the #30 hole to 3/4.
Insert a snap bushing into the hole per the callout
in Figure 2.
Step 2: Drill #30 a pilot hole in
F-1202F Bulkhead using the
dimensions given in Figure 3.
Use a step drill to enlarge the
#30 hole to 3/4.
Insert a snap bushing into the
hole per the callout in Figure 2.
FIGURE 2: INSTALLING SNAP
BUSHINGS
FIGURE 3: UPDATING THE F-1202F BULKHEAD
(VIEW FROM FORWARD SIDE LOOKING AFT)
SB750-10
SB750-10
F-1202F
F-1203A
15/16
[23.7 mm]
F-1202F
DRILL #30
ENLARGE 3/4
FIGURE 1: UPDATING THE F-1203A BULKHEAD
(VIEW FROM FORWARD SIDE LOOKING AFT)
3/4
[19.1 mm]
1 5/8
[41.3 mm]
(DISTANCE FROM BOTTOM SKIN)
1 3/8
[34.9 mm]
(DISTANCE FROM BOTTOM SKIN)
DRILL #30
ENLARGE 3/4
F-1203A
PAGE REVISION: DATE:
VAN'S AIRCRAFT, INC.
10/03/11
PAGE
42D-14 RV-12
REVISION:
0
DATE:
AUX MUSIC JACK
