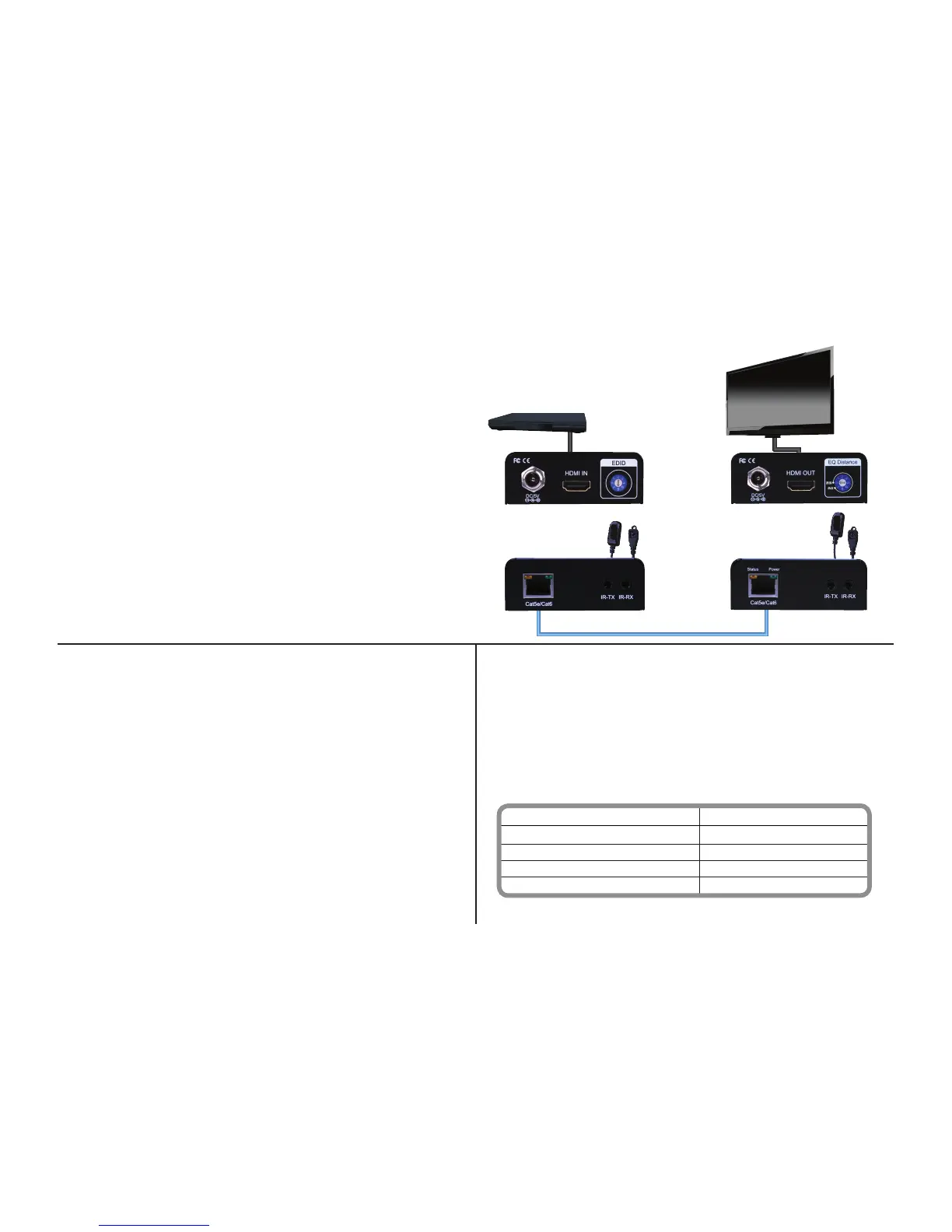

Vanco EVEX2005 User Manual

BluRay® Player
HDTV
HDMI
HDMI
IR Transmitter
IR Receiver
IR Transmitter
IR
Receiver
HDMI over Cat5e/6
Transmitter Receiver
Back
Front
Back
Front
1. Connect a source such as a Blu-Ray Player, game
console, A/V Receiver, Cable or Satellite Receiver, etc.
to the HDMI input on the Transmitting unit.
2. Connect a display such as an HDTV or HD Projector to
the HDMI output on the Receiving unit.
3. Connect a single Category 5e/6 up to 131ft/40m to
the output of the Transmitting unit, and the other end to
the input of the Receiving unit.
4. For power, plug both the Transmitting unit and Receiving
unit with the included power supplies.
CONNECT AND OPERATE
0 - EDID Full-HD (1080p@60) (1080p@30) (1080p@24)
(1080i@60 (720p@60) - 24bit 2D video & 7.1ch audio
1 - EDID Full-HD(1080p@60) - 24bit 2D video & 2ch audio
2 - EDID Full-HD(1080p@60) - 24bit 3D video & 7.1ch audio
3 - EDID Full-HD(1080p@60) - 24bit 3D video & 2ch audio
4 - EDID HD(1080p@30)(1080i@60)(720p@60) - 24bit 2D video
& 7.1ch audio
5 - EDID HD(1080p@30)(1080i@60)(720p@60) - 24bit 2D video
& 2ch audio
6 - EDID Full-HD(1080p@60) - 36bit 2D video & 7.1ch audio
7 - Auto EDID learning/ Manual EDID learning mode
EQ ROTARY DIAL
If you see ickering or blinking image on the display, adjust the EQ rotary
switch to improve the cable skew. MAX stands for the strongest HDMI
signal level for the longest possible transmission length while MIN stands
for the weakest HDMI signal level for short transmission length. Adjust the
signal level from MIN to MAX until desired video quality is displayed.
Recommended EQ settings
LENGTH
Position Cable Length
0 (MIN)-2 under 15m (49.5ft)
3-5 15-30m (49.5 ft - 99ft)
6-7 (MAX) 30-40m (99ft - 132ft)
EDID SETTINGS

Vanco EVEX2005 Specifications

General

Brand	Vanco
Model	EVEX2005
Category	Extender
Language	English
