Vanderbilt GM730 Application Guide

Installation - Accessories
4
21
Vanderbilt
Seismic Detectors Application Guide
I-200153-1
08.2016

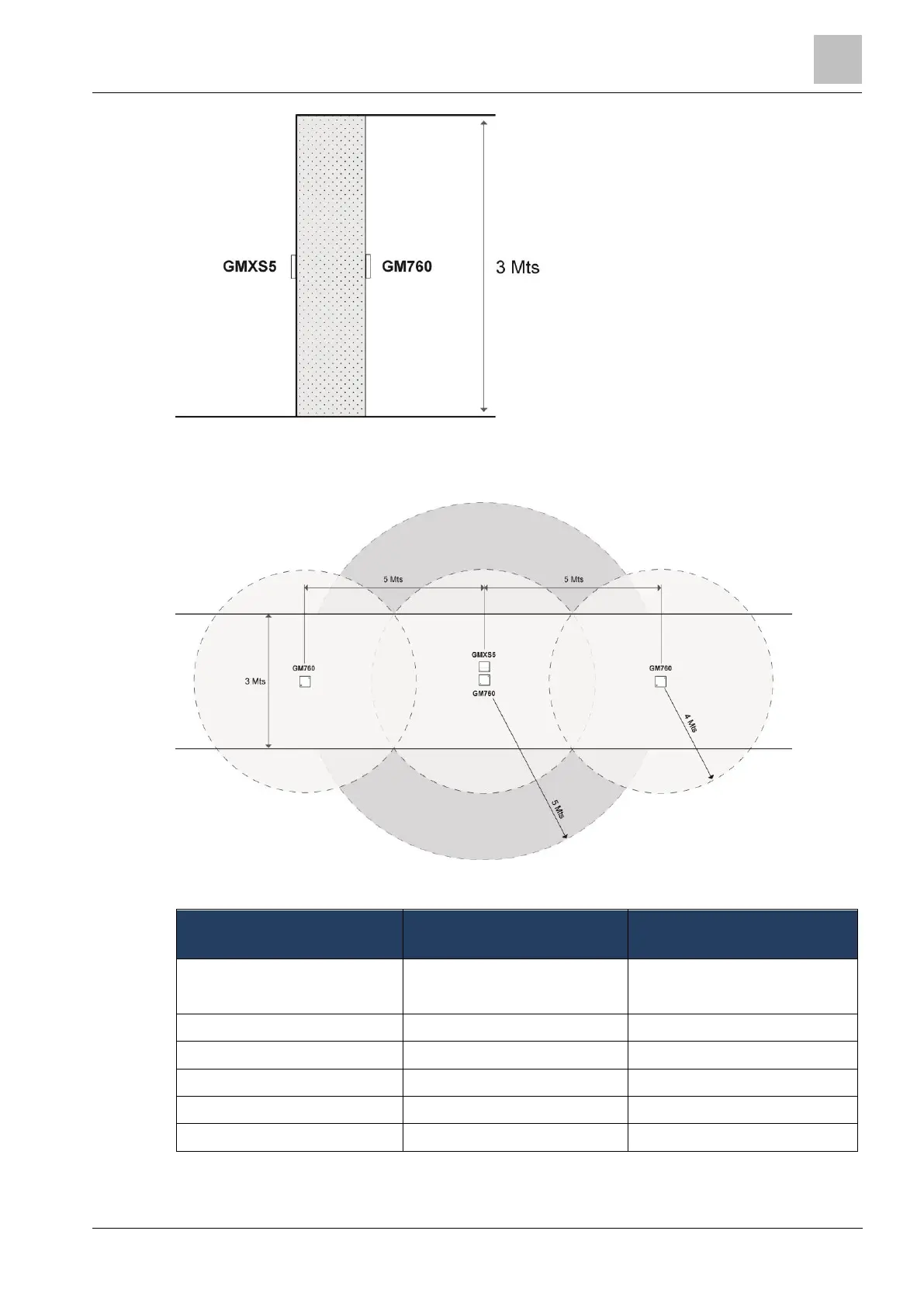

Figure 4-9: External GMXS5 and internal GM760
Figure 4-9 shows the detectors mounted internal to the protected space and the GMXS5 mounted
external to the protected space. This location provides a stringent test for the detectors as the test
signals from the GMXS5 have to travel through the wall.
Figure 4-10: Activate 3 detectors from a single GMXS5
Figure 4-10 is an example of how to activate multiple detectors from a single GMXS5.
Material
Detector
Effective Transmission
Diameter of the GMXS5
Concrete
GM775
5m
Steel
GM775
2m
Concrete
GM760
5m
Steel
GM760
2m
Concrete
GM730
4m
Steel
GM730
2m
Steel
GM710
2m
Table 4-1: GMXS5 transmission diameters
