Vanderbilt GM760 User Manual

4
Installation - Accessories
20
Vanderbilt
Seismic Detectors Application Guide
I-200153-1
08.2016

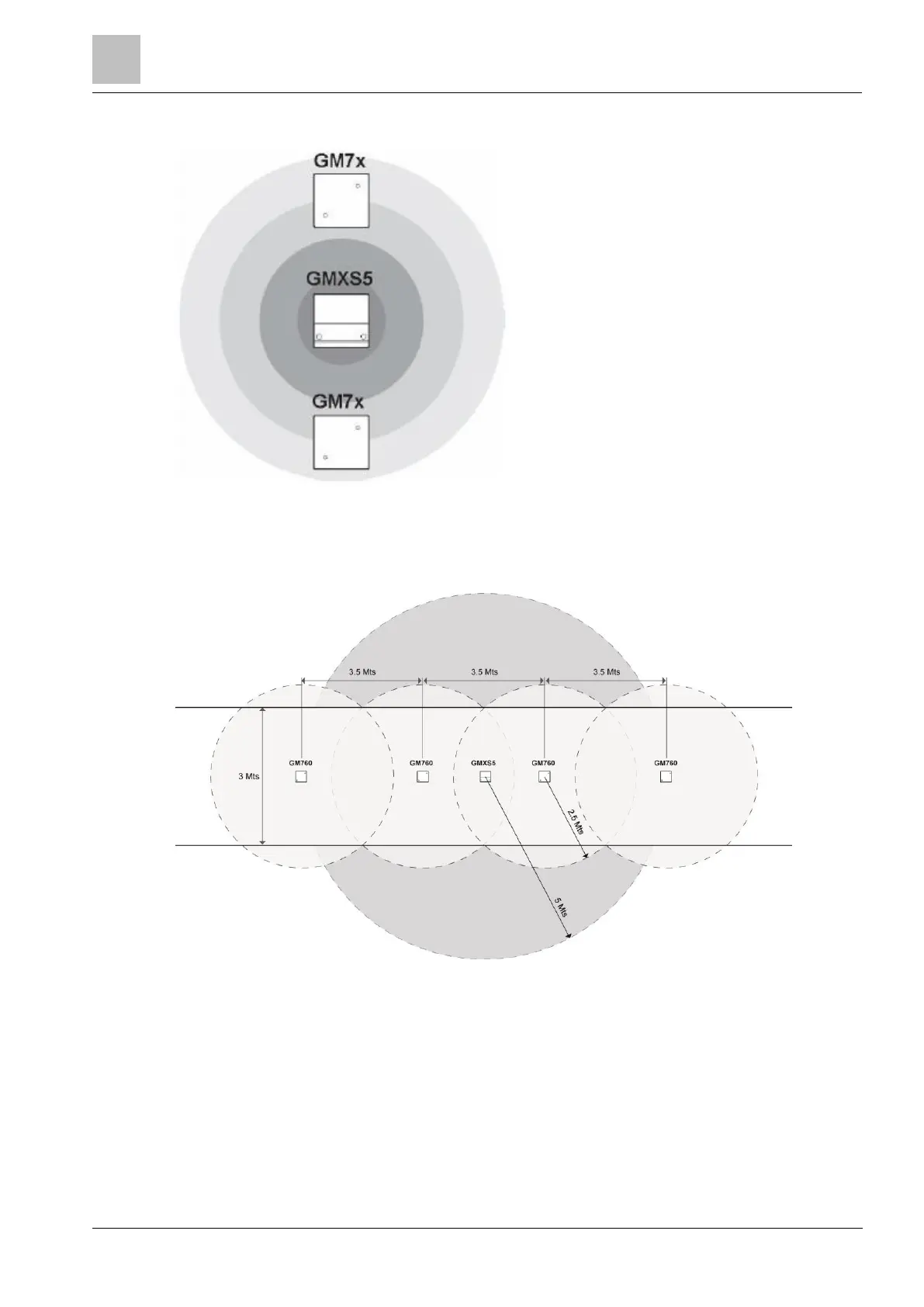

Figure 4-7: GMXS5 transmission signals
Figure 4-7: GMXS5 transmission signals shows the transmission signals from the GMXS5, which
are strongest closest to the device but still detectable by GM7xx detectors if the signals are within
the operating radius of the detectors.
Figure 4-8: Activate 4 detectors from a single GMXS5
Figure 4-8: Activate 4 detectors from a single GMXS5 is a typical example of how to activate multi-
ple detectors from a single GMXS5.
