VM-5500 Operator’s Manual
2018
20
Optional Setup | Rev 0418.1

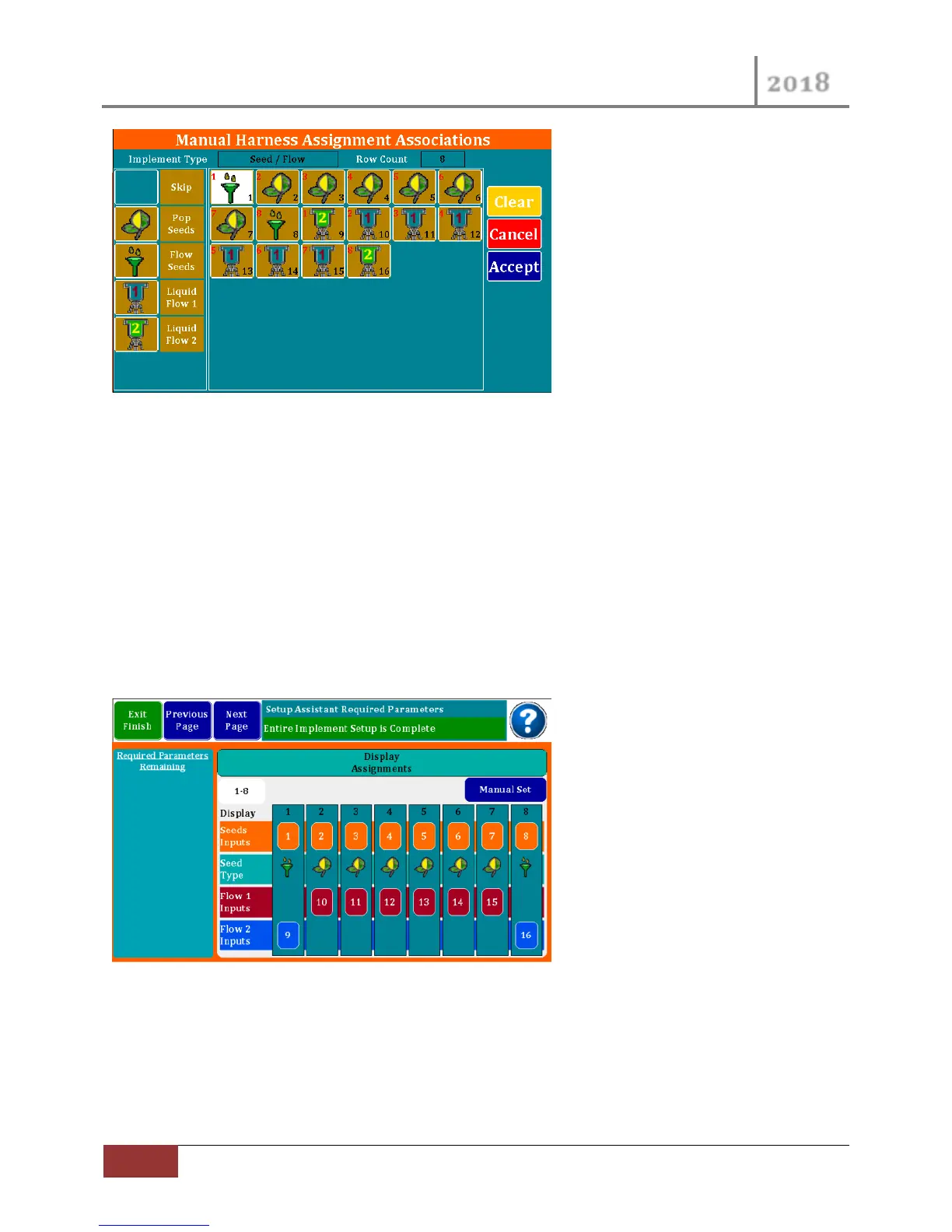

Figure 12 Manual Harness Assignment Dialog
The figure above shows an 8 Row implement with 8 Rows of Seed, and 8 Rows of Flow. The Flow
sensors are assigned to two different rates. The funnel “Flow Seeds” is for flow blockage sensors often
used on air seeders.
The Black Number in the bottom Right corner of each Row button is the Row Wiring number. The Red
Number in the top Left corner is the Display or Implement Row.
Press “Clear” to start over, “Cancel” to Exiting without recording changes, or “Accept” to accept changes
and return to the Display Assignment Viewer.
With the setup in Figure 12 above the Display Assignment Viewer would look like the following:
Figure 13 Resulting Display Assignments
3.1.4 Section Control
Refer back to Section 2.3.5 above
Section assignments may be entered in this screen. If you have a planter or liquid system that is setup
with section shutoff’s, you can configure the rows to match so the monitor will recognize the shutoffs
