Vanguard Laser User Manual

Congratulations on the purchase of your new Laser! The Laser is a very unique boat that can
accommodate many different sized sailors and abilities, due to its three interchangeable rigs. The
Laser, the Radial and the Laser 4.7 all use the same hull and equipment with the exception of the
lower mast and sail.
We suggest that you read through this guide to better familiarize yourself with the parts and rigging
of your new boat. If you have any questions please contact your dealer or call Vanguard’s customer
service at 1-800-966-SAIL.
Image 2
1. Sail Numbers
2. Line Bag
3. Tiller with 48” extension
4. Rudder
5. Daggerboard
6. Battens
7. Boom
8. Upper mast
9. Cleat base with cleats
10. Lower vang block/cleat
assembly
11. Mainsheet ratchet block
12. Spring
13. Forkhead block base
14. 16 mm Forkhead blocks (2)
15. Large traveler block
16. Small traveler block
17. Vang key
18. Pin and ring
19. Double micro block
with becket (2)
20. Small double block with
becket
21. Micro block with becket (2)
22. Micro single block (2)

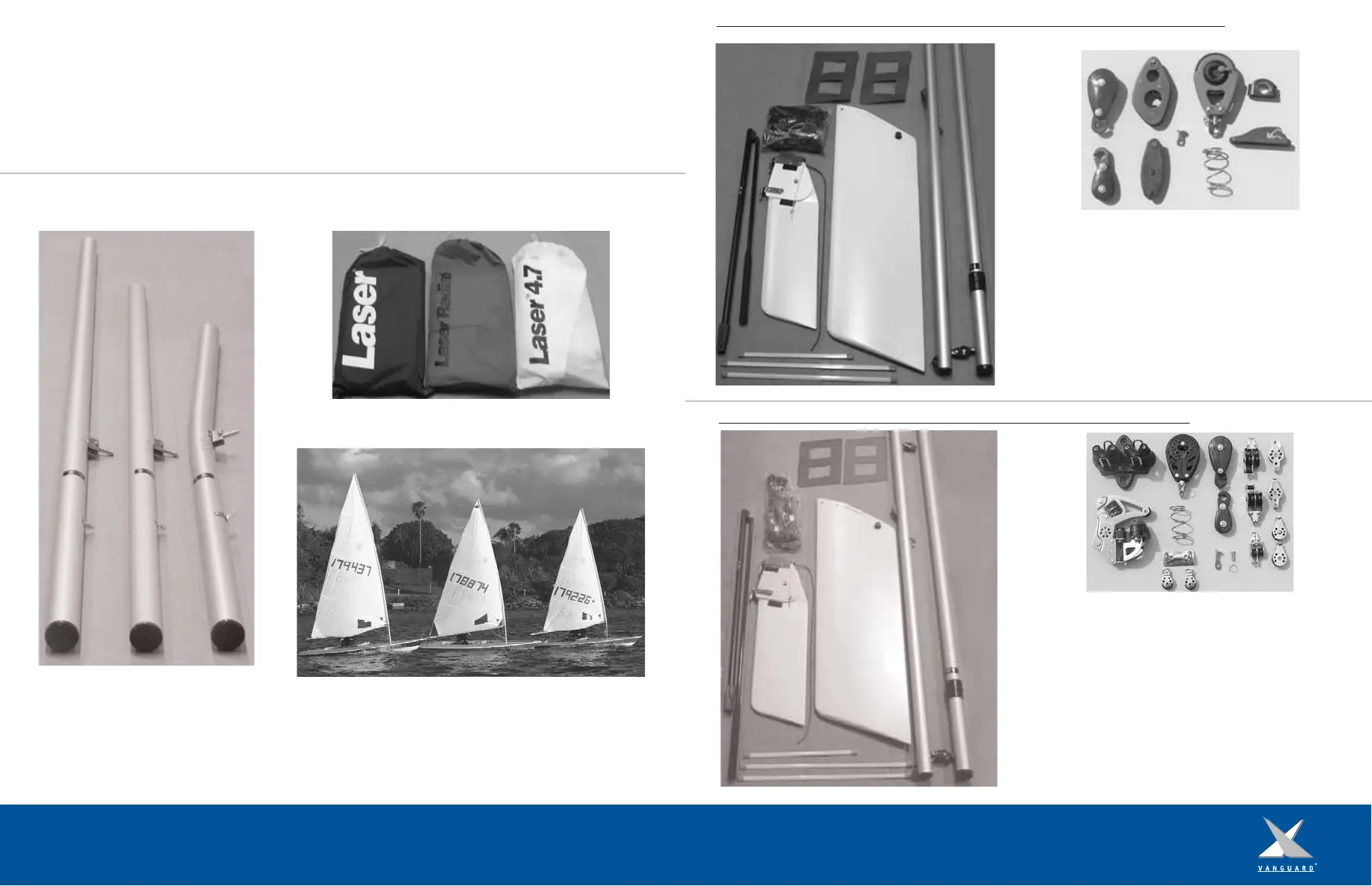

Unpacking and Preparation: Laser, Radial & Laser 4.7 Standard Delivery Kit
Image 1
1. Sail Numbers
2. Line Bag
3. Tiller with 33” extension
4. Rudder
5. Daggerboard
6. Battens
7. Boom
8. Upper mast
9. Large traveler block
10. Small traveler block
11. Large vang block
12. Small vang block
13. Vang Key
14. Mainsheet ratchet block
15. Spring
16. Bullseye fairlead
17. Clam cleat
Depending of which Laser you have selected (Laser, Radial or Laser 4.7) you will have one of the following sails and corresponding lower masts
located in your delivery kit.
Locate your delivery kit. Depending on which model you have purchased (Pro or Standard) there will be a few differences in some of the
hardware. The differences between the two models are the cunningham, outhaul, vang and tiller extension. Using images 1 or 2, identify the
contents of your kit. To avoid damaging the contents, be sure not to cut into the packaging inside the box.
Above from left to right: Laser lower mast,
Radial lower mast, and Laser 4.7 lower mast.
Above from left to right: Laser sail, Radial sail, Laser 4.7
sail
Your boat rigged will resemble one of the Lasers shown above. From left
to right: Laser, Radial, and Laser 4.7.
Image 2
Image 1
Image 2
Image 2
4
8
6
1
2
5
5
7
9
10
7
2
4
6
1
8
3
9
10
12
11
14
13
11
12
13
14
15
17
16
18
17
15
16
19
20
21
22
Unpacking and Preparation: Laser, Radial & Laser 4.7 Pro Delivery Kit
3
