Vantec 3 User Manual

Installation
6
5. Installation:
NexStar 3 External 2.5” HDD Enclosure:
5.1. Hardware Installation:
Preparing the NexStar 3:
1) Remove the side of the NexStar 3 with the power and USB connection ports.
If it has previously been screwed in place, remove the screws first.
2) Carefully slide out hard drive caddy.

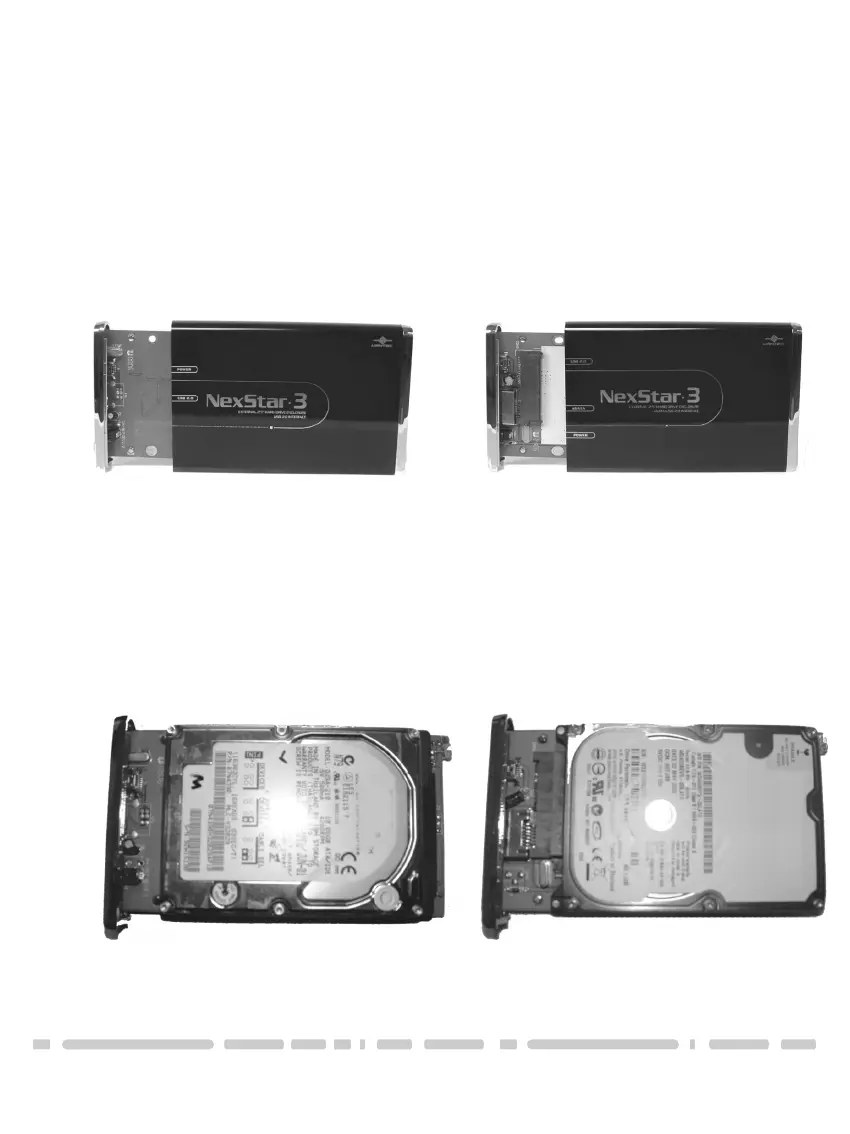

Installing the hard drive in the NexStar 3:
1) Connect the 2.5” hard drive to the IDE connector (NST-260U2) or SATA/Power
connector (NST-260SU).
NST-260SU
NST-260SUNST-260U2
NST-260U2

Vantec 3 Specifications

General

Brand	Vantec
Model	3
Category	Enclosure
Language	English
