Vantec NexStar-DX - Page 9

Installation
7

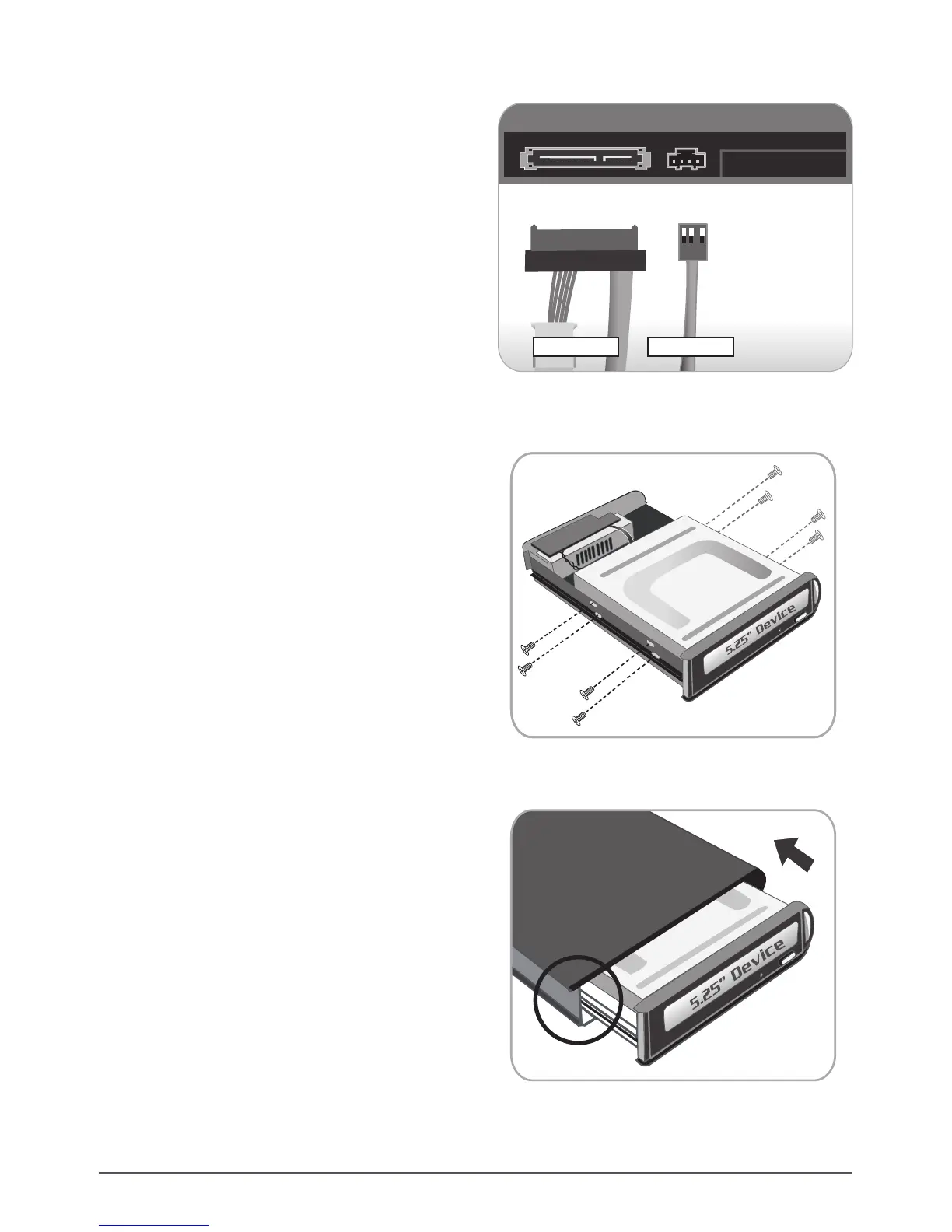

(6) Align the device so that the front of the device
is flushed with the front of the NexStar® DX.
( Figure 5.1-F )
( Figure 5.1-E )
( Figure 5.1-F )
(5) Tighten the 4 screws on both sides of 5.25” device.
( Figure 5.1-E )
Audio Cable
SATA Cable
Audio PortSATA Port
( Figure 5.1-D )
(4) Connect the SATA and power cable to the device
as shown. ( Figure 5.1-D )
