Note:
• When positioning the rear lens, ensure it's not placed over the rear windshield's
defogging lines to prevent interference with video quality.
• Clean the lens using the dust-free cloth provided by VANTRUE for optimal clarity.
• Follow the on-screen instructions carefully to ensure the rear camera is mounted
correctly.
• The lens with the red light indicator is for the rear cabin; it should be positioned
on the right side to face the interior of the vehicle.
• You can adjust the front cabin camera angle to 45 degrees vertically.
• The rear camera angle is also adjustable up to 45 degrees vertically.
• For the rear cabin camera, you have a greater range of adjustment, up to 65
degrees vertically.

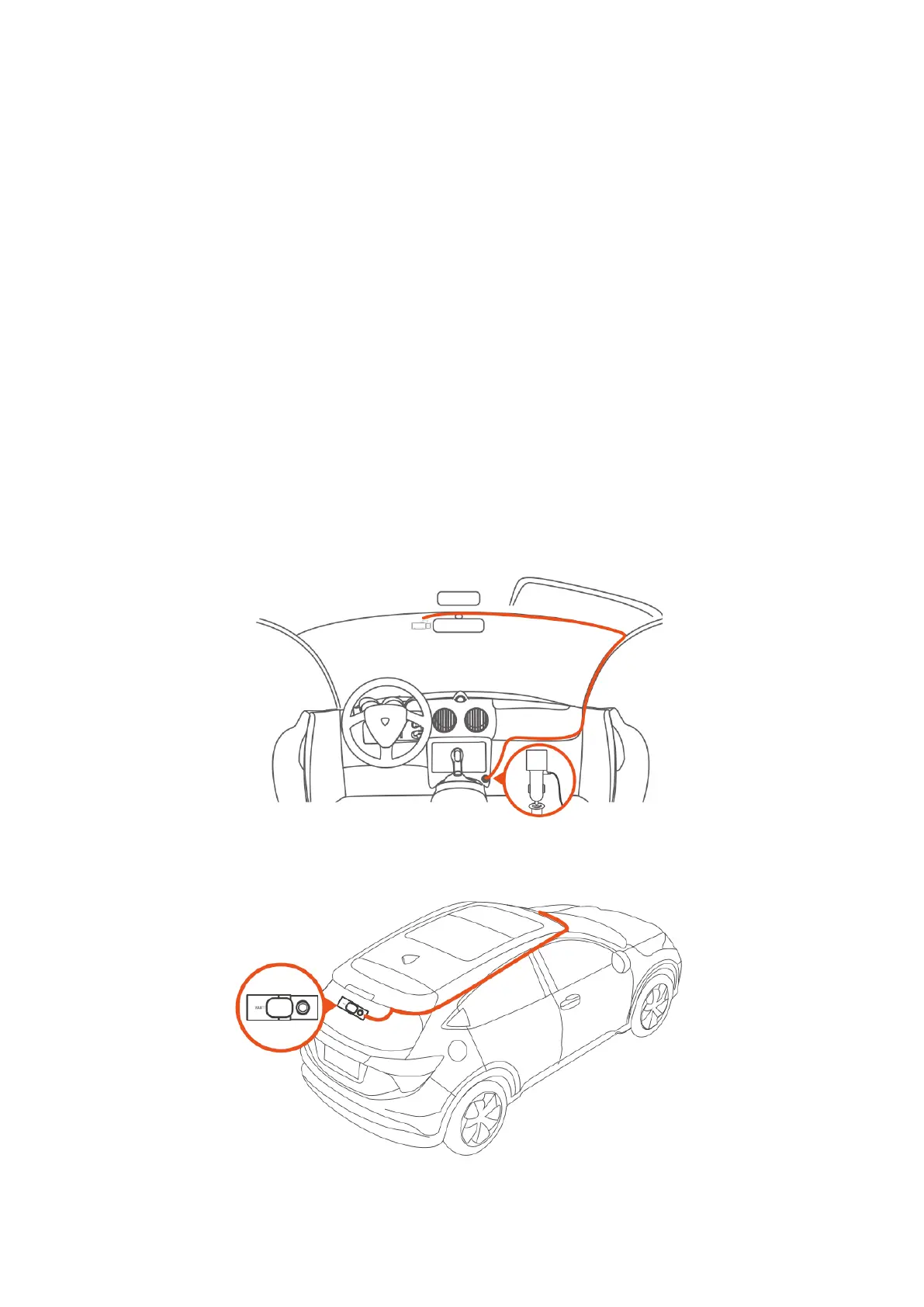

Cable Management Car charger cable
Use the included VANTRUE pry bar to route the car charger cable through the A-pillar
seal and windshield, from the passenger side to the cigarette lighter.
Rear camera cable: Organize the rear camera cable from the front windshield to the rear
windshield, following the illustration below.
