12

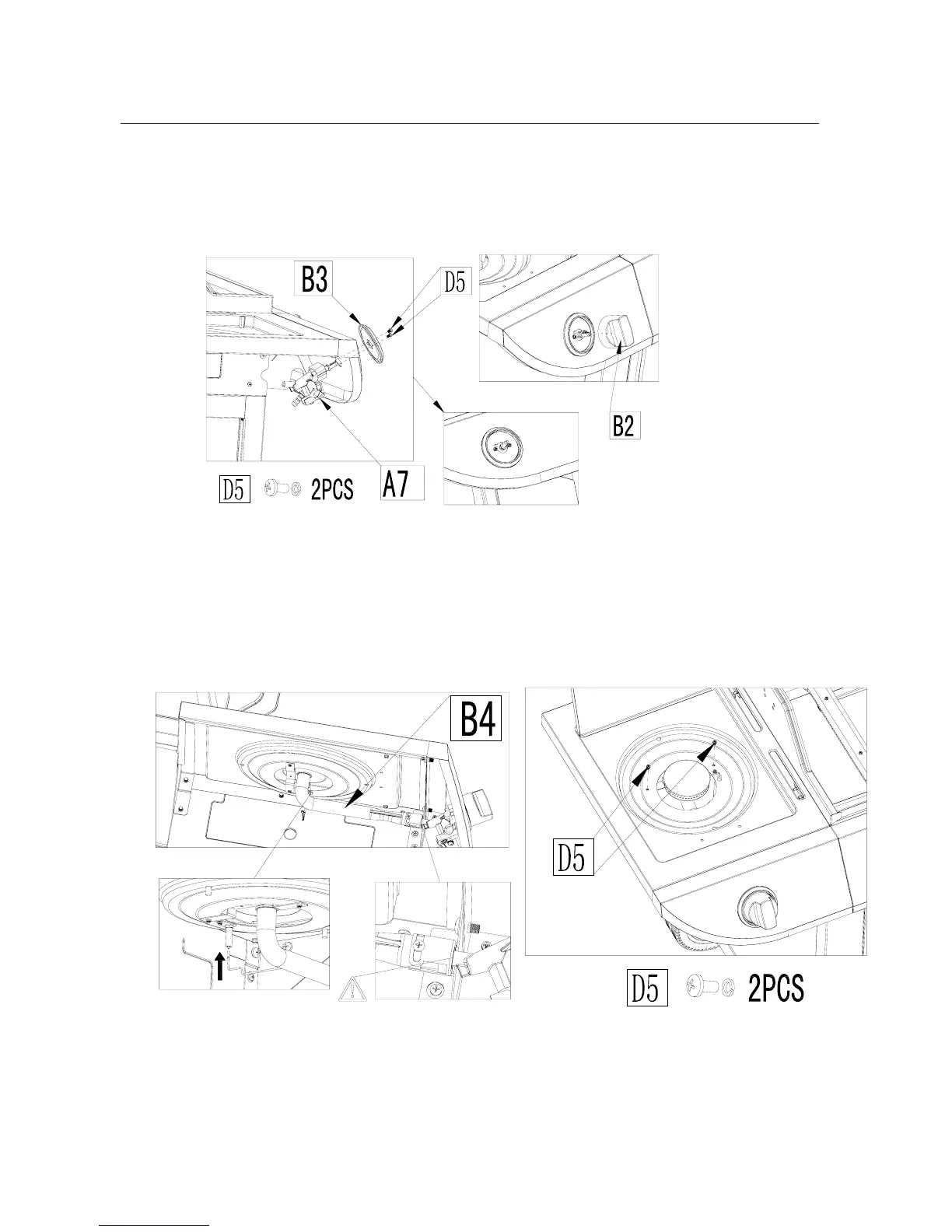

Step13：Secure the Side Burner Valve / Hose Assembly (A7) to the underside of the side
burner shelf, using M4x8 Bolt & Ø4 Spring Washer (D5), whilst also fixing the Side Shelf
Knob Bezel (B3) to the front of the side burner shelf, as shown.
Assemble the side burner Knob (B2) onto the side burner valve.
Step14:
Place the Side Burner (B4) through the central hole in the side burner shelf. Fit the
side burner venturi tube over the gas valve outlet. This is a loose fit and not a gas tight seal.
Secure the electrode and burner with M4x8 Bolt & Ø4 Spring Washer (D5).
Insert the ignition wire into the lower position on the side burner electrode.
To Next Page
