Introduction
Varec, Inc. 7

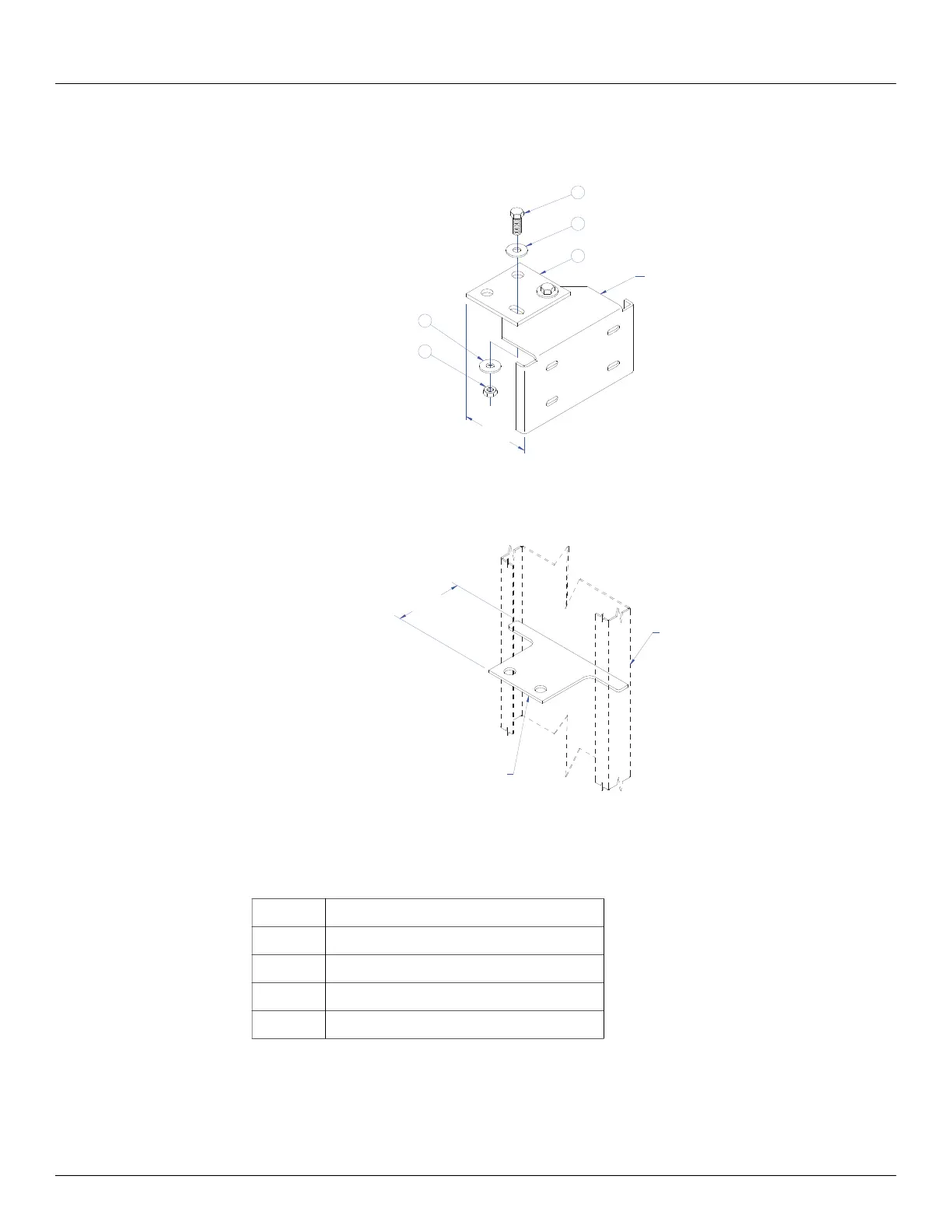

Figure 5: Options
Table 5: Gaugeboard Extension Parts
Item No. Description
1 Extension Bracket
2 Hex Nut
3 Hex Head Cap Screw
4 Flat Wsaher
Bolt or weld to tank
Standard support bracket
(B14177-003) furnished
with gaugeboard
(5.75)
[146]
3
4
1
4
2
Reinforcing bracket
(02-10721-003)
GAUGEBOARD EXTENSION, 2 INCH [50.8 MM]
(13-10720-003)
CENTER GAUGEBOARD REINFORCING
BRACKET (02-10721-003)
3.75
[95.2]
Gaugeboard section
