ADJUSTING THE SHOCK ABSORBER TG-2
Basic setting of vibration dampers see the assembly of shock absorber onto handlebars. Correct functioning of the shock
absorber requires de-arrestment of the pin on the swivel holder of handlebars. Tip the arresting-pin-controlling lever
upwards and secure it with the retaining split pin (See Figure 2). The handlebars are in their movement to sides
restricted only by the vibration dampers.

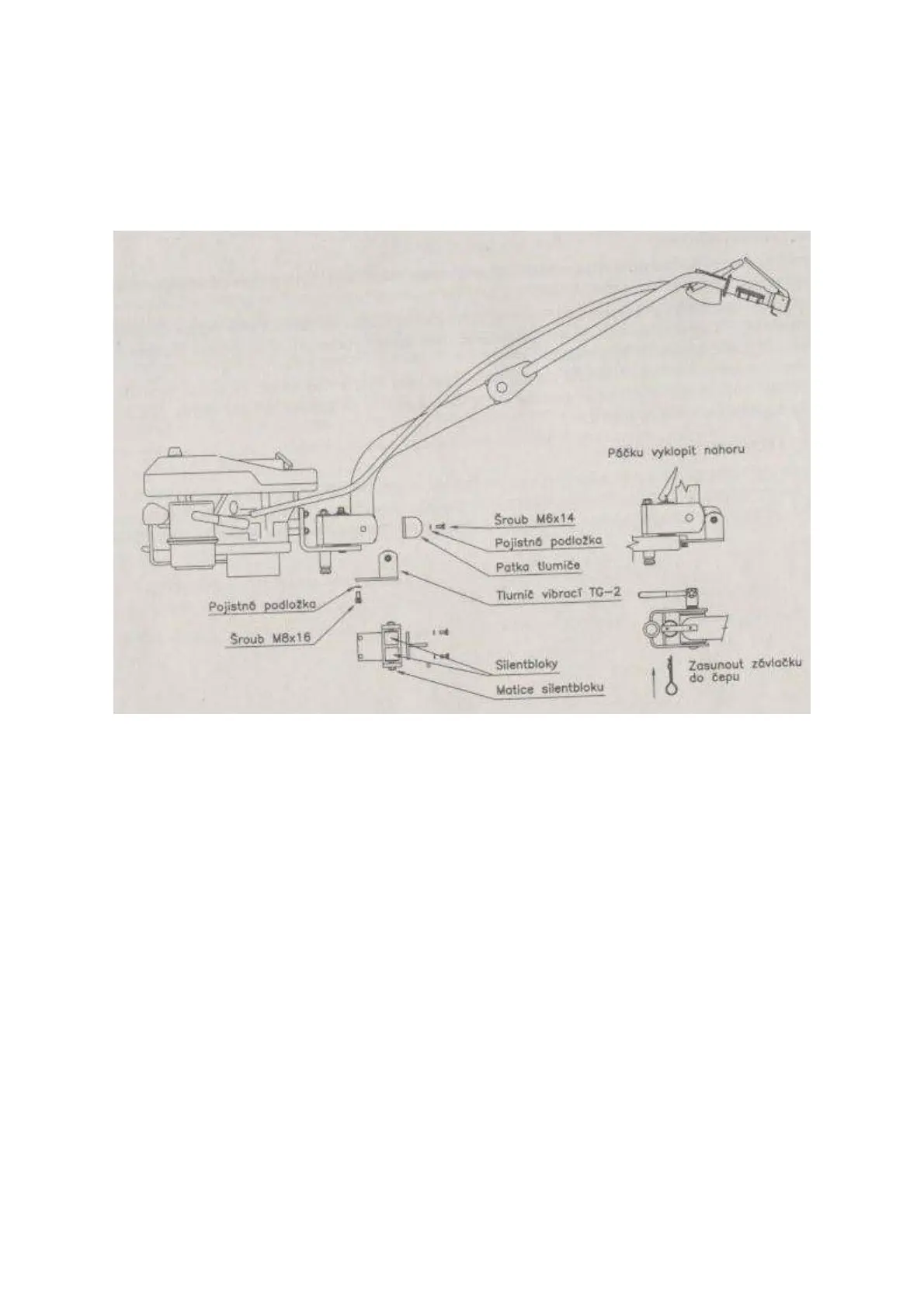

Figure 2: TG-2 shock absorber assembly
Pojistná podložka Lock washer
Šroub M8x16 Bolt M8x16
Šroub M6x14 Bolt M6x14
Pojistná podložka Lock washer
Patka tlumiče Shock absorber foot
Tlumič vibrací TG-2 Shock absorber TG-2
Silentbloky Silent blocks
Matice silentbloku Silent block nut
Páčku vyklopit nahoru Lever to be tipped upwards
Zasunout závlačku do čepu Split pin to be slid into the pivot
ADJUSTING THE GUIDE HANDLEBARS
Design of handlebars enables their setting to sides and height. Side adjustment is possible by arrestment pivot in the
lower joint of handlebars (Figure 3). There are three holes in the plate, into which the pivot falls thus arresting the
position of guide handlebars. There positions are used in cases when it not desirable that the operator moves on the
worked soil (e.g. at rotary cultivation). Height adjustment can be made at two places on the guide handlebars. Basic
height setting is made by loosening the tightening crank in the lower joint, setting of the carrier tube of handlebars in
the teeth on the carrier tube and lower joint, and by a subsequent tightening of the bolt. Finer height setting of
handlebars height can be made by loosening the tightening crank in the upper joint, slight turning in the teeth on the
carrier tube and in the upper joint of the rail, and by a subsequent tightening of the tightening crank.
