TECHNICAL INFORMATION
AIR COOLING KIT INSTALLATION
SIDE MOUNTING

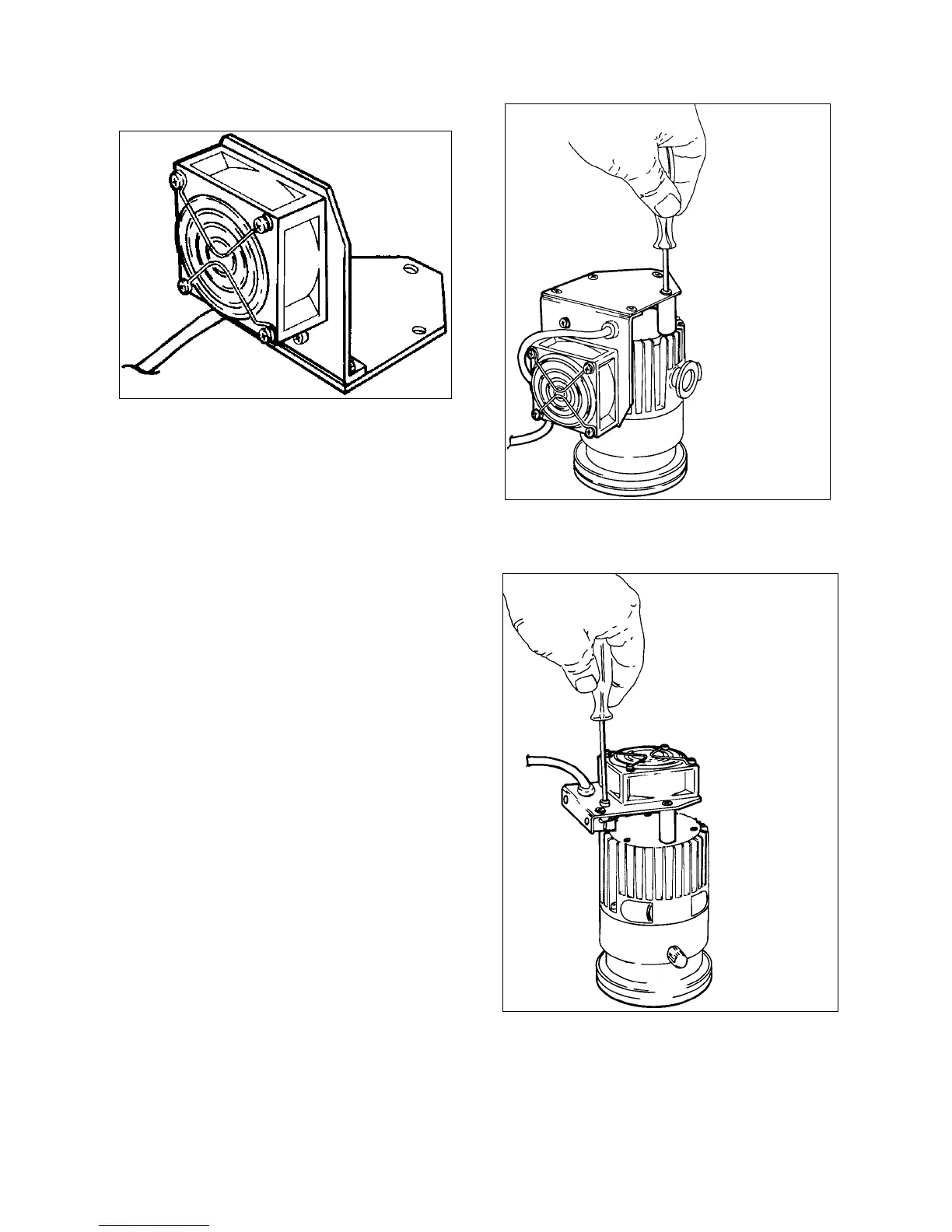

A fan kit model 969-9310 is available for air cool-
ing the pump, when natural air convenction is in-
sufficient.
Fan specification:
The fan can also be mounted under the pump as
shown in the figure.
− air flow: 9 l/s (10 CFM)
− input voltage: 24 Vdc
− maximum power: 2.16 W
− dimensions: 60x60 mm (2.36x2.36 inches)
Open the package containing the feet and respec-
tive screws and install them as indicated in the in-
stallation of the base fixing kit.
BOTTOM MOUNTING
Position the fan on the pump, ensuring that the
holes in the plate line up with those in the feet.
Insert the respective washers and screws and
tighten with a screwdriver.
Connect the fan to the controller.
32 87-900-862-01(E)
