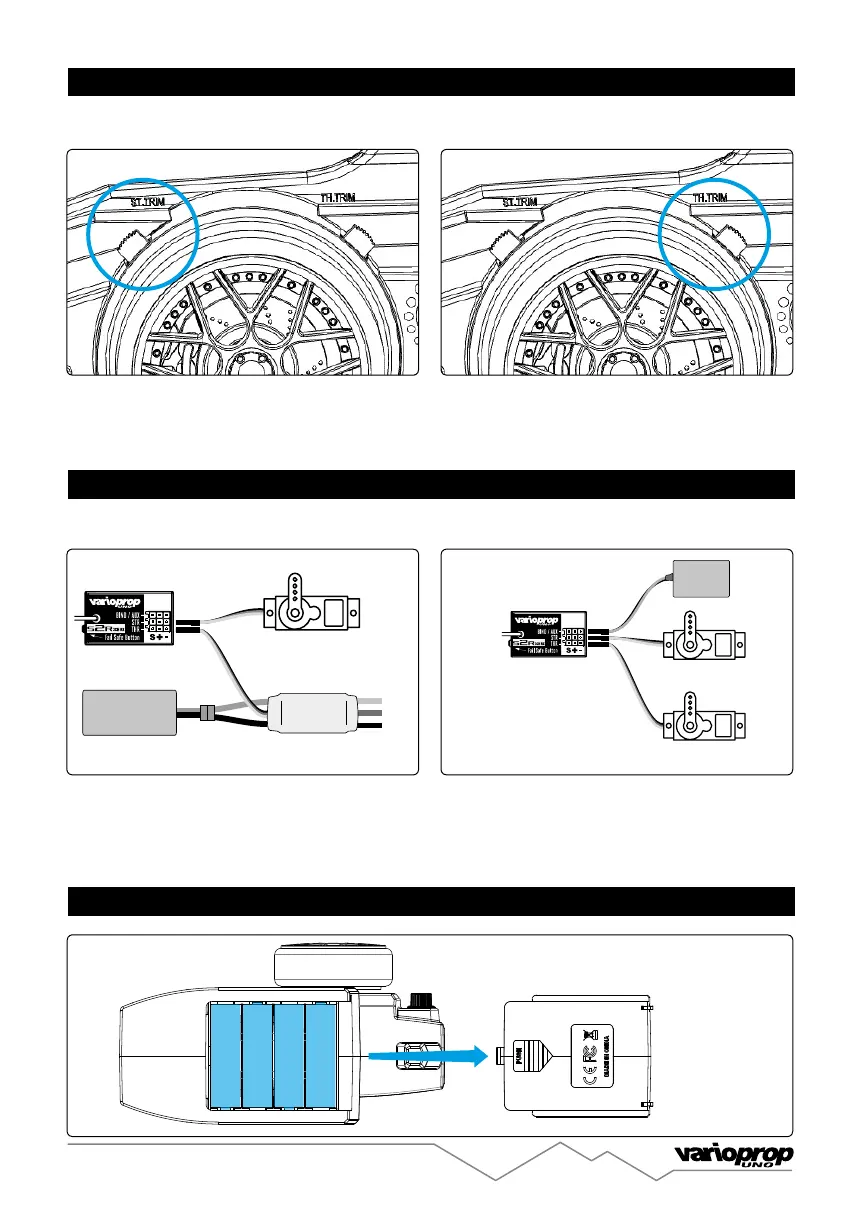

Varioprop Uno S2R - Transmitter Trims and Connections; Trim Adjustments; Receiver Connection; Battery Installation and Replacement

BATTERY
ESC
SERVO
RECEIVER
STEERING
SERVO
THROTTLE
SERVO
RECEIVER
BATTERY
4,8V - 6V
BATTERY
ESC
SERVO
RECEIVER
STEERING
SERVO
THROTTLE
SERVO
RECEIVER
BATTERY
4,8V - 6V
STERRING TRIM :The trim is used to adjust the steering
setting so that the car moves in a straight line without
using the steering wheel to compensate.
Please note! : The neutral and maximum positions are indicated by a long beep tone.
Install the Receiver in your model using double-sided Velcro. Velcro will hold the receiver in place and protect it from
vibrations. Mount the antenna up and away from the vehicle in an antenna tube. The higher up the antenna is, the better
signal it will receive.
Install and connect the receiver, servos and other components in accordance with the “Assembly Precautions”.
CAUTION: NEVER CUT THE ANTENNA
THROTTLE TRIM :The trim is used to adjust the setting
of the neutral position of the throttle without using the
throttle/brake trigger to compensate.
Remove the cover and insert 4 AA size batteries.
Observe the polarity markings and insert accordingly.
STEERING TRIM
CONNECTION WITH A ESC
THROTTLE TRIM
GAS POWERED MODEL
1.5V - AA BATTERY 1.5V - AA BATTERY 1.5V - AA BATTERY 1.5V - AA BATTERY
5
TRANSMITTER FUNCTIONS
RECEIVER CONNECTION
BATTERY INSTALLATION / REPLACEMENT
