Varytec Colors SonicStrobe - Page 22

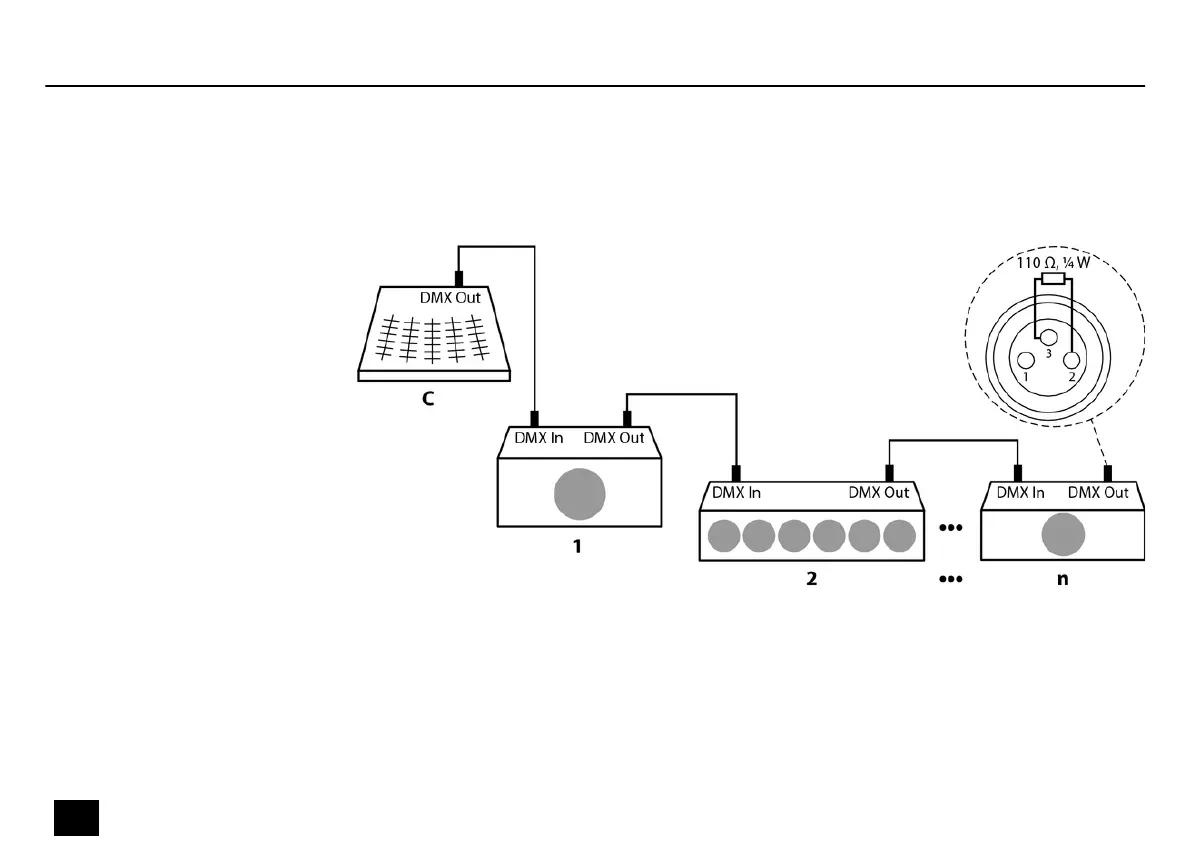

Connect the DMX input of the device to the DMX output of a DMX controller or another DMX
device. Connect the output of the rst DMX device to the input of the second one, and so on
to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain
is terminated with a resistor (110 Ω, ¼ W).
Connections in DMX mode
Starting up
22
Colors SonicStrobe
stroboscope
