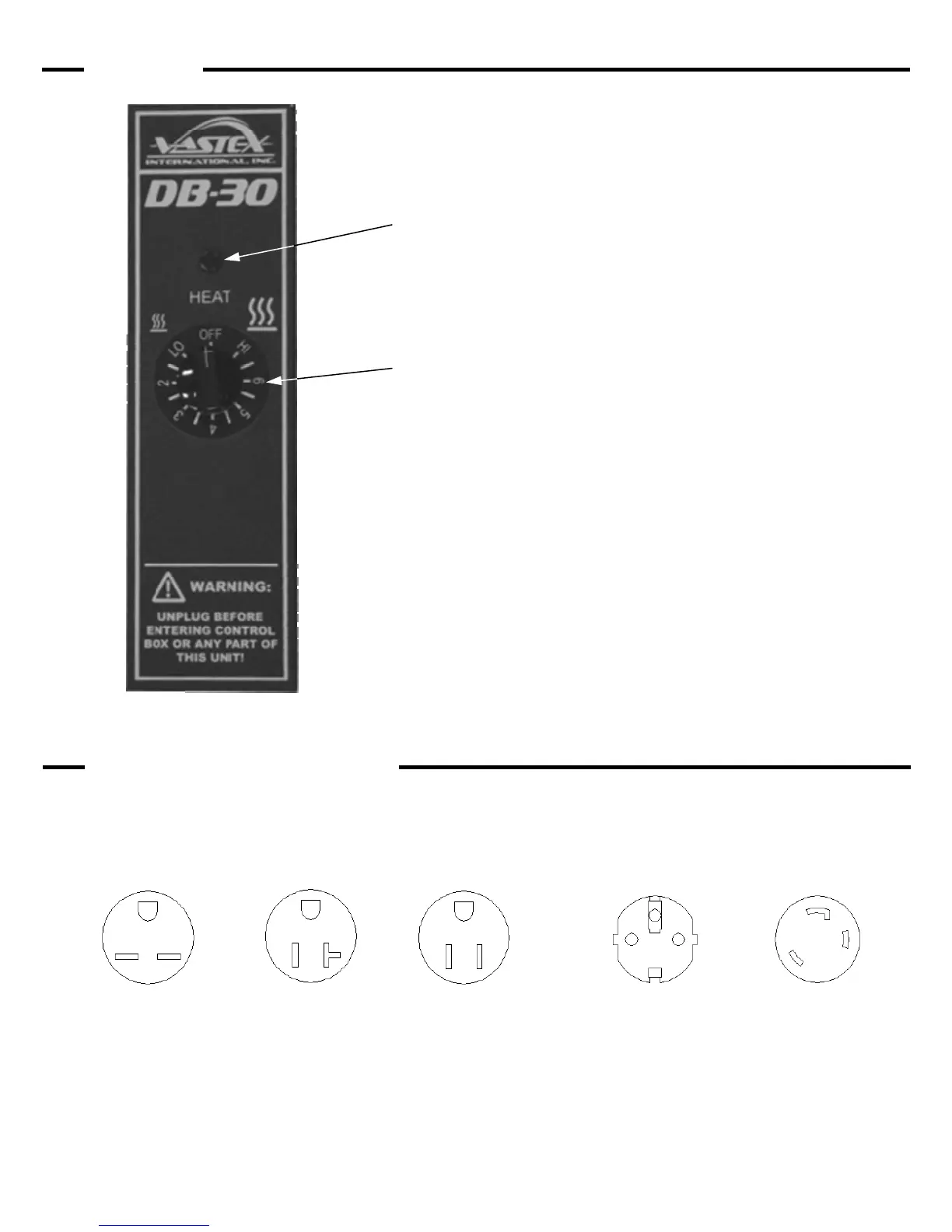

Controls
240 Volt 15 Amps
Nema 6-15R
DB-240, DB-30, DB-18-240
240 Volt “X”Series Conv.
120 Volt 20 Amps
Nema 5-20R
DB-120, DB-18 &
DB-30-120
120 Volt 15 Amps
Nema 5-15R
120 Volt “X”Series Conv.
120 Volt Exhaust options
120 Volt Scrub Air
240 Volt 2.5 to 15 Amps
CEE 7/7
All Continental Europe
Machines under 16 amps
240 Volt 22 Amps
L6-30R
DB-II-18 & DB-II-30
Receptacle Configuration
The Diagrams below show the possible Receptacles needed for the conveyor and chamber of your DB-Series
Dryer.
Heat on Light
This RED light is wired to the controller. It will
illuminate when the control is turned on, even
if the controller has failed.
Variable Heat Control
The control has positions LO-2-3-4-5-6 and HI. The controller
turns the power to the heater on and off to vary the tempera-
ture. The higher the number on the controller the longer the on
cycle and shorter the off cycle is. The HI position keeps the
power on constantly.
