Storage 53

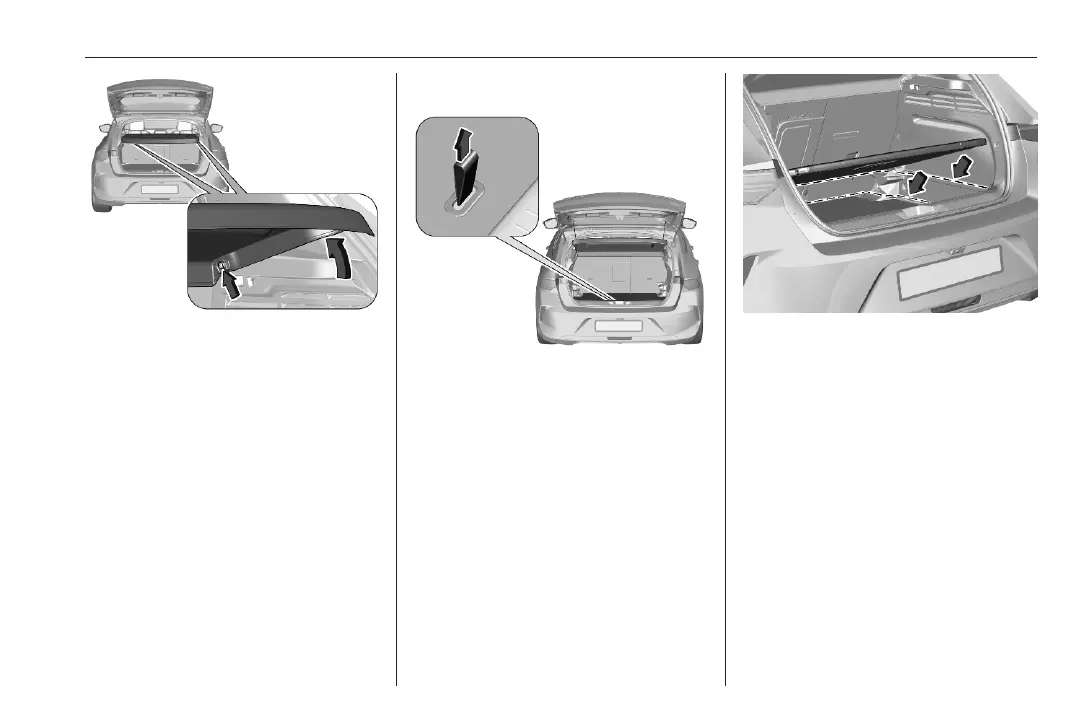

Lift the cover at the front and push it
upwards at the rear.
Remove the cover.
Fitting the cover
Engage the cover in the side guides
and fold downwards. Attach the
retaining straps to the tailgate.
Rear floor storage cover
The rear floor cover can be lifted and
removed. Use the loop to raise the
rear floor cover and then remove it.
Depending on version, the rear floor
storage cover may be foldable.
Double load floor
The double load floor can be inserted
in the load compartment in two
positions:
● lower position above the rear
floor storage cover
● upper position interlocked into
the back panel trim
To remove, use the opening to raise
the rear floor cover and lift it up.
If mounted in the upper position, the
space between the load floor and the
spare wheel well cover can be used
as a stowage compartment.
In this position and with rear
backrests folded, an almost
completely flat load bay is created.
