www.vax.co.uk
10
maintenance

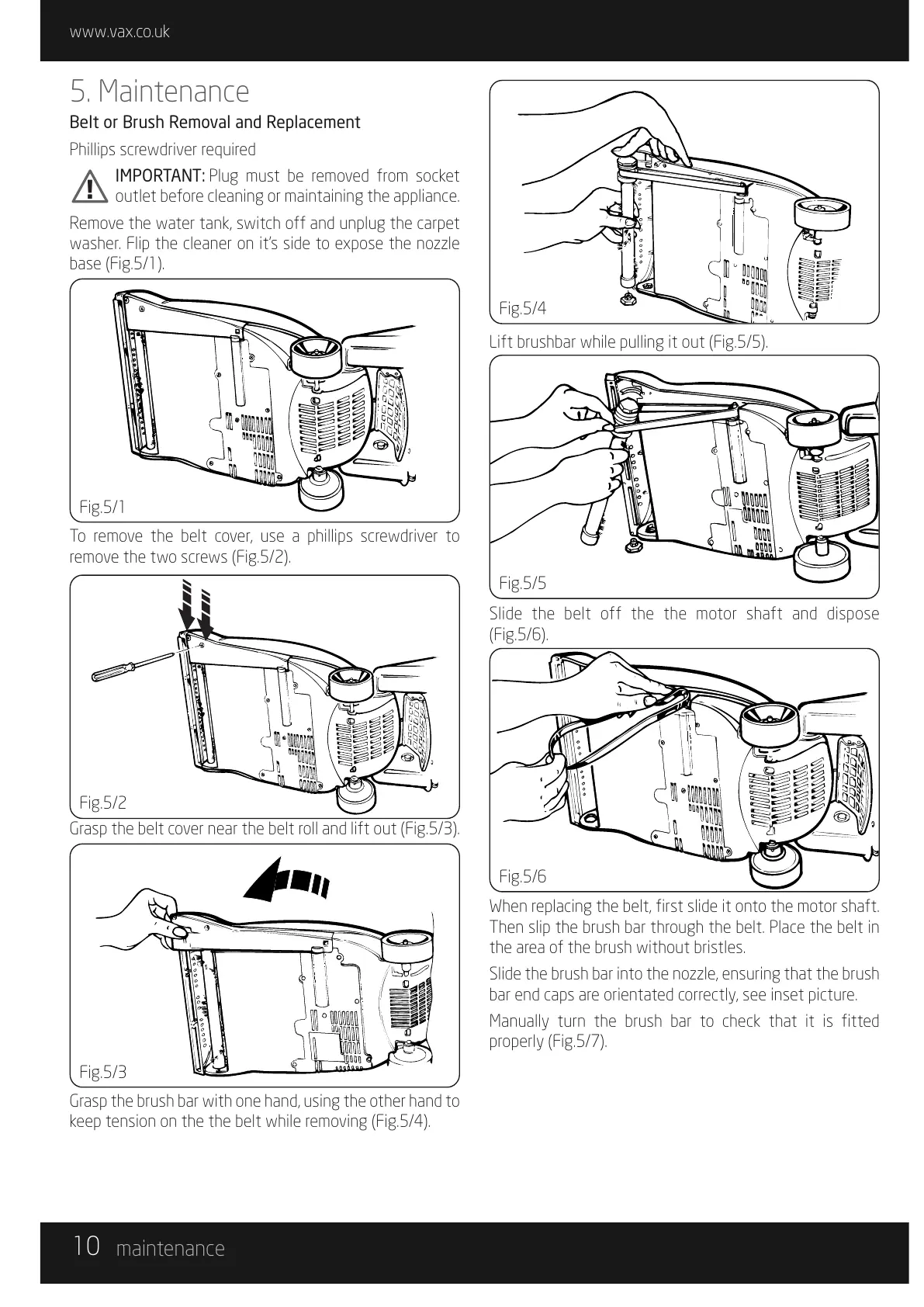

5. Maintenance
Belt or Brush Removal and Replacement
Phillips screwdriver required
IMPORTANT: Plug must be removed from socket
outlet before cleaning or maintaining the appliance.
Remove the water tank, switch off and unplug the carpet
washer. Flip the cleaner on it’s side to expose the nozzle
base (Fig.5/1).
To remove the belt cover, use a phillips screwdriver to
remove the two screws (Fig.5/2).
Grasp the belt cover near the belt roll and lift out (Fig.5/3).
Grasp the brush bar with one hand, using the other hand to
keep tension on the the belt while removing (Fig.5/4).
Lift brushbar while pulling it out (Fig.5/5).
Slide the belt off the the motor shaft and dispose
(Fig.5/6).
When replacing the belt, first slide it onto the motor shaft.
Then slip the brush bar through the belt. Place the belt in
the area of the brush without bristles.
Slide the brush bar into the nozzle, ensuring that the brush
bar end caps are orientated correctly, see inset picture.
Manually turn the brush bar to check that it is fitted
properly (Fig.5/7).
Fig.5/1
Fig.5/2
Fig.5/5
Fig.5/6
Fig.5/3
