www.vax.co.uk
6
operation

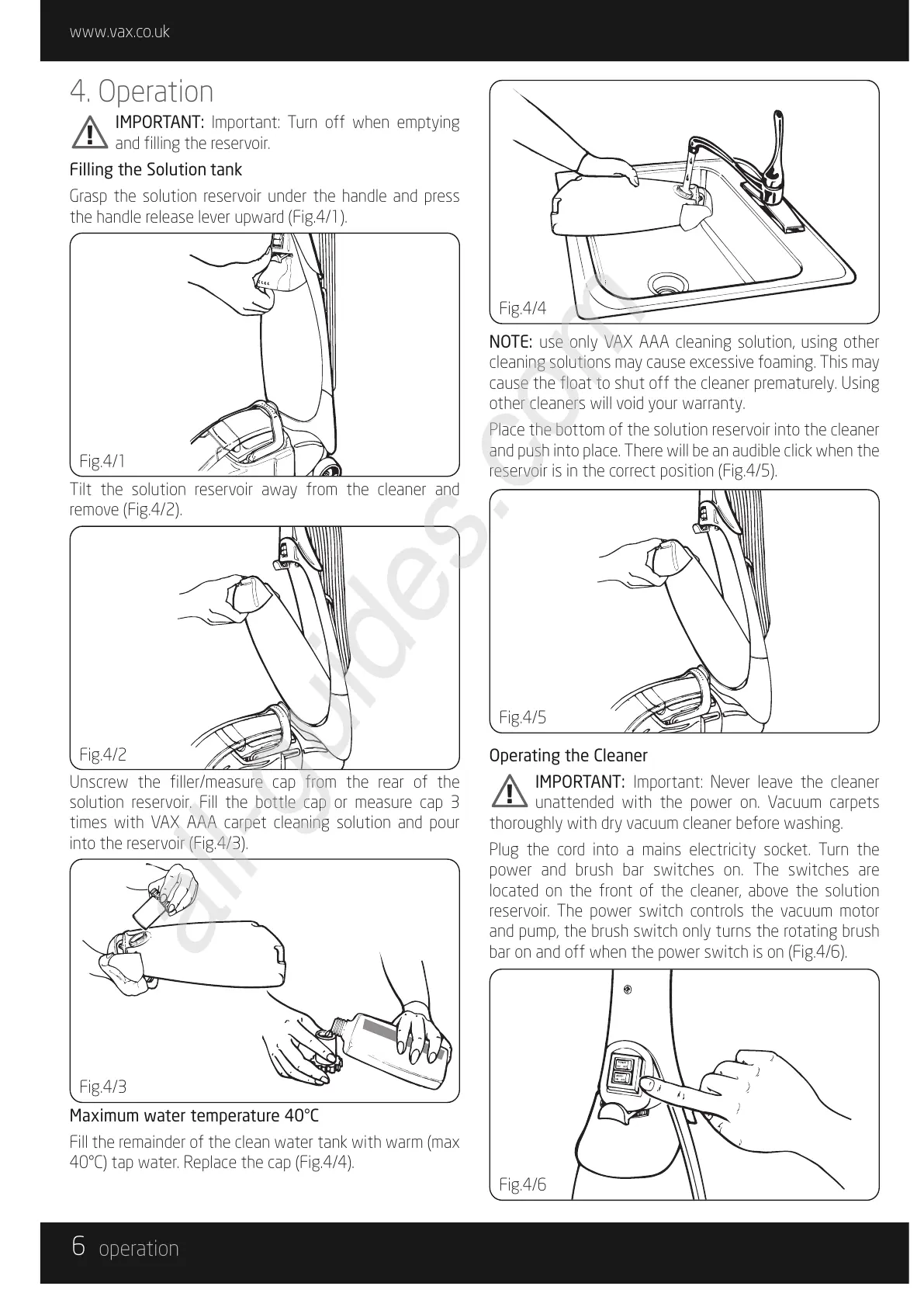

4. Operation
IMPORTANT: Important: Turn off when emptying
and filling the reservoir.
Filling the Solution tank
Grasp the solution reservoir under the handle and press
the handle release lever upward (Fig.4/1).
Tilt the solution reservoir away from the cleaner and
remove (Fig.4/2).
Unscrew the filler/measure cap from the rear of the
solution reservoir. Fill the bottle cap or measure cap 3
times with VAX AAA carpet cleaning solution and pour
into the reservoir (Fig.4/3).
Maximum water temperature 40°C
Fill the remainder of the clean water tank with warm (max
40°C) tap water. Replace the cap (Fig.4/4).
NOTE: use only VAX AAA cleaning solution, using other
cleaning solutions may cause excessive foaming. This may
cause the float to shut off the cleaner prematurely. Using
other cleaners will void your warranty.
Place the bottom of the solution reservoir into the cleaner
and push into place. There will be an audible click when the
reservoir is in the correct position (Fig.4/5).
Operating the Cleaner
IMPORTANT: Important: Never leave the cleaner
unattended with the power on. Vacuum carpets
thoroughly with dry vacuum cleaner before washing.
Plug the cord into a mains electricity socket. Turn the
power and brush bar switches on. The switches are
located on the front of the cleaner, above the solution
reservoir. The power switch controls the vacuum motor
and pump, the brush switch only turns the rotating brush
bar on and off when the power switch is on (Fig.4/6).
Fig.4/2
Fig.4/6
Fig.4/4
Fig.4/3
Fig.4/5
Fig.4/1
