5
V
ax Careline 0870 606 1248
assembly

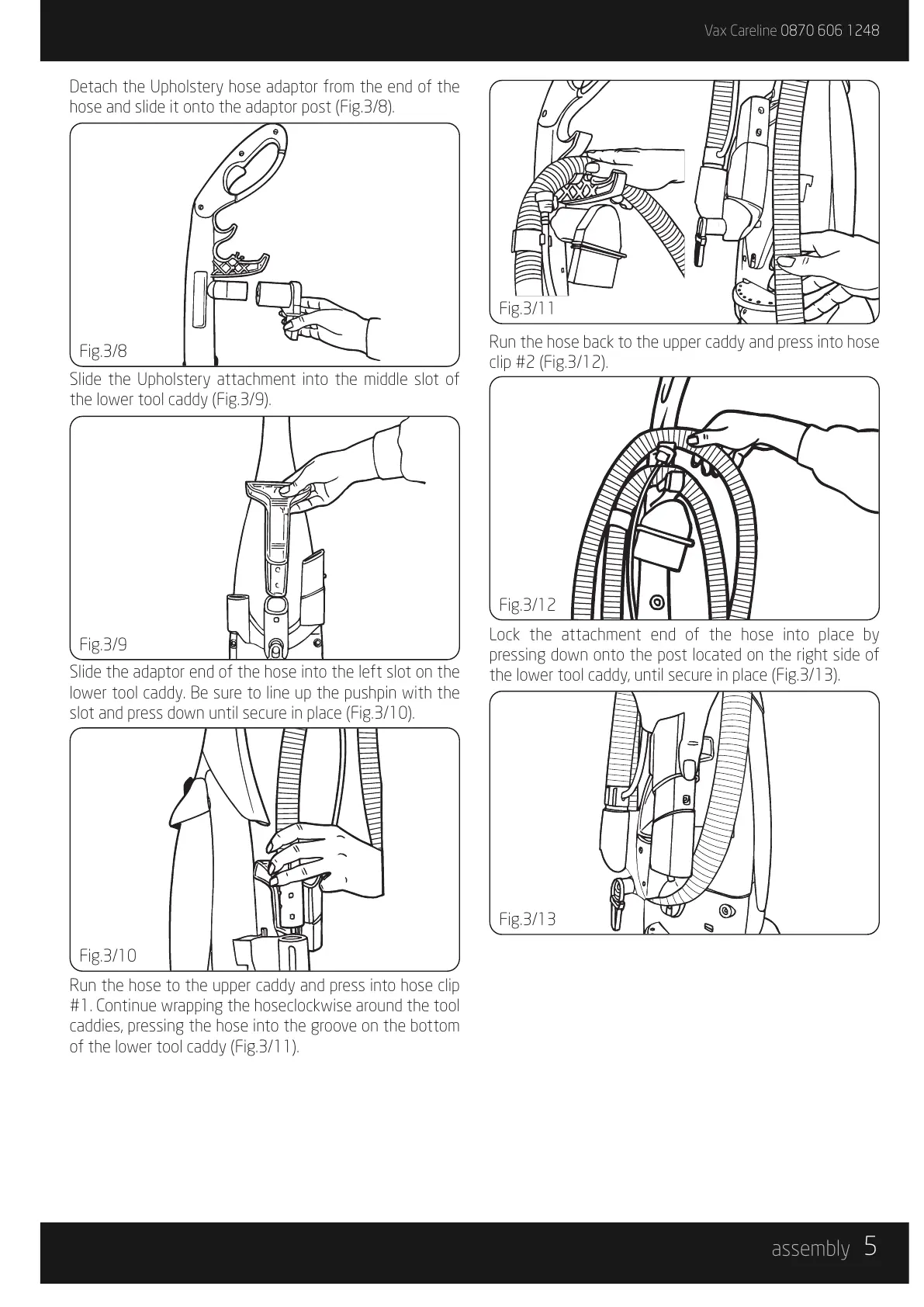

Detach the Upholstery hose adaptor from the end of the
hose and slide it onto the adaptor post (Fig.3/8).
Slide the Upholstery attachment into the middle slot of
the lower tool caddy (Fig.3/9).
Slide the adaptor end of the hose into the left slot on the
lower tool caddy. Be sure to line up the pushpin with the
slot and press down until secure in place (Fig.3/10).
Run the hose to the upper caddy and press into hose clip
#1. Continue wrapping the hoseclockwise around the tool
caddies, pressing the hose into the groove on the bottom
of the lower tool caddy (Fig.3/11).
Run the hose back to the upper caddy and press into hose
clip #2 (Fig.3/12).
Lock the attachment end of the hose into place by
pressing down onto the post located on the right side of
the lower tool caddy, until secure in place (Fig.3/13).
Fig.3/8
Fig.3/9
Fig.3/10
Fig.3/12
Fig.3/13
Fig.3/11
