3. How to Assemble
IMPORTANT: Always unplug the vacuum cleaner
from the electrical outlet before assembling or
removing the accessories.
Tool required: Phillips screwdriver
Insert the flexible hose into the inlet on the main body of
the vacuum cleaner. Push in until it clicks into position
(Fig.3/1).
Push the telescopic tube onto the end of the handle
(Fig.3/2).
The telescopic tube can be lengthened or shortened by
pushing the button in and sliding the tube apart or
together as required (Fig.3/3).
4. Fit the combination floor head by pushing on to the
telescopic tube tube (Fig.3/4).

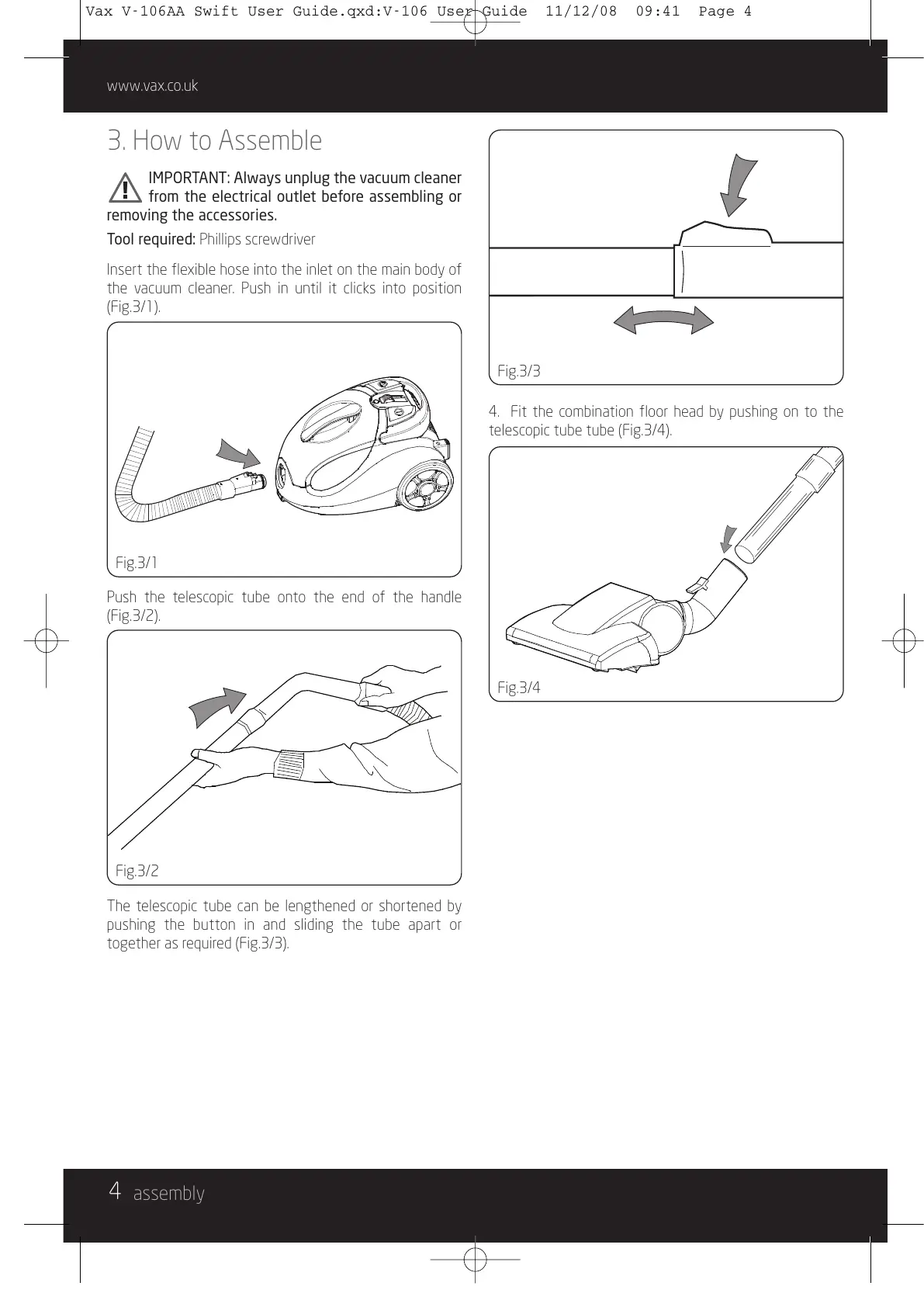

Fig.3/1
Fig.3/4
Fig.3/2
Fig.3/3
!
