This document provides comprehensive instructions and warranty information for the Vaxcel Ceiling Fan, Model No. F0011. It covers safety guidelines, installation steps, operational features, troubleshooting, and maintenance, ensuring users can safely and effectively install and operate their ceiling fan.

Function Description:

The Vaxcel Ceiling Fan, Model F0011, is designed to provide air circulation and illumination in residential settings. It features a multi-speed fan with reversible blade direction for year-round use (forward for cooling in summer, reverse for circulating warm air in winter). The fan also includes an integrated light kit with four 4W E12 (C) Base B11 Type LED Bulbs, offering ambient lighting. The fan and light functions are controlled by a remote control set, which includes a receiver, transmitter, and battery, allowing for convenient operation from a distance. The remote control features memory function setting, meaning the fan will operate at the last used speed and the light will stay at the last status when power is restored. The fan supports dual mount installation, including sloped ceiling mount up to 23 degrees. A dynamic blade balancing kit is included to address any wobbling issues that may arise during operation.

Important Technical Specifications:

Model Number: F0011
Fan Weight: 21.1 lb (9.6 kg)
Blade Clearance: Minimum 7 feet (2.1 meters) from the floor.
Wall Clearance: Minimum 18 inches (0.5 meters) from blade tip to wall.
Mounting: Designed for mounting to an outlet box marked "Acceptable for Fan Support."
Downrod Length: Includes a 6" downrod.
Light Kit: Integrated, uses four 4W E12 (C) Base B11 Type LED Bulbs.
Remote Control: 4-key unit code SUR Switch for pairing transmitter and receiver. Supports multiple fans with different codes to avoid interference.
Sloped Ceiling Mount: Up to 23 degrees.
Electrical Requirements: Must be installed in accordance with the National Electrical Code, ANSI/NFPA 70-1999, and local codes. Requires a main fuse or circuit breaker box for power shut-off.
Dimensions (with 6" Downrod):
- A: 18"
- B: 16-1/2"
- C: 2-1/4"
- D: 12-1/4"
- E: 6"
- F: 56"

Usage Features:

Remote Control Operation: The fan and light are controlled via a wireless remote.
- Fan Speed Control: "HI," "MED," "LOW" buttons for high, medium, and low speeds, respectively. "OFF" button to turn the fan off.
- Light Control: "UP/L" button to quickly turn on/off the light and to adjust illumination (dimmer) by pressing and holding. "DOWN/L" button to quickly turn on/off the light and to adjust illumination (dimmer) by pressing and holding.
- Memory Function: The remote controller retains the last fan speed and light status when power is turned off and on.
Reversible Blade Direction: A slide switch on the fan allows users to select between "Forward" (left) for cooling and "Reverse" (right) for circulating warm air. The fan must be turned off and blades stopped completely before changing direction.

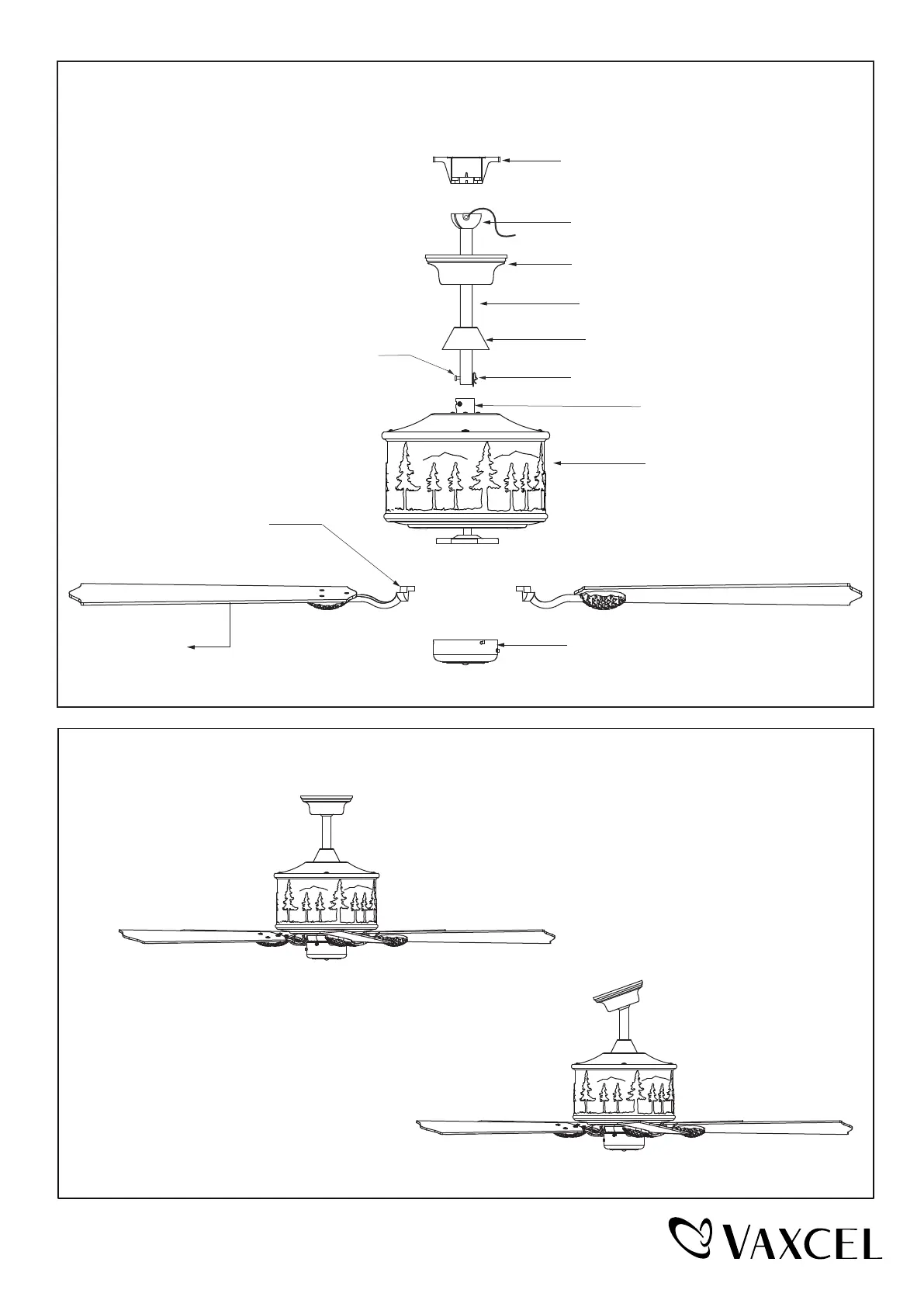

Dual Mount Capability: Can be installed with a standard downrod or on a sloped ceiling (up to 23 degrees).
Safety Cable Hook: Included for additional security during installation.

Maintenance Features:

Pre-Installation Checks: Users are instructed to check and retighten all set screws before installation to ensure stability.
Blade Balancing Kit: A dynamic blade balancing kit is provided to correct wobbling issues. The process involves identifying the wobbling blade, attaching a plastic clip to find the optimal position, and then applying a balancing weight to the blade's centerline.
Troubleshooting Guide: A detailed guide helps users diagnose and resolve common issues such as the fan not starting, noisy operation, wobbling, or light malfunction. This includes checking electrical connections, screw tightness, blade levels, and light bulbs.
Bulb Replacement: Instructions are provided for replacing the 4W Type B11 E12 LED Bulbs. This involves opening the inner light plate, removing the old bulb, installing the new one, and securing the light plate.
Cleaning: The manual advises against bending blade brackets when cleaning the fan and warns against inserting foreign objects between rotating fan blades.
Warranty: The product comes with an "ORIGINAL VAXCEL CEILING FAN LIMITED LIFETIME WARRANTY" for residential use by the original purchaser.
- Fan Motor: Lifetime warranty against defects in material or workmanship. Replacement part provided free of charge. Labor to repair defects is covered for one year from the original sale date; after one year, labor costs are the responsibility of the purchaser. If no replacement parts are available, the original purchase price will be refunded.
- Blades and Accessories (excluding glass globes and light bulbs): One-year warranty against defects in material and workmanship. Repair or replacement free of charge, excluding take down/reinstallation services.
- Integrated LED Modules: 5-year warranty for functionality.
- Warranty Voidance: Becomes void if the original purchaser ceases to own the fan, or for defects caused by unauthorized repairs, improper installation, modifications, damage, unreasonable use, or failure to provide necessary maintenance. Excludes extreme acts of nature, unsuitable environmental conditions, improper power supply, power surges/dips, and normal corrosion in coastal locations.
- Limitations: Does not cover glass globes, light bulbs, or finish on metal parts. Limited to the cost of the product only and does not extend to transportation, installation, or replacement costs.
- Service: Warranty service can be obtained by contacting info@vaxcel.com or calling 1-800-482-9235.
