Motor Wires
Thread the motor wires through the
canopy, downrod stand cover and
downrod.

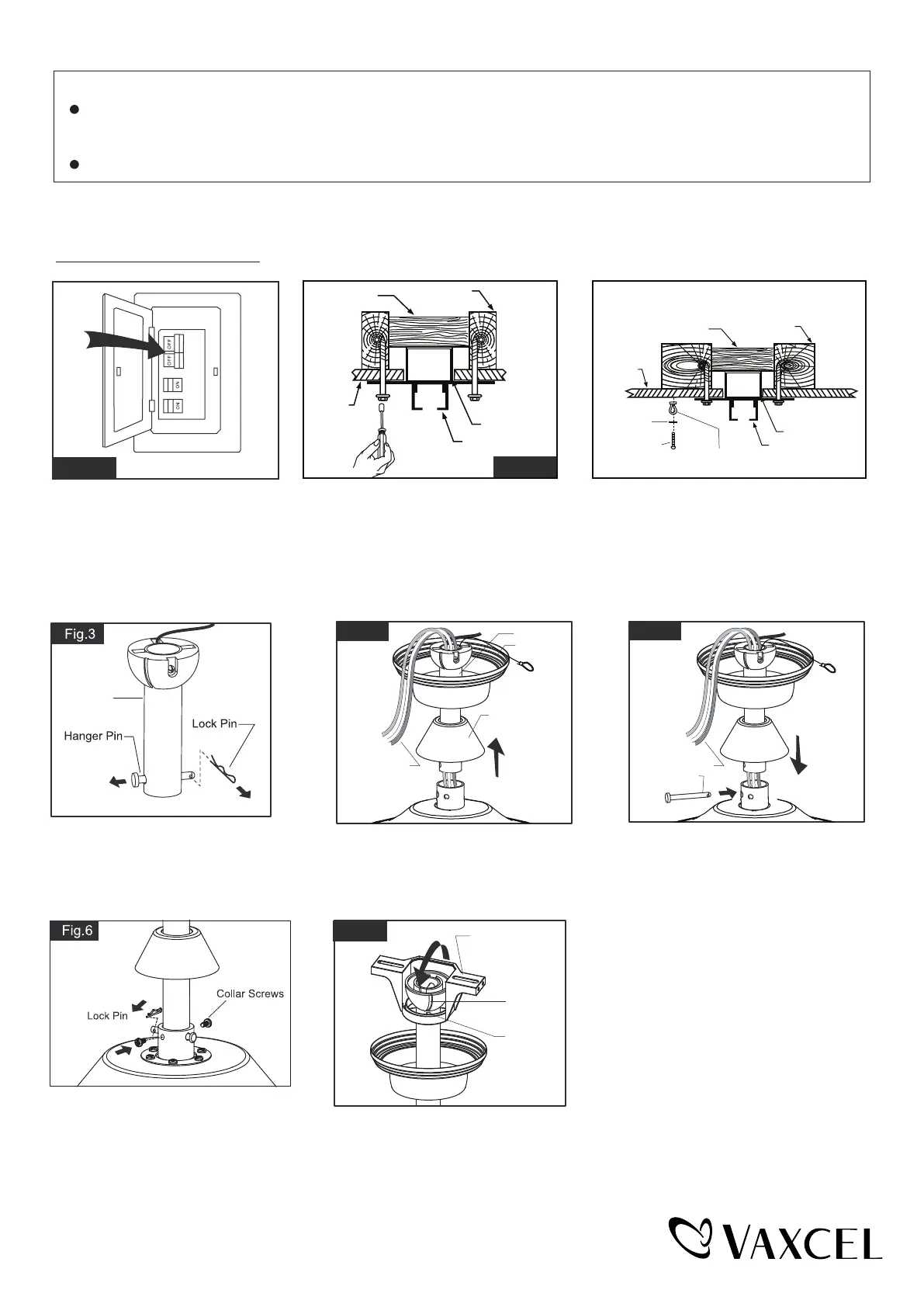

Installation Steps :
INSTALLATION INSTRUCTIONS
IMPORTANT:
BEFORE YOU BEGIN INSTALLING THE FAN, CAREFULLY READ ALL INFORMATION IN THE SEPARATE
SHEET "SAFETY INSTRUCTIONS" AS WELL AS THE FOLLOWING "INSTALLATION INSTRUCTIONS". IF IN
DOUBT, CONSULT A QUALIFIED ELECTRICIAN.
SAVE ALL INSTRUCTIONS.
NOTE: The fan weight is 21.1 lb (9.6 kg). Be sure the outlet box you are using is securely attached to the building structure
and can support the full weight of the fan. Failure to do so can result in serious injury.
Hang the fan on hanger bracket,
and make sure the slot of hanger
ball is snapped into the chip of
hanger bracket exactly.
Note: For sloped ceiling installation,
make sure the slot of hanger ball
and the chip of hanger bracket
face down.
Fig.1
Turn off the electric circuit at the
main fuse or circuit breaker box.
Slot
Chip
Hanger Bracket
Fig.7
Insert the downrod into the collar.
Slide hanger pin through holes of
collar and downrod.
Fig.5
Motor Wires
Downrod
Downrod Stand
Cover
Canopy
Fig.4
Hanger Pin
Tighten the hanger bracket to the outlet box with two mounting screws.(Make sure the
outlet box is securely installed so that it will be able to support at least the fan weight.)
Attach the safety cable hook to the ceiling with the drywall screw and washer, and make
sure the safety cable hook is covered by the fan canopy.
WARNING: MOUNT ONLY TO AN OUTLET BOX MARKED "ACCEPTABLE FOR
FAN SUPPORT"!
Washer
Safety Cable Hook
Drywall Screw
Ceiling
Hanger Bracket
Ceiling Joist
Wood Member
(2" x 4" Approx.)
Junction Box
Fig.5.
Ceiling
Hanger Bracket
Ceiling Joist
Wood Member
(2" x 4" Approx.)
Junction Box
Fig.2
Remove the lock pin from hanger
pin and remove the hanger pin
from the downrod.
Downrod
Tighten the two collar screws.
Slide lock pin into hanger pin
until it is locked into position.
PAGE: 4 / 10
230518
To Next Page
