Vaxcel Yosemite - Final Assembly and Operation; Blade Bracket and Switch Box Assembly; Fan Direction and Power On; Remote Control Operation Functions

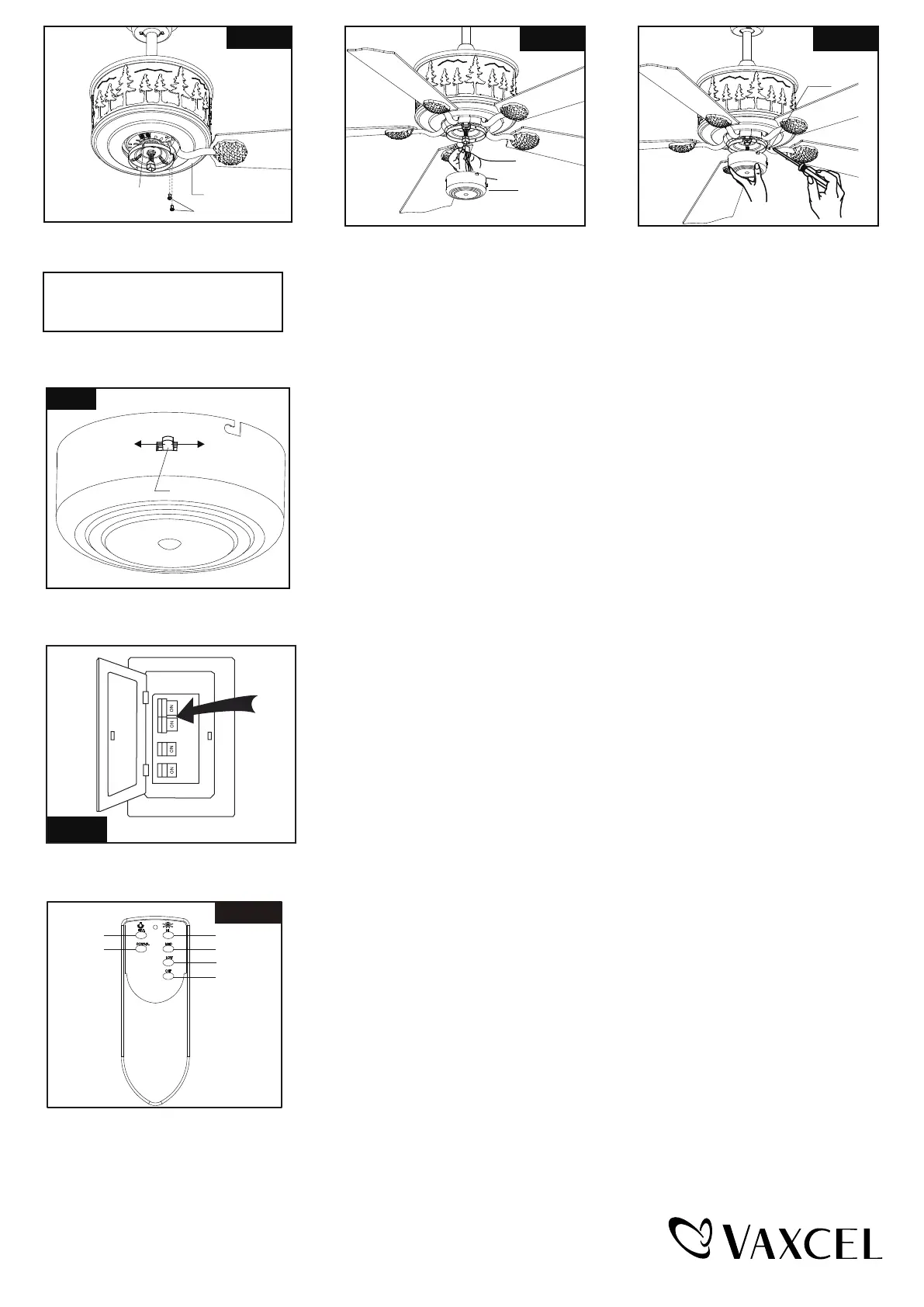

NOTE: Before installing blade
brackets to the motor, please
remove the plastic inserts.
Secure blade brackets to the motor with
motor screws and washers.
Assembly without fan light
Make sure the lead wire of fan light
in switch box is sealed with a wire
connector exactly. Secure the switch
box cover with the switch box screws.
Plastic Insert
Fig.13
Motor Screw
Blade Bracket
Fig.15Fig.14
Switch Box
Screw
Connect the two terminals respectively
from the motor and the switch box.
Switch Box
Fig.17
Turn ON the electric circuit at the main fuse or circuit breaker box.
The slide switch sets the direction of fan rotation. Select the direction
of fan rotation you need by sliding the switch. Push the slide switch left
for "Forward" and right for "Reverse".
Fig.16
Slide Switch
Reverse
Forward
HI
OFF
U/L
D/L
MED
HI
OFF
U/L
D/L
LOW
Fig.18
UP / L
DOWN / L
HI
LOW
OFF
MED
Install the battery (9V, included) into the transmitter.
Turn on the electric circuit.
Press "HI" button to
operate the fan in high speed.
Press "MED" button to
operate the fan in medium speed.
Press "LOW" button to
operate the fan in low speed.
Press "OFF " to turn the fan off.
Press and release the "UP/L" button quickly to turn on/off the light.
Press and hold the "UP/L" button to adjust the illumination of light with the dimmer switch.
Press and release the "DOWN/L" button quickly to turn on/off the the light.
Press and hold the "DOWN/L " button to adjust the illumination of light with the dimmer switch.
Note: This remote controller has memory function setting. The fan will operate at
the same speed and the fan light will stay at the same status as the last time the
power supply was turned off.
