PEDAL MODE
Power on the bike and set the PAS gear to 0. The bike will now function as normal but
still display information. The bike can also be used with the display powered off.
WALK-ASSIST MODE
The bike will drive at a speed of 6 km/h. This mode can be used to push the bike up a steep
hill or to drive slowly without pedalling.
BIKES WITH HAND THROTTLE
The hand throttle can be used to drive up to 6 km/h.
USING THE E-BIKE
Before using the e-bike, you should be aware of several dangers. Please read the
following section carefully if you are a beginner or riding the e-bike for the rst time.
SEAT HEIGHT
When seated, adjust the height so your foot can rest on the lowest pedal position. For the
optimal cycling position, there should be space to bend your knee slightly.
WARNING: Be careful not to move the seat bar over or under the maximum/minimum
markings. See seat post markings. |||||||||||||

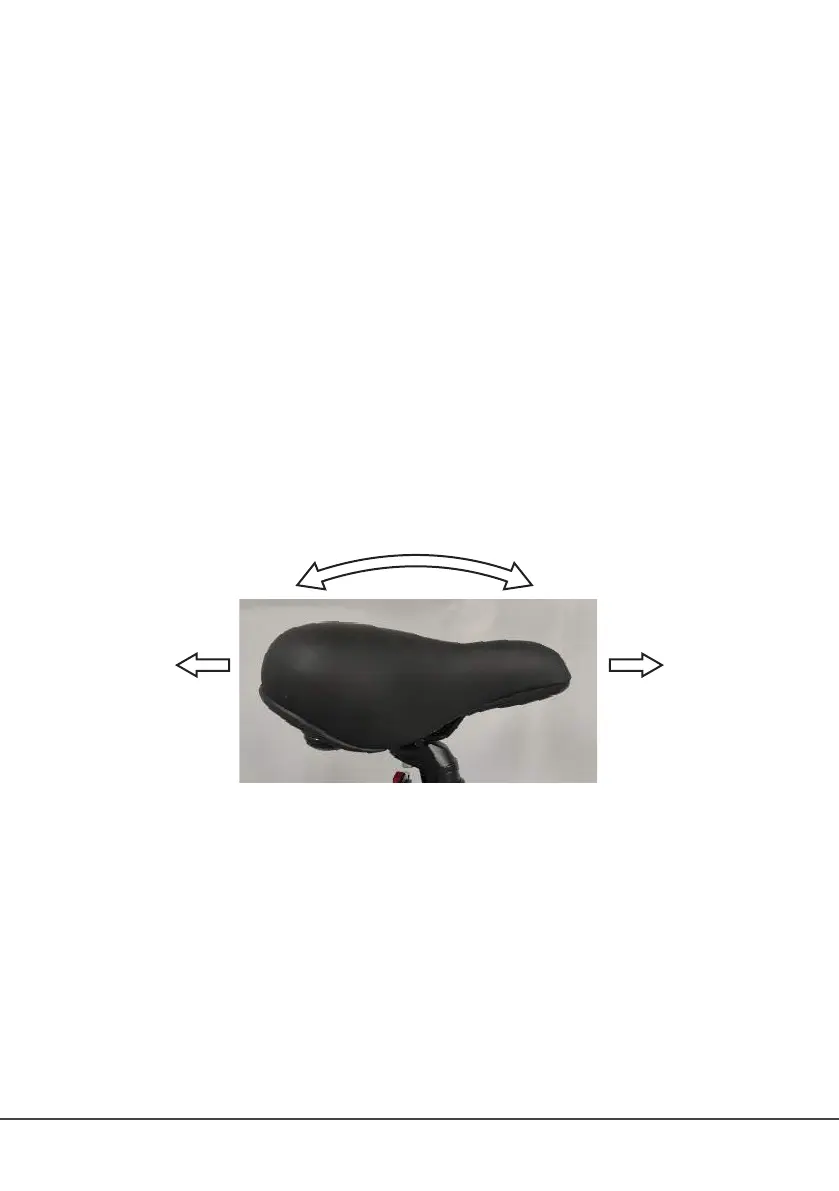

SEAT ADJUSTMENT
You can release the bolt under the seat to adjust the seat angle or horizontal position.
Remember to tighten the bolt after adjusting the seat. Use two wrenches to tighten the
seat, one on each side of the seat.
STEM HEIGHT
Adjust the stem height to your preferred position.
WARNING: Be careful not to move the stem over or under the maximum/minimum
markings. See stem markings. |||||||||||||
HAND BRAKES
The right hand brake is for braking the rear wheel.
The left hand brake is for braking the front wheel.
TIGHTENING OF FASTENERS
Be sure to tighten the adjustment screws, so there is no risk of the seat sliding down, the
