2.17 Electrical System
The electrical system consists of the following:
a) alternator 6V, 60W
b) Led-battery 6V, 8Ah (K20)
c) Ignition coil
d) Cntroller switch
e) Ignition and lightswitch
f) Circuit breaker and condenser (mounted on the holding cap of the alternator)
g) Sparkplug (in Cylinder head)
h) Headlight (Hi beam, low beam and parking light)
i) Charging control lamp (red, on the lefthandside of the controlpanel)
j) Neutral gear control lamp (green, on the lefthandside of the controlpanel)
k) Control lamp for Supercharger (orange, on the righthandside of the controlpanel)
l) Signal horn
m) Brake-, tail- and licenseplate lamp
n) Wiring harness
o) Control lamp (unused. Can be used for Hi-beam display for instance)

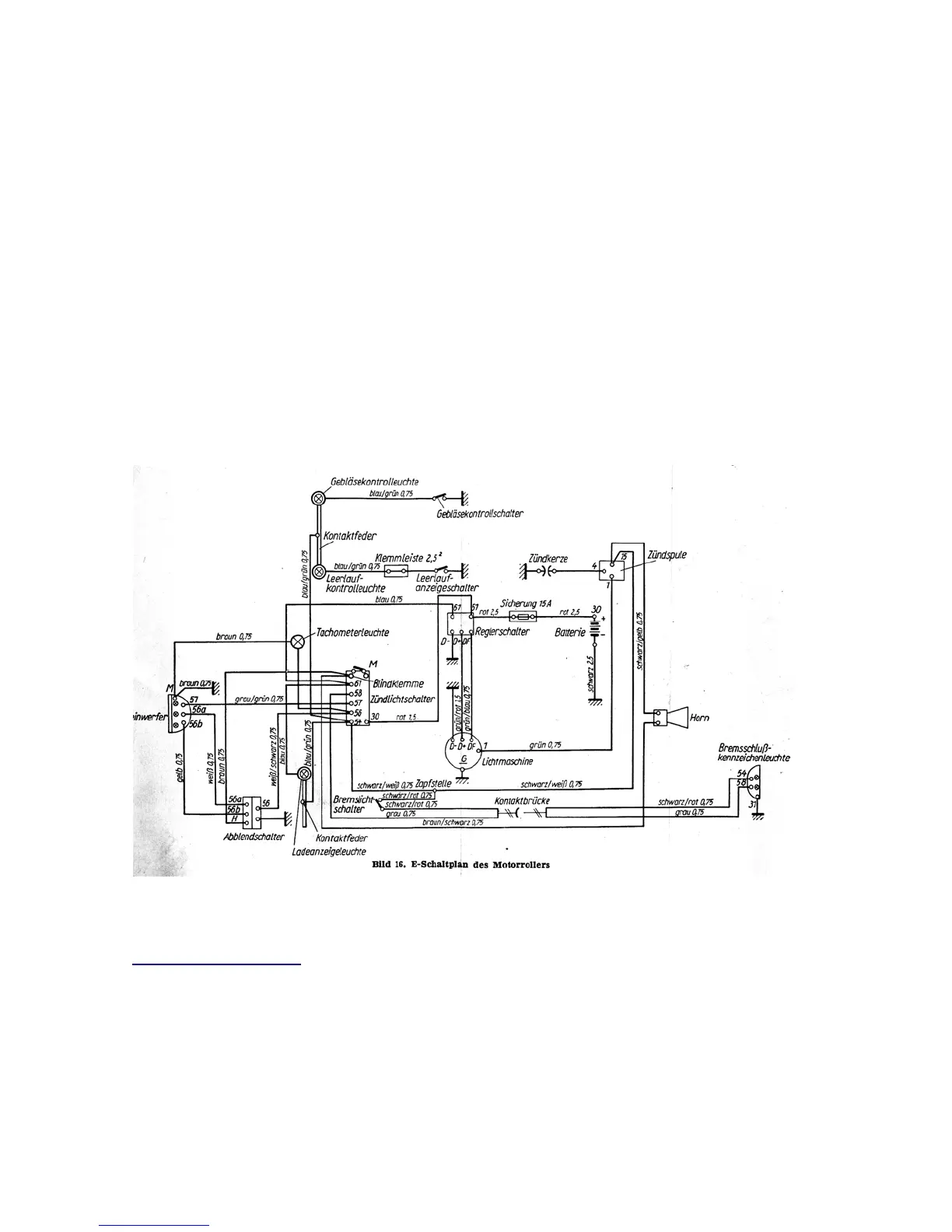

Image 16. Wiring diagram
Suggestion: A more detailed and colored version of the wiring diagram can be downloaded from
our website at
www.scooterstation.com
