3.108 Rear brake foot lever
The rear brake foot lever is found on the right hand side of the floor board. Pushing it down will
result in actuating the rear brake. The rear brake can be adjusted by using the adjustment screw at
the rear end of the break cable.

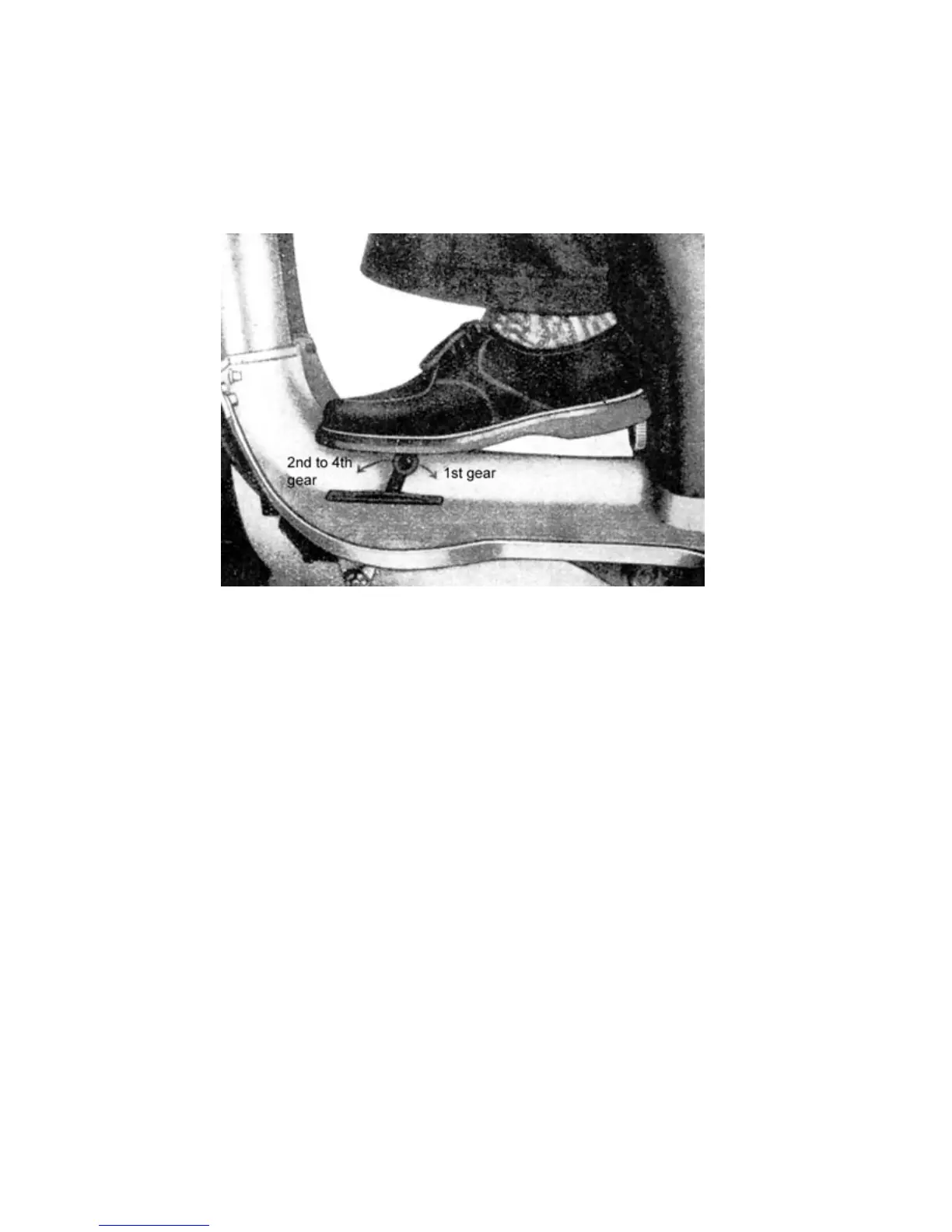

Image 57. Foot gear switch and rear brake foot lever
(1) Foot gear switch
(2) Rear brake foot lever
3.109 Front brake lever
The lever provided on the right hand side of the handle bar activates the front brake. It should be
used to support the rear brake, when slowing down. In conjunction with the rear brake, the front
brake is especially valuable on longer downhill rides due to the relocation of the center of gravity.
Using the front brake only occasionally bears the danger, that it will not function as well as it should
when it´s needed for emergency situations for instance.
