Vector 4 - Page 68

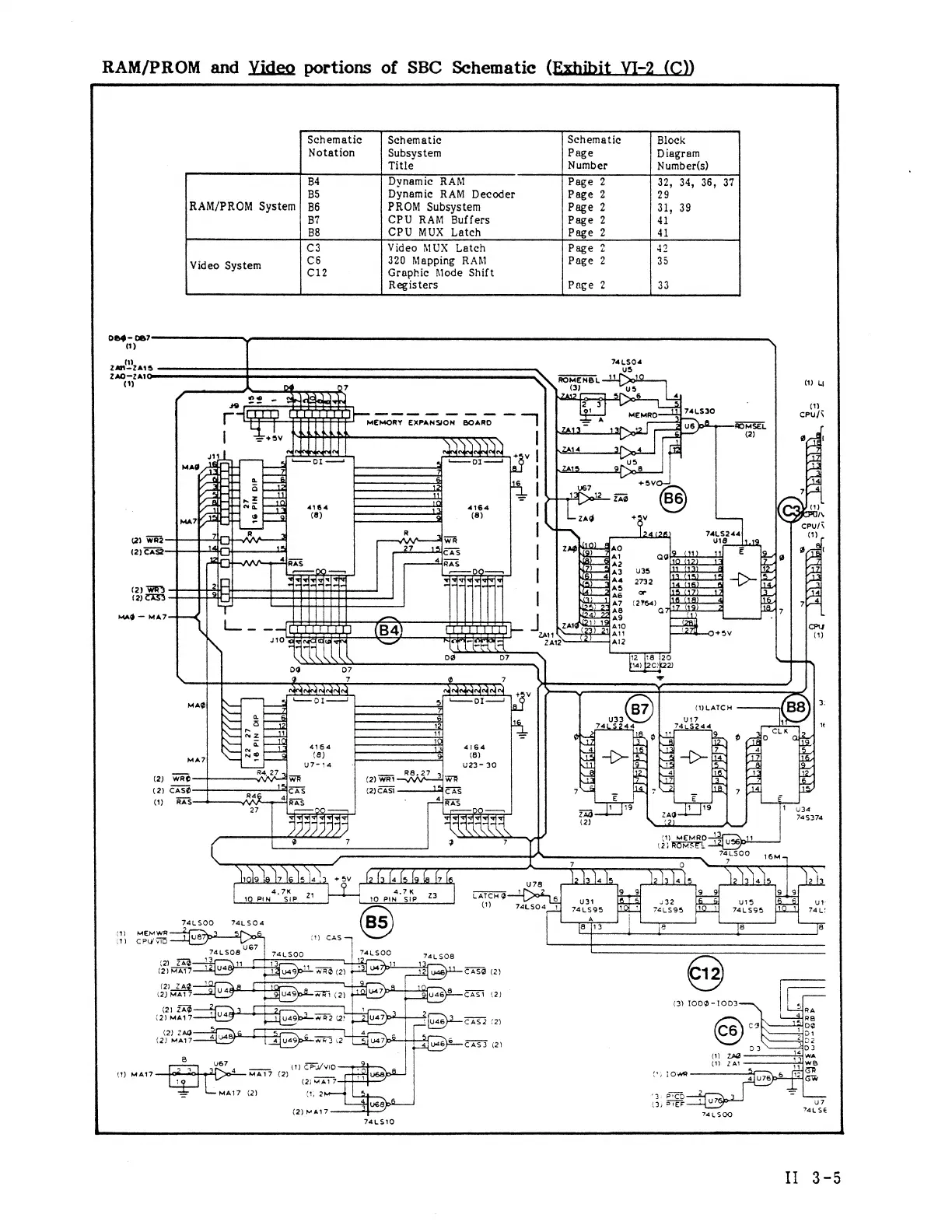

RAM/PROM and Yideo portions of SBC Schematic (Exhibit VI-2 (C))
Schematic Schematic Schematic Block
Notation Subsystem Page Diagram
Title Number Number(s)
B4 Dynamic RAM Page 2 32, 34, 36, 37
BS Dynamic RAM Decoder Page 2 29
RAM/PROM System | B6 PROM Subsystem Page 2 31, 39
B7 CPU RAM Buffers Page 2 41
B8 CPU MUX Latch Page 2 41
C3 Video MUX Latch Page 2 42
. C6 320 Mapping RAM Page 2 35
Video System C12 Graphic Mode Shift
Registers Page 2 33
