Vector START-IT VEC022DSCC User Manual

6
8
9
10
18
16
15
14
12
7
1
1
6
5
4
2
17
19
3
11
13

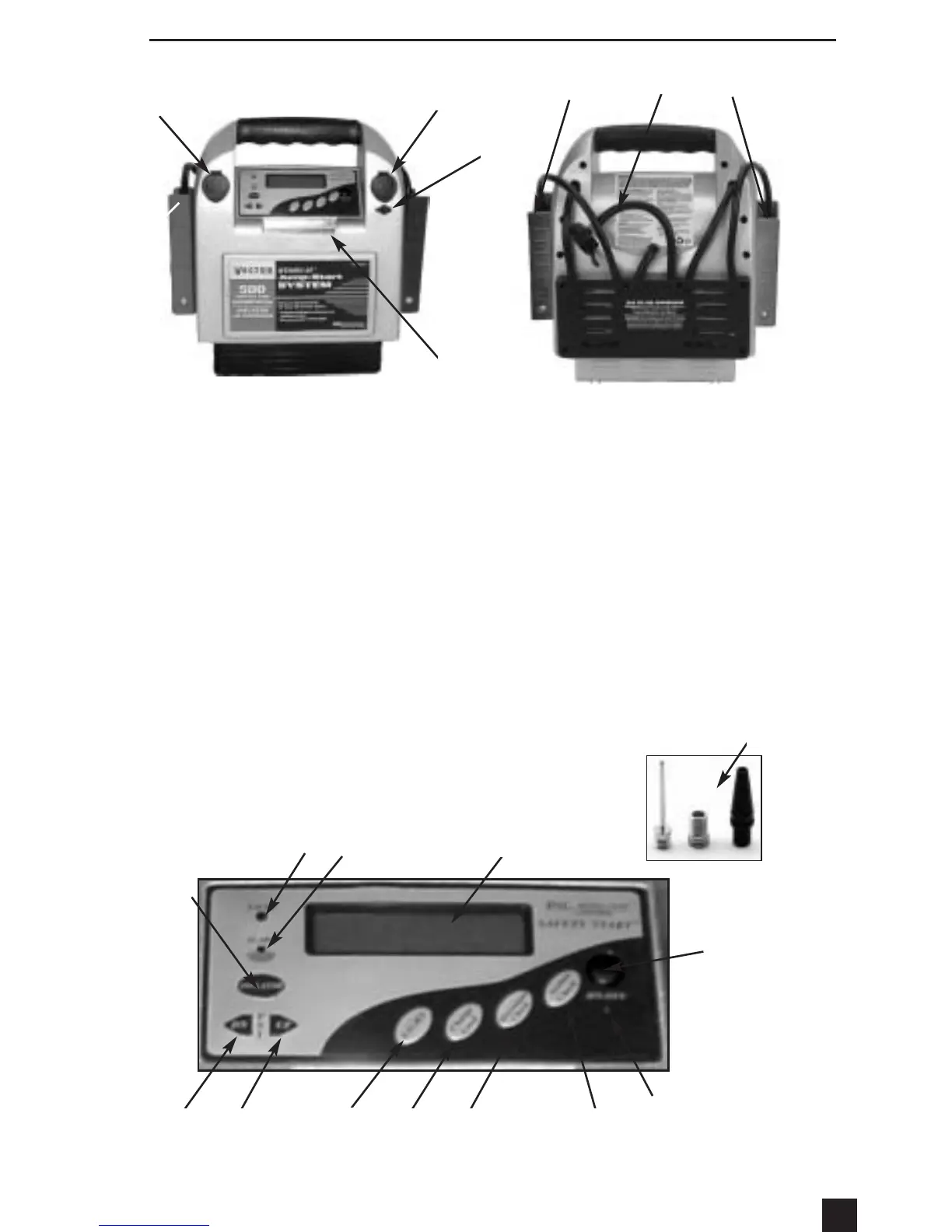

1. 12 Volt DC Outlet
2. AC Recharge Adapter Barrel
Connector Receptacle
3. Built-in Area Light
4. Negative (-) Black Clamp
5. 260 PSI Compressor Air Hose Tire
Chuck
6. Positive (+) Red Clamp
7. INFLATOR Push Button
8. FAULT LED Indicator
9. ALARM LED Indicator
10. Display
11. Display ON/OFF Push Button
12. LED Indicator
13. System Check Push Button
14. Alternator Test Push Button
15. Charge Level Push Button
16. Area Light Push Button
17. UP PSI Push Button
18. DN (down) PSI Push Button
19. Inflation Adapters (Nozzles)
Figure 1A. Front View Figure 1B. Rear View

Vector START-IT VEC022DSCC Specifications

Battery

battery type	sealed, lead-acid, rechargeable, maintenance-free, 12 volt DC
boost ampere	450 instantaneous cranking amps

Charging Adapters

DC charging adapter	12 volt DC
AC charging adapter	110/120 volt AC (700mA, 12 volt DC output)
accessory outlet	self-resetting breaker 5 amps DC

Booster Cables

booster cables	heavy duty cable
copper clamps	450 amp

Lighting

area light	cold cathode fluorescent lamp (CCFL)
