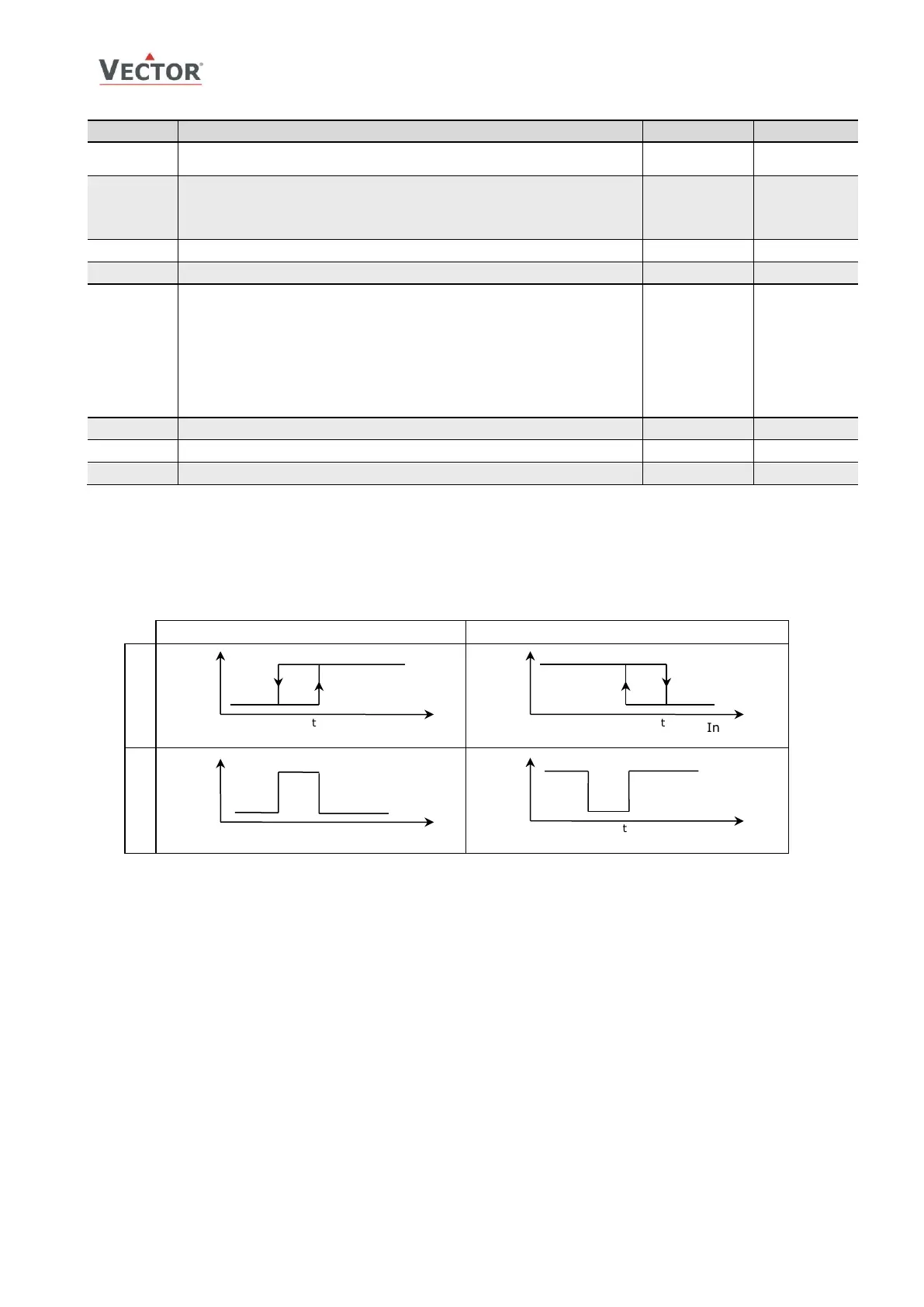

Vector TCI-W11 Series User Manual

TCI-W11, TCI-W22 Universal Controller
AUX FUNCTIONS CONFIGURATION
Doc: 70-00-0158C, V2.0-20220523 © Vector Controls GmbH, Switzerland Page 20-22
Subject to alteration
Enable/disable
Parameter
Description
Range
Default
Fu 12
Select enable–disable input (0=function disabled):
1= 1T, 2= 1H, 3= 1U, 4= 2U
0–4
0
FU 13
Manual override permitted (without waiting for delay). This function
allows starting the controller, even the enable conditions are not met.
The controller will switch off again if the running conditions are not
met until the disable delay is expired.
ON/OFF
OFF
Fu 14
Enable delay (seconds)
0–1275s
0
Fu 15
Disable delay (seconds)
0–1275s
300
Fu 16
Range of limits:
OFF = When limit 2 is greater than limit 1, enable when input value is
greater than limit 2,disable when input value is less than limit 1.
When limit 2 is less than limit 1, enable when input value less than
limit 1, disable when input value is greater than limit 2.
ON = When limit 2 is greater than limit 1enable when input value is
between limit 1 and limit 2. When limit 2 is less than limit 1, enable
when input value below limit 2 or above limit 1
ON/OFF
OFF
Fu 17
Input limit 1
per input
10
Fu 18
Input limit 2
Per input
90
Fu 19
Disable in case of alarms
Selection

➔ Enable or disable the controller based on desired input values, such as high or low temperature, occupancy sensor,
window contact, etc. Can be used as and function where several conditions must be met before disable or enable.
Time schedules do not override, but manual override is permitted. Delay times may be assigned for both enable and
disable (allows for the controller to start before validation of operation values takes place). Set input limit 1 and 2
with options below. Example: With FU16=OFF, and Limit 2 > Limit 1, switch enable-to-disable at Limit 1, disable-to-
enable at Limit 2.
Limit 2 > Limit 1
Limit 1 > Limit 2
Enable
Disable
Input
Mode
Enable
Disable
Input
Mode
FU16 = OFF
FU16 = ON
Enable
Disable
Input
Mode
Enable
Disable
Input
Mode
Limit
1
Limit
2
Limit
2
Limit
1
Limit
1
Limit
2
Limit
2
Limit
1
