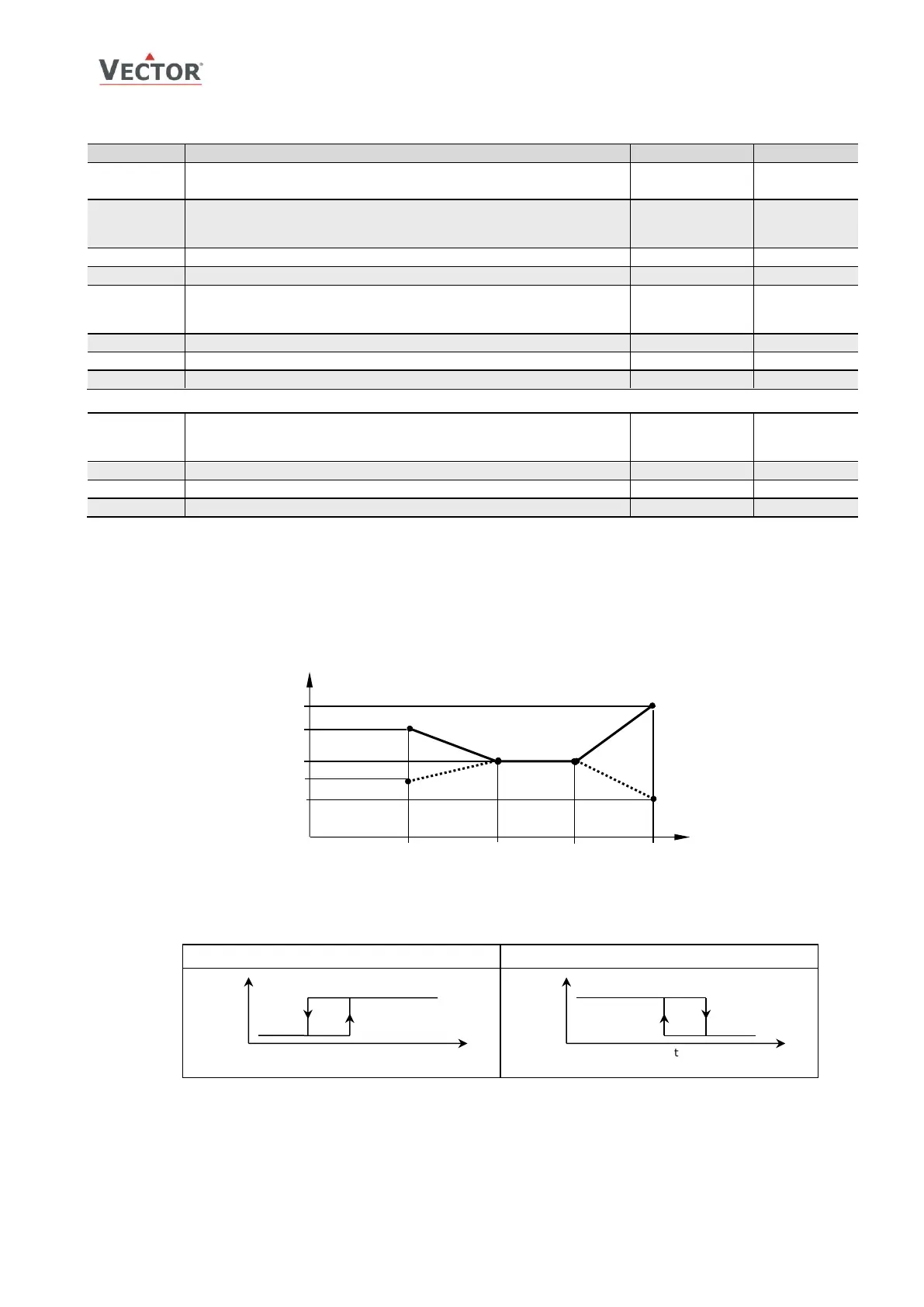

Summer – winter compensation
Parameter
Description
Range
Default
IP 22
Selection of compensation input
OFF = thermistor input TI
ON = analog input AI
ON, OFF
OFF
IP 23
Winter compensation:
OFF = negative
ON = positive
ON, OFF
OFF
IP 24
Winter compensation lower Limit
-40…215 °C
-30 °C
(-22 °F)
IP 25
Winter compensation upper Limit
-40…215 °C
0 °C (32 °F)
IP 26
Summer compensation: OFF = negative, ON = positive
ON, OFF
ON
IP 27
Summer compensation lower limit
-40…215 °C
30 °C (86 °F)
IP 28
Summer compensation upper limit
-40…215 °C
40 °C
(104 °F)
IP 29
Hot / cool symbol while compensation is active
OFF=hide symbol
ON= show symbol
ON, OFF
OFF
Humidity sensor configuration (-H version)
Parameter
Description
Range
Default
IP 30
Humidity sensor is control input of loop 2
ON, OFF
OFF
IP 31
Humidity sensor calibration
-10…10
0
IP 32
Samples taken for averaging control signal
1…255
10
Binary /external temperature input
Parameter
Description
Range
Default
IP 33
Function:
0 = OFF,
1 = remote disable (window contact, central control)
2 = remote standby/comfort (motion detector)
3 = heat/cool change over
4 = alarm input
0…4
0
IP 34
Delay (minutes) for binary function (set to 0 for no delay)
0…255 min
5
IP 35
Direct or reverse acting,
OFF = active when closed
ON = active when open
ON, OFF
OFF
IP 36
Auto change over limit cooling
-40…215 °C
16 °C (60 °F)
IP 37
Auto change over limit heating
-40…215 °C
28 °C (82 °F)
