Vector TCY3-T1102 Series - Page 2

TCY3-T1102 Technical Data
Doc: 70-000003 V1.0, 20150710 © Vector Controls GmbH, Switzerland Page 2
Subject to alteration
Name
C YT T 1 1 0 2 H(- ) U(- ) D(- )-3
Ordering
Model
Stock code
Variant
Mounting size
Type
Key-data
TCY3-T1102
40-10 0029
Standard
88mm x 88mm
No humidity
sensor
Compact PI controller
with:
1 TI int or ext
1 AI
2 DO (Relay)
1 AO
TCY3-T1102-D
40-10 0030
Deluxe
TCY3-T1102-U
40-10 0031
Standard
2” x 4”
TCY3-T1102-U-D
40-10 0032
Deluxe
TCY3-T1102-H
40-10 0033
Standard
88mm x 88mm
With humidity
sensor
TCY3-T1102-H-D
40-10 0034
Deluxe
TCY3-T1102-H-U
40-10 0035
Standard
2” x 4”
TCY3-T1102-H-U-D
40-10 0036
Deluxe

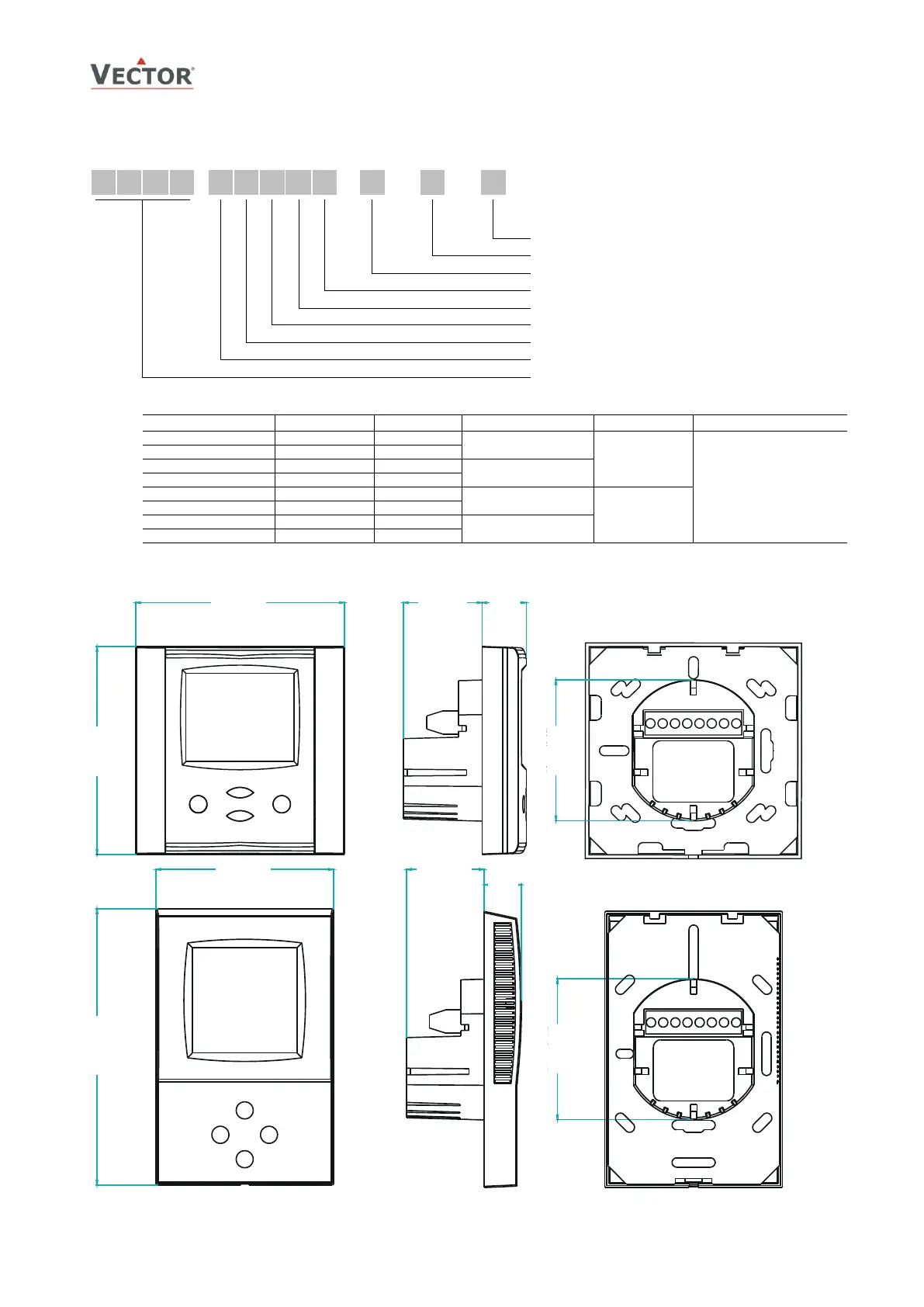

Dimensions [mm] (inch)
Deluxe version
2” x 4” housing
Integrated Humidity sensor
Number of analog outputs (AO) = 2
Number of binary output (DO) = 0
Number of analog inputs (AI) = 1
Number of binary inputs (DI) = 1
With external temperature input (RT)
Series (TCY3)
88 (3.5)
32 (1.2)
21
(0.8)
88 (3.5)
58 (2.3)
58 (2.3)
112 (4.4)
73 (2.9)
32 (1.2)
15
(0.6)
