TCY3-T1102 Technical Data
Doc: 70-000003 V1.0, 20150710 © Vector Controls GmbH, Switzerland Page 3
Subject to alteration
Technical specifications
Power supply
Operating voltage
24 V AC/DC ± 10 %, 50…60 Hz
Power consumption
Max. 3 VA

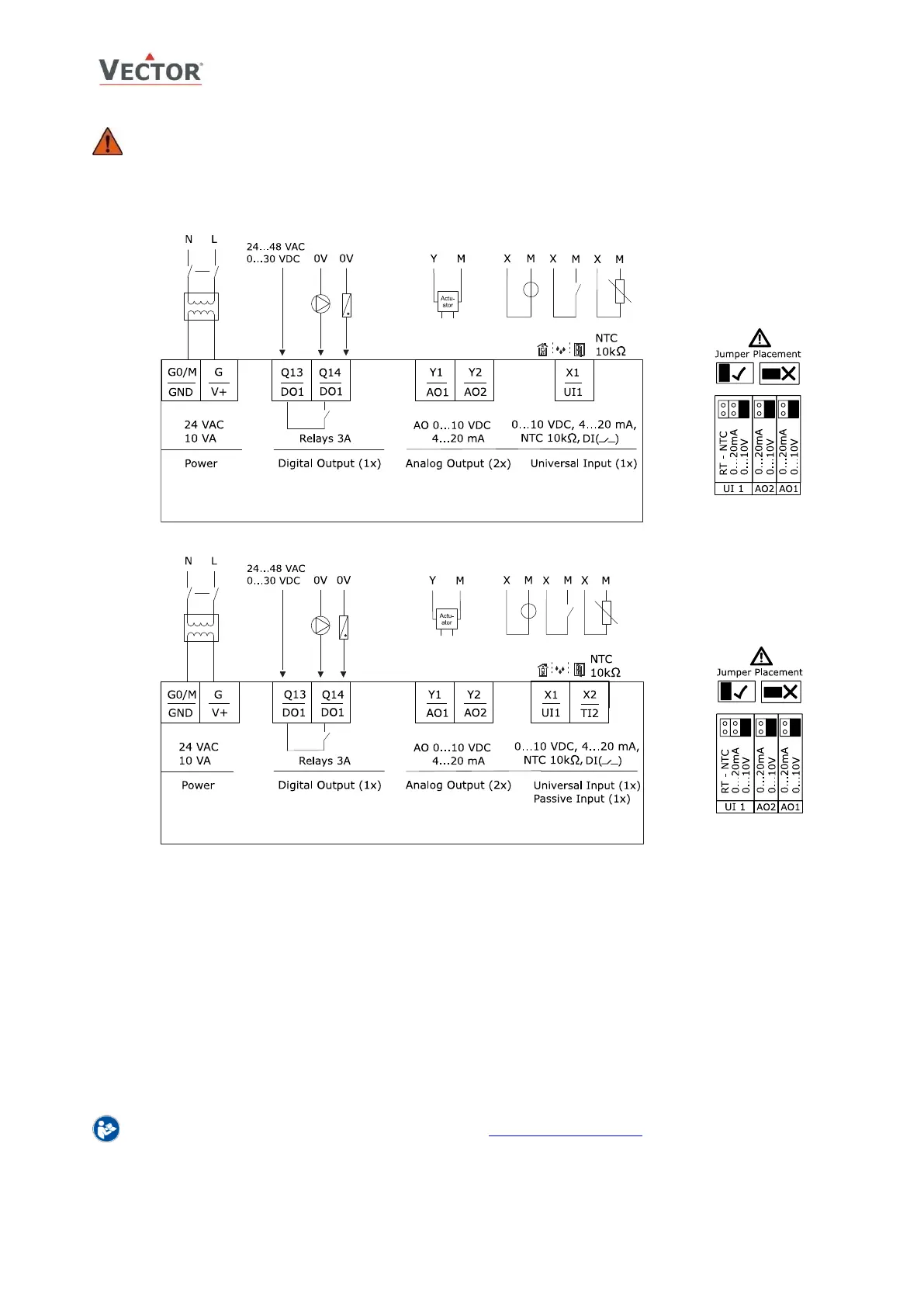

Electrical connection
Terminal connectors, wire 0.34…2.5 mm
2
(AWG 24…12)
Internal rectification:
Signal ground = power ground
Half wave rectified
Security transformer required
Clock backup
24 hours (deluxe version only)
Signal inputs
Analog input
Input signal
Resolution
Impedance
AI1
0...10 V, 0...5 V or 0...20 mA
9.76 mV resp. 0.019 mA (10 bit)
Voltage: 94kΩ Current: 249Ω
Temperature input
Range
Int. NTC: 0…50 °C (32…122 °F)
Ext. NTC (Sxx-Tn10 sensor): -40…140 °C (-40…284 °F)
Accuracy
-40…0 °C (-40…32 °F): 0.5 K
0…50 °C (32…122 °F): 0.2 K
50…100 °C (122…212 °F): 0.5 K
> 100 °C (> 212 °F): 1 K
Binary input
Input signal
DI1
Open Contact to Ground
Humidity input: (-H version)
Range
Accuracy at 55 % r.H.
Hysteresis
Repeatability
Stability
H1 Thermoset Polymer-Based Capacity
0…100 % r.H.
 3.0 % at 25 °C (77 °F)
 3 % between 15…90 % r.H.
 0.5 %
 0.5 % / year if used within 0…50 °C (32…122 °F)
Signal outputs
Analog outputs
Output signal
Resolution
Maximum load
AO1, AO2
DC 0...10 V or 0...20 mA
9.76 mV resp. 0.019 mA (10 bit)
Voltage: ≥1kΩ Current: ≤250Ω
Environment
Operation
Climatic conditions
Temperature
Humidity
To IEC 721-3-3
class 3 K5
0…50 °C (32…122 °F)
<95 % r.H. non-condensing
Transport & storage
Climatic conditions
Temperature
Humidity
Mechanical conditions
To IEC 721-3-2 and IEC 721-3-1
class 3 K3 and class 1 K3
-25…70 °C (-13…158 °F)
<95 % r.H. non-condensing
class 2M2
Standards
conform according to
EMC standard
89/336/EEC
EMEI standard
73/23/EEC
EN 61 000-6-1/ EN 61 000-6-3
Product standards
Automatic electrical controls for
household and similar use
Special requirement on
temperature dependent controls
EN 60 730 –1
EN 60 730 – 2 – 9
Degree of protection
IP30 to EN 60 529
Safety class
III (IEC 60536)
Cover, back part
Mounting plate
Fire proof ABS plastic (UL94 class V-0)
Galvanized steel
General
Dimensions (H x W x D)
Front part: 88 x 88 x 21 mm (3.5” x 3.5” x 0.8”)
Power case: ø 58 x 32 mm (ø 2.3” x 1.3”)
Dimensions (H x W x D), U-
version
Front part: 112 x 73 x 15 mm (4.4” x 2.9” x 0.6”)
Power case: ø 58 x 32 mm (ø 2.3” x 1.3”)
Weight (controller only)
180 g (6.3 oz)
Weight (including package)
260 g (9.2 oz)
