Vector X2 User Manual

X2-OPERATIONS MANUAL BUTTON DISPLAY
Doc: 70-00-0950A, Serie X2, 20211220 © Vector Controls GmbH, Schweiz Page 14-16
Subjects to alteration www.vectorcontrols.com
VECTOR
5.5 Display input and output states
Overview
In the input or output submenu there are 4 different display options:
UI = Display of universal inputs (view input values)
Ao = Display of analog outputs (view and set output values)
FAN = Fan display (view and set fan speeds)
do = Display of digital, 3-point or PWM outputs (view and set output signals)
Deactivated inputs are not displayed!

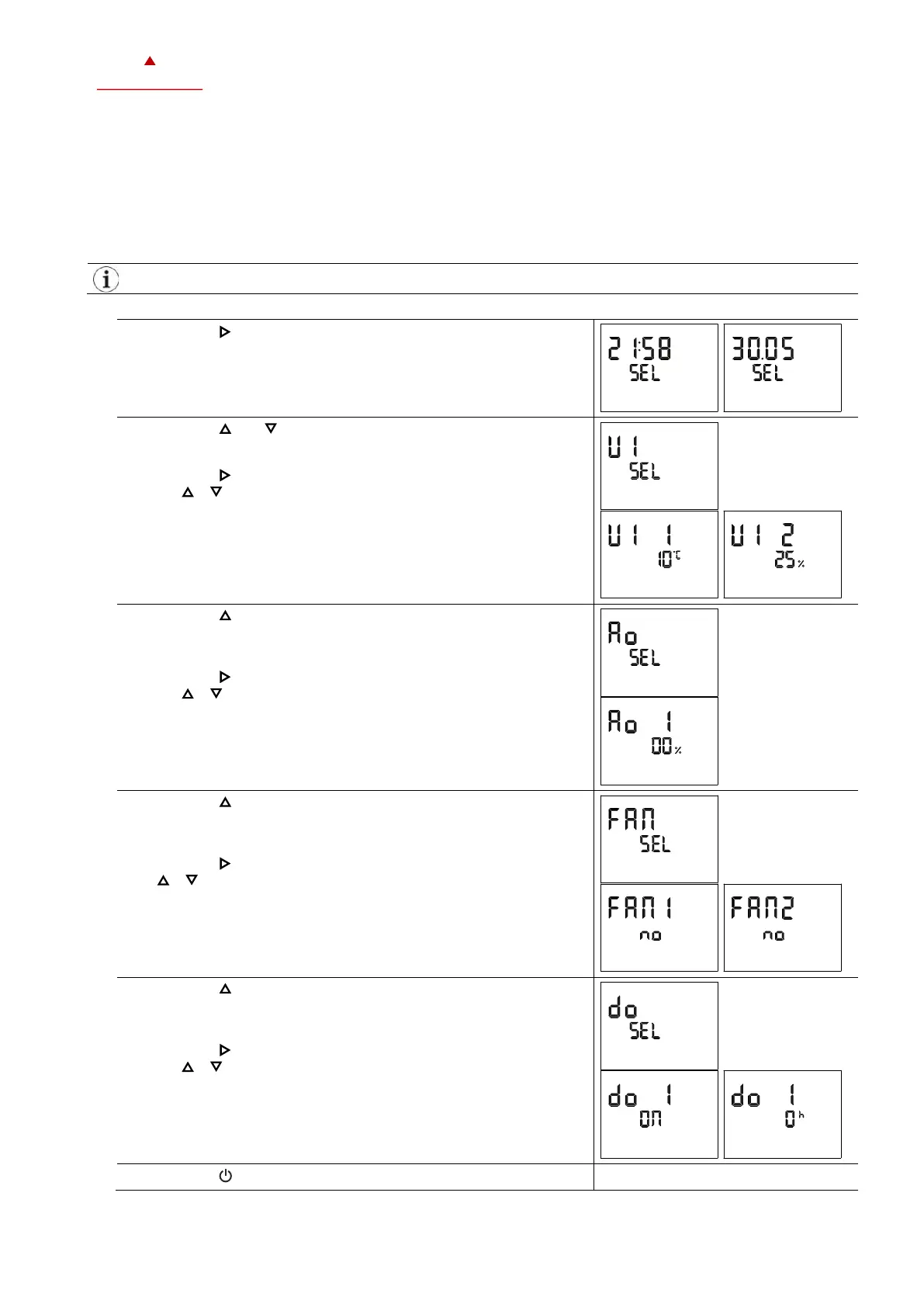

Procedure
1. Press the ( / ) button longer than 2 seconds.
➔ SEL and the actual Date and Time are displayed alternatingly.
2. Press the ( ) or ( ) button until the universal input submenu UI
and SEL is displayed.
3. Press the ( / ) button and select one of the universal inputs with
the ( ) ( ) button.
➔ U-I, the input number and the value are displayed.
4. To go back to the previous submenu, press the () button (1x).
5. Press the ( ) button to go to the analog output submenu.
➔ Ao and SEL is displayed.
6. Press the ( / ) button and select one of the analog outputs with
the ( ) ( ) button.
➔ Ao, the output number and the value are displayed.
7. To go back to the previous submenu, press the () button (1x).
8. Press the ( ) button to go to the fan output submenu.
➔ FAN and SEL is displayed.
9. Press the ( / ) button and select one of the fan outputs with the
( ) ( ) button.
➔ FAN, the output number and the value are displayed.
10. To go back to the previous submenu, press the () button (1x).
11. Press the ( ) button to go to the digital output submenu.
➔ do and SEL is displayed.
12. Press the ( / ) button and select one of the digital outputs with
the ( ) ( ) button.
➔ do, the output number and the value are displayed.
13. To go back to the previous submenu, press the () button (1x).
14. Press the ( ) button to finish the inspection.
