Veeder-Root EMR4 TLS-300 User Manual

INSTALLATION and QUICK HELP
FOR TLS CONSOLE INTERFACE TO THE
VEEDER-ROOT EMR4 DATALINK
USING AN XTEND 900 MHZ WIRELESS MODEM
577014-353 Rev. A
Veeder - Root
Page 3 of 18
2. Screw the antenna into the modem and hand tighten.

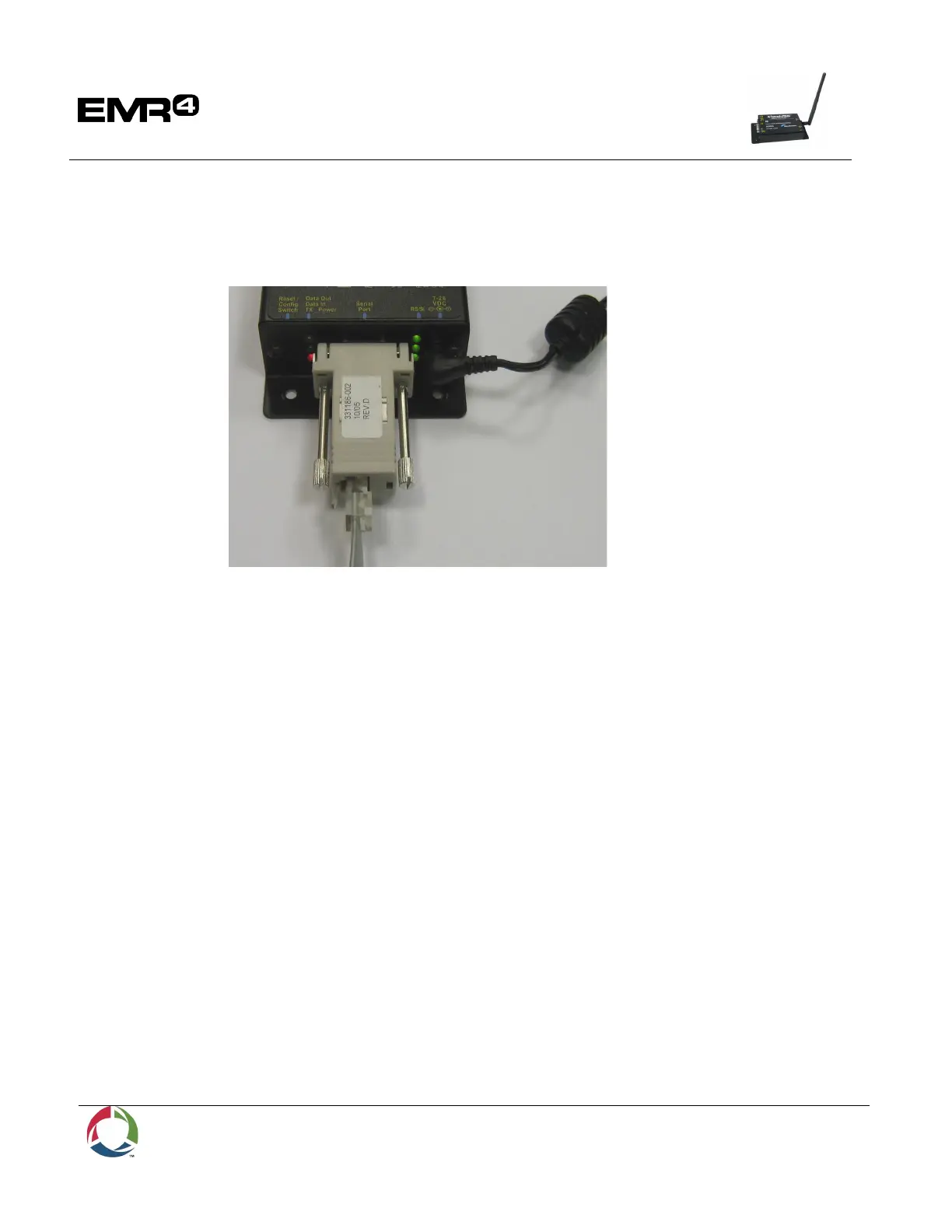

3. Connect the serial connector to the modem and plug the cable into the connector.
4. Plug the power supply into a normal 110 volt outlet. The red light on the modem will be lit.
5. The modem can sit on or near the console. If the console will be located a long distance
from the office modem, the modem should be placed as high as possible. A high-gain
antenna (kit 0845900-033) may be needed for some applications.

Veeder-Root EMR4 TLS-300 Specifications

General

Brand	Veeder-Root
Model	EMR4 TLS-300
Category	Modem
Language	English
