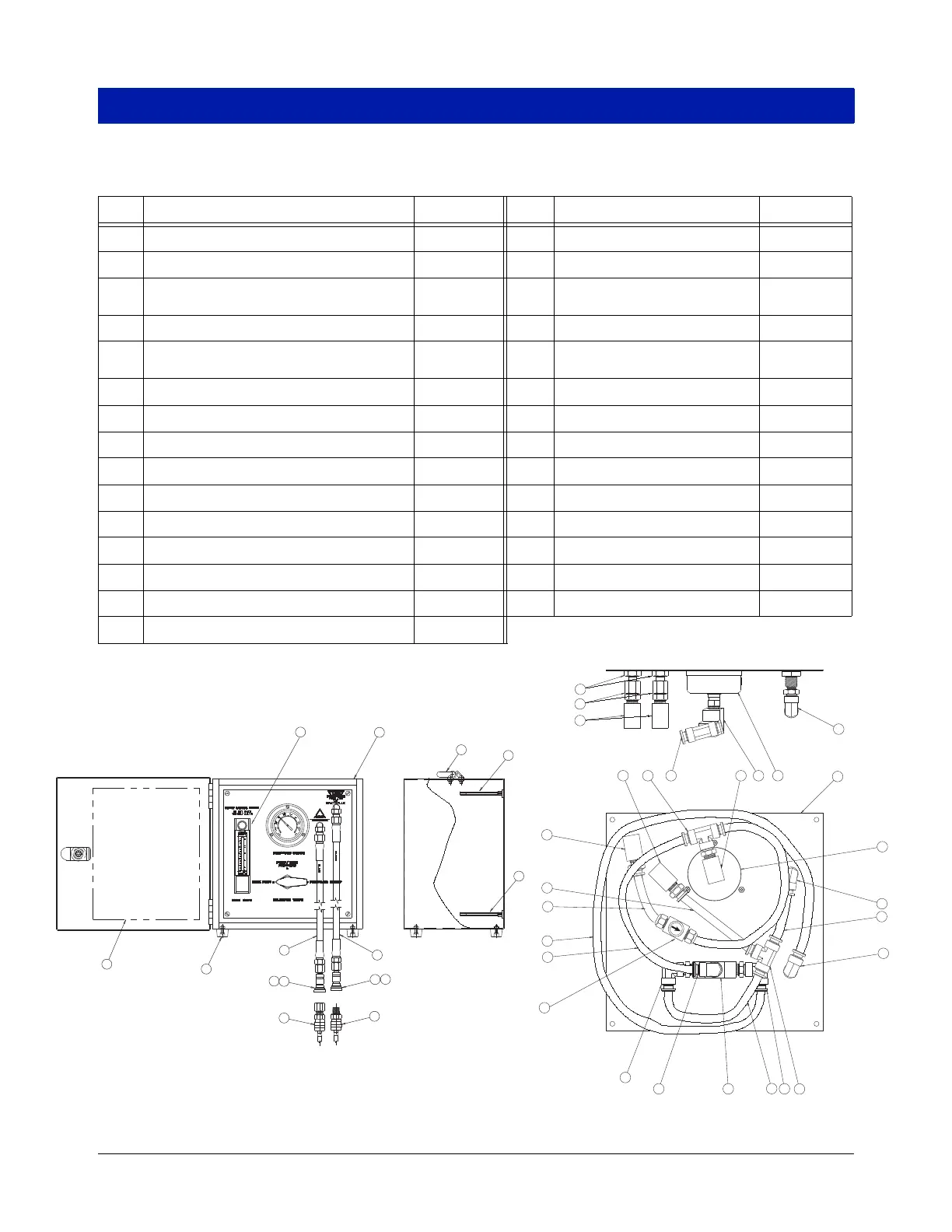

Parts Description & Replacement Parts List
Table 3. FX Tester Parts List
Item Description P/N Number Item Description P/N Number
1 Accucal Flowmeter 028-178-1 16 Valve-3-Way, Selector 088-153-1
2 Compound Gauge 031-323-1 17 Standoff, Hex Stud 080-746-1
3 1/8-In. NPT Male Snap-Tap Deso Stem 014-605-1
18 Extender, Hose Ass’y., 5 feet, Male X
Female, Snap-Tap, Black (N/S) 138-208-4
4 1/4-In. NPT Female Snap-Tap Body 014-606-1 Extender Hose Only, Black (N/S) 038-212-1
5 Swagelok Tube Connection Body 014-696-1
19 Extender, Hose Ass’y., 5 feet, Male X
Female, Snap-Tap, Orange (N/S) 138-209-4
6 Swagelok Tube Connection Deso Stem 014-697-1 Extender Hose Only, Orange (N/S) 038-213-1
7 Swivel Connector (9/16-In. Swivel Hex, 9/16-In. Hex) 027-241-1 20 Bumper 006-729-1
8 Bulkhead Union Elbow w/Locknut 027-244-1 21 Box 008-567-1
9 Elbow - Female 027-291-1 22 Handle 036-450-1
10 Male Branch Tee 027-290-1 23 Hose, Tester, Black 038-209-1
11 Union Elbow 027-242-1 24 Hose, Tester, Orange 038-210-1
12 Elbow, Male (1/8-In. NPTF) 027-287-1 25 Label 051-258-1
13 Elbow, Male (1/4-In. NPTF) 027-288-1 26 Panel 064-127-1
14 Tee-Union 027-289-1 27 Strainer 027-249-1
15 Nylon Tubing (0.375-In. OD; 0.275-In. ID) 10 Feet 780-311-1
25
20
23
