Module Removal/Installation
Removing An Interface Module
Disconnect, tag and lockout power to the TLS-450PLUS console be-
fore starting this procedure.
3. Remove the both left and right door screws (with a T-15 Torx driver) and swing open both doors to the left (see
Figure 4).

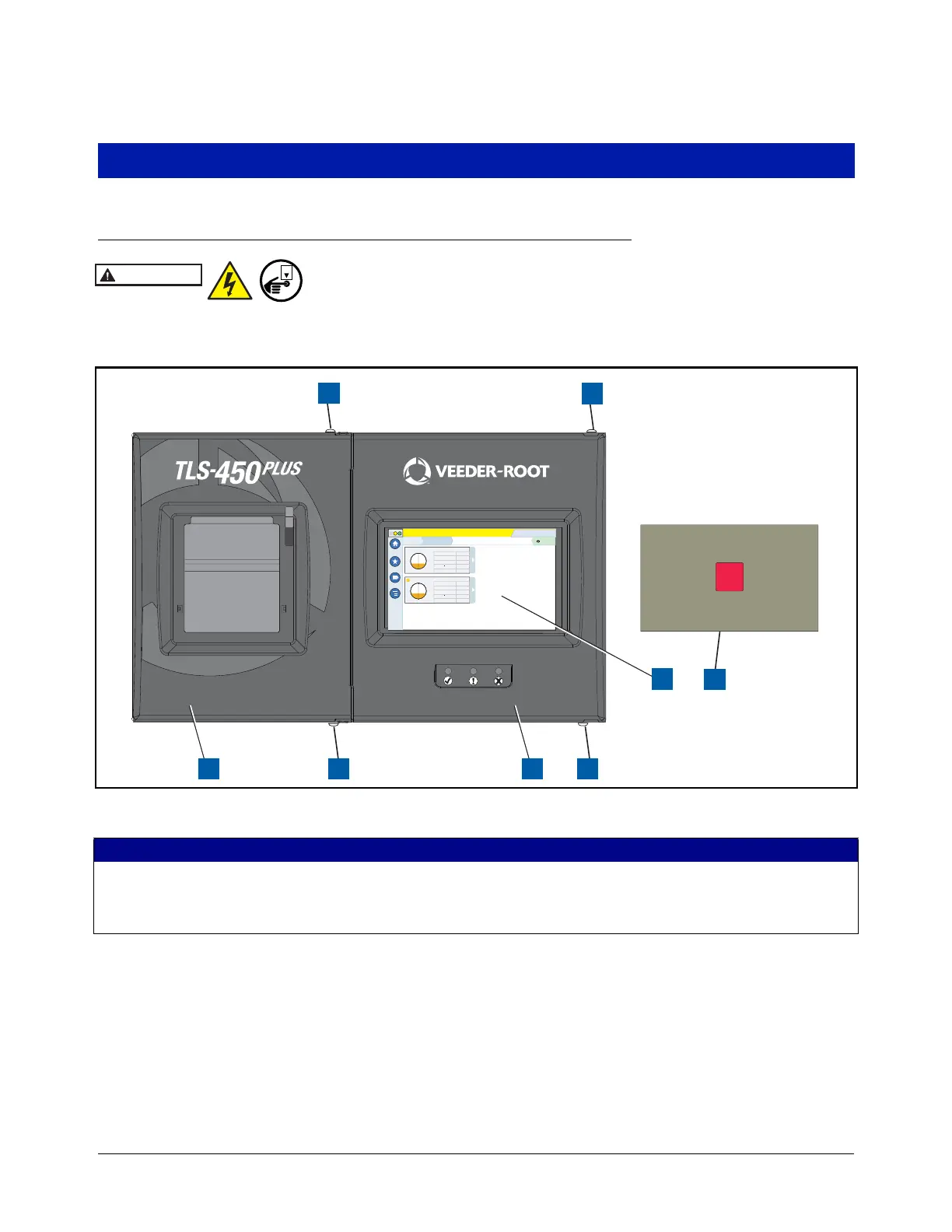

Figure 4. Opening The TLS-450PLUS Console Doors
4. Each Interface Module slot is numbered from 1 to 4 from left to right as shown in Figure 3.
5. An empty slot will have a blank cover in place of an actual Interface Module. Interface Modules and covers are
secured by two Torx head screws. Use a T-15 Torx driver to remove the securing screws.
6. Once the two Torx head screws securing the Interface Module are removed, grasp the Interface Module by its
3.5 inch ‘handle’ and pull it out of the slot.
7. Once an Interface Module is removed it must be replaced with another Interface Module or blank cover (P/N
332580-001) in the opening.
LEGEND FOR NUMBERED BOXES IN Figure 4
1. Left (Printer) door
2. Using a T-15 Torx driver, remove the top and bottom screws
securing left door and swing door to left.
3. Right (Display) door.
4. Using a T-15 Torx driver, remove the top and bottom screws
securing left door and swing door to left.
5.Optional Display
6. Acknowledge Switch Panel
2 4
2
4
T 2: DELIVERY NEEDED 12/20/2012 06:01 PM
Tank Overview
TANK 1: reg
Fuel Volume 3655
Fuel Height 38.6
Ullage 100% 6345
Temperature 61.9
Water Height 3.0
1 Warning(s)
0 Alarms(s)
Print (0)
Home
Favorites
Menu
Actions
Overview
TANK 2: diesel
Fuel Volume 1600
Fuel Height 20.6
Ullage 100% 8345
Temperature 60.8
Water Height 0.0
!
3
5
6
1
ALARM
RESET
OR
To Next Page
