Veeder-Root TLS Series Application Guide

POS App Guide DIM Installation Examples
38

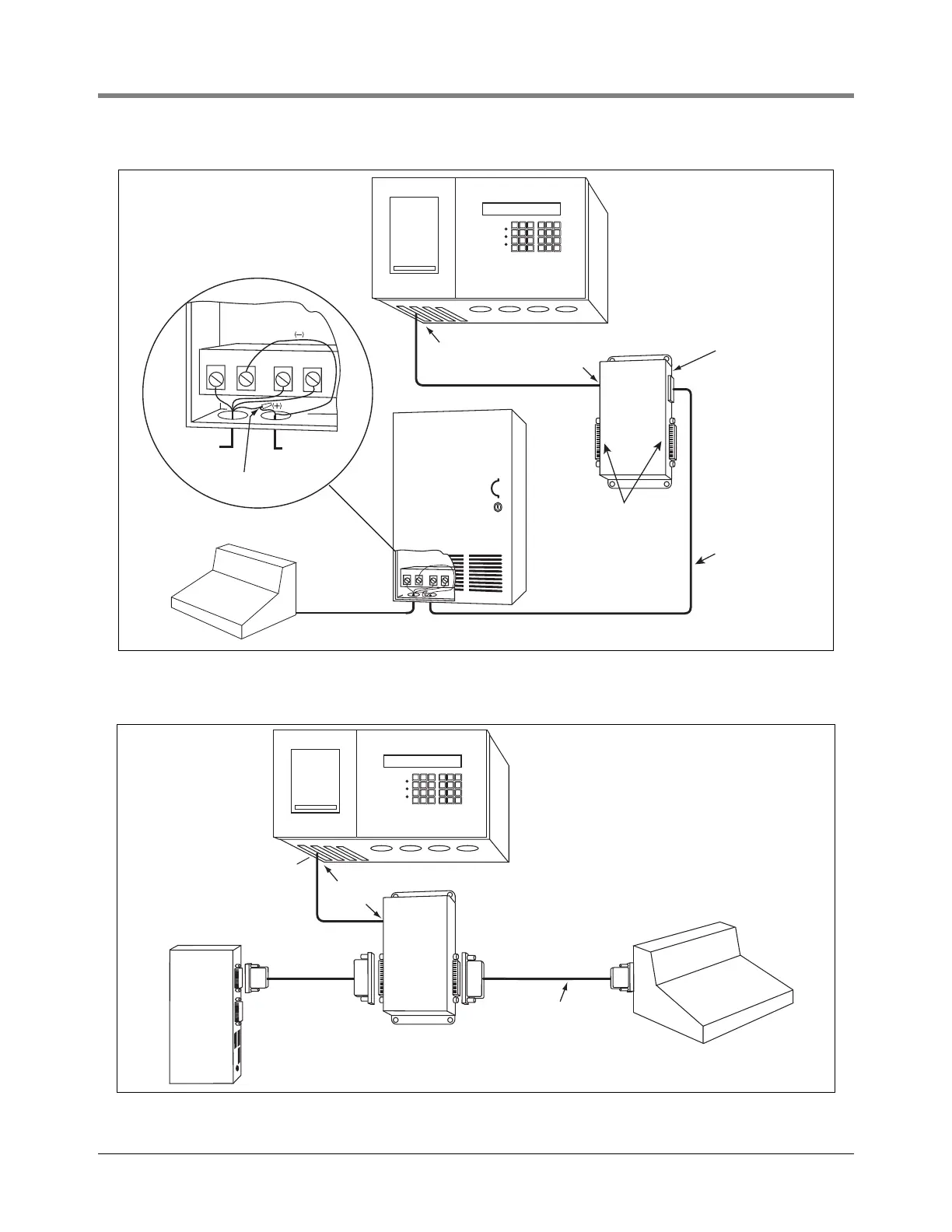

Figure 19. MicroMax POS with Allied Protocol Box Current Loop Interface
Figure 20. Pro Series Or MicroMax POS With SAM Or XPIC Controller Box And RS-232 CAB Interface
ALARM
WARNING
POWER
Communications Cable
Cable Adapter Box
401-23.eps
(+)
(–)
TB1
Allied Protocol Box
(PCB)
(Pump Distribution Box)
RJ-45
RJ-45
Wire Nut Connector Required
1 2 3 4
To C able
Adaptor Box
To
MicroMax
POS
Schlumberger MicroMax 3000 or Equivalent
TB1
(Note: These two 25 pin “D”
connectors are only to be
used with Allied Station
Site Controller Box)
Two Conductor Wire
Supplied By Contractor
(Maximum of 2 feet)
Connects to
CDIM
TLS-350R Console
ALARM
WARNING
POWER
Communications
Cable
401-24.eps
Cable
Adapter
Box
RJ-45
RJ-45
POS
CONTROLLER
XPIC
or
SAM
PORT 1
POS
PORT 2
25 Pin "D"
9 Pin "D"
25 Pin "D"
25 Pin Serial M/F
Communications Cable
9 Pin "D"
Port 5
Schlumberger Pro Series or MicroMax
Connects to
CDIM
TLS-350R Console
