Typical mounting method
Mounting templates can be downloaded
from our website at
veethree.com/support/templates/
”) x ”)
”) x ”)
70mm (2.75”) x 70mm (2.75”)
70mm (2.75”) x 70mm (2.75”)
Cut Out for back recess 86mm
diameter (3.39”)
Drill 4mm clearance x 4 = 4.3mm (0.17”)
mm
”)
= 4.3mm (0.17”)
”) x ”)
”) x ”)
70mm (2.75”) x 70mm (2.75”)
70mm (2.75”) x 70mm (2.75”)
”)
= 4.3mm (0.17”)
Cut Out for back recess 86mm
diameter (3.39”)
Drill 4mm clearance x 4 = 4.3mm (0.17”)

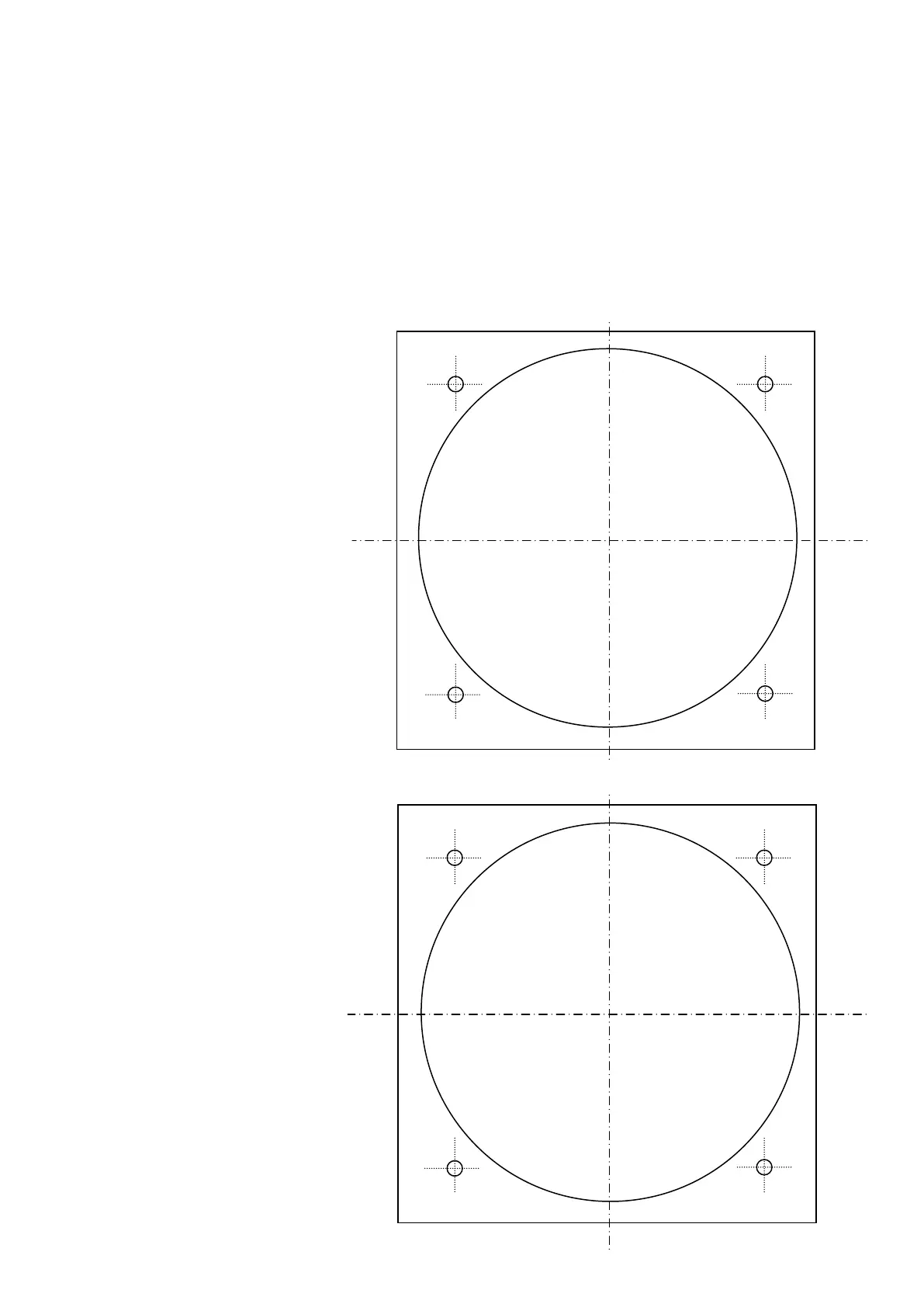

Fixing Template
Overall size 95mm (3.74”) x 95mm (3.74”)
Fixing Hole Positions 70mm (2.75”) x 70mm (2.75”)
