10.3 Dimensions
Housing
~ 69 mm
(2.72")
ø 77 mm
(3.03")
112 mm (4
13
/
32
")
M20x1,5/
½ NPT
~ 69 mm
(2.72")
ø 77 mm
(3.03")
117 mm (4.61")
M20x1,5/
½ NPT
~ 87 mm (3.43")
M16x1,5
ø 84 mm
(3.31")
120 mm (4.72")
M20x1,5/
½ NPT
~ 116 mm (4.57")
ø 84 mm (3.31")
116 mm (4.57")
M20x1,5M20x1,5/
½ NPT
~ 59 mm
(2.32")
ø 80 mm
(3.15")
112 mm (4.41")
M20x1,5/
½ NPT
1
3
4
5
2

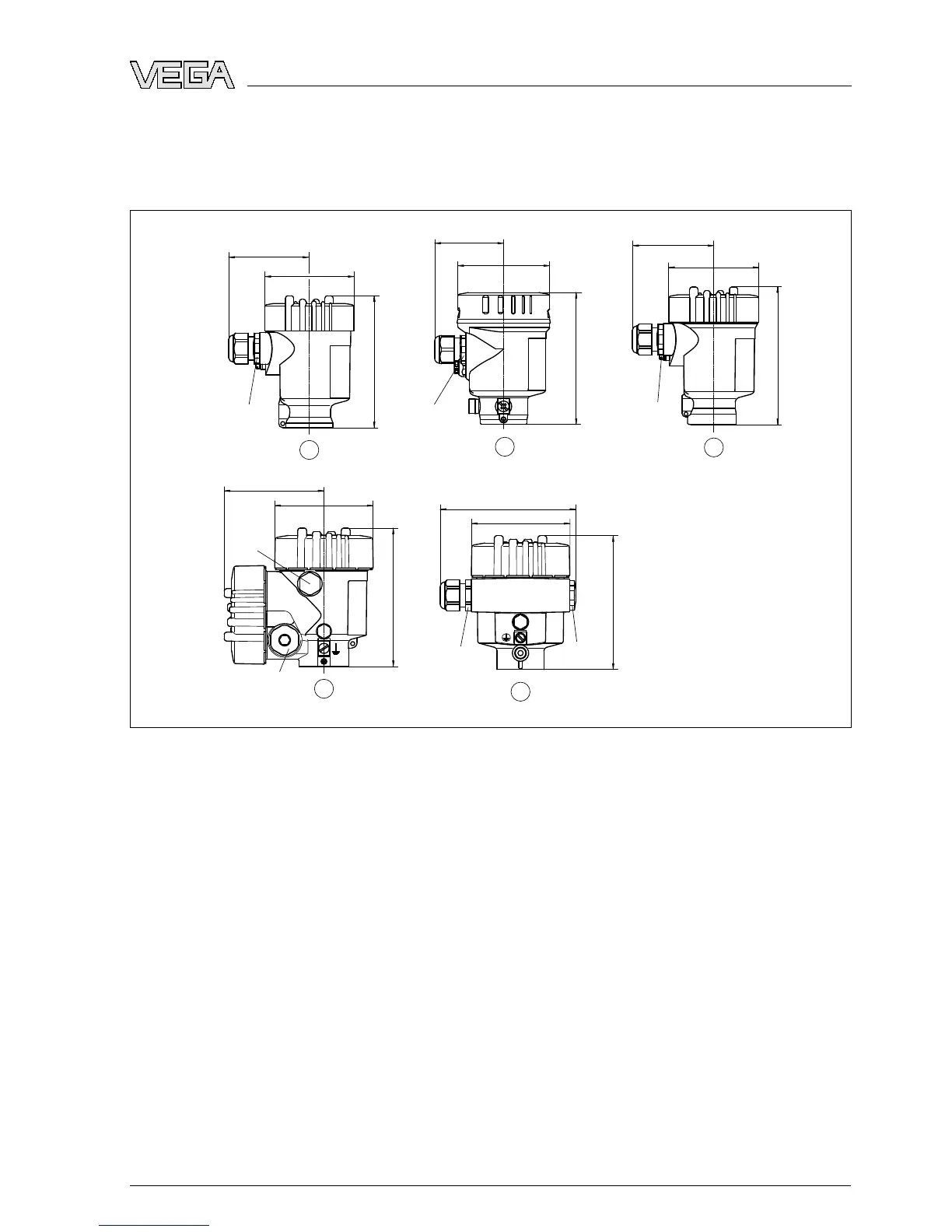

Fig. 31: Housing versions (with integrated PLICSCOM the housing is 9 mm/0.35 in higher)
1 Plastic housing
2 Stainless steel housing
3 Aluminium double chamber housing
4 Aluminium housing
VEGABAR 64 • Foundation Fieldbus 67
