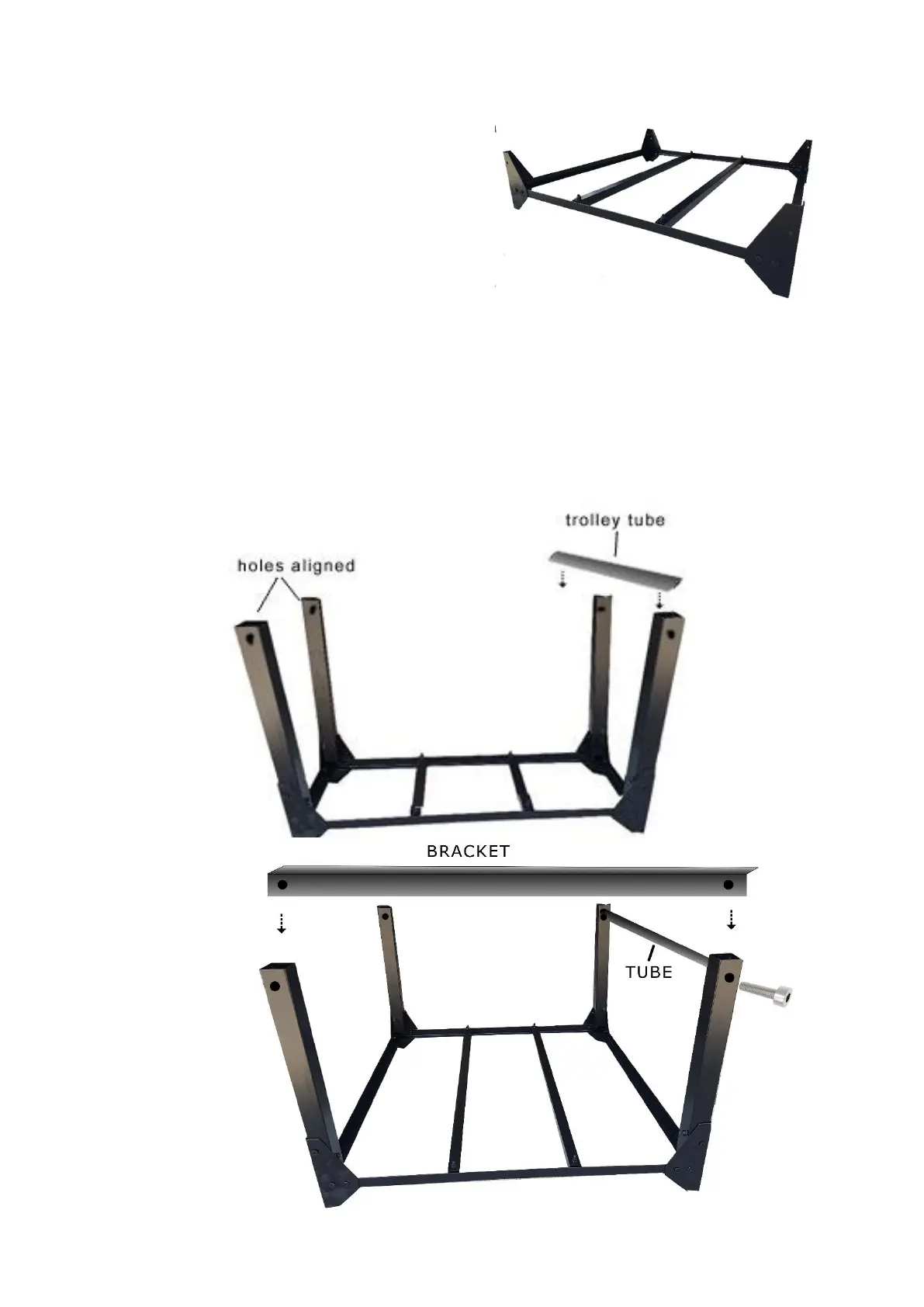

4. When you have bolted both the 2 long angle cross braces with holes to the
corner braces then slide the last 2 angle cross braces in(on top of other cross
braces) and bolt those to the corner braces.
5. Bolt legs to the Corner Brace using the LONG bolts and tighten. Rotate the legs to
line the holes up.
(*important – also ensure the holes at the bottom of the legs are aligned
lengthways. The tube for Trolley base will be positioned between these
holes.)
Using the long bolts, push
them through the
holes, then add nut and do
up finger tight.
