4.4 Electrical Specifications
L (inductance)
Range Resolution Accuracy Test
Frequency
Current through
inductance under
test
2mH 1µH + 2% of full scale + 1 digit 900Hz 150µA
20mH 10µH + 2% of full scale + 1 digit 900Hz 150µA
200mH 100µH + 2% of full scale + 1 digit 900Hz 150µA
2H 1mH + 5% of full scale + 1 digit 900Hz 150µA
C (Capacitance)
Range Resolution Accuracy Test
Frequency
Voltage across
Capacitance
under test
2nF 1pF + 1% of full scale + 1 digit 900Hz 150mV
20nF 10pF + 1% of full scale + 1 digit 900Hz 150mV
200nF 100pF + 1% of full scale + 1 digit 900Hz 150mV
2µF 1000pF + 2% of full scale + 1 digit 900Hz 150mV
20µF 0.01µF + 2% of full scale + 1 digit 90Hz 150mV
200µF 0.1µF + 2% of full scale + 1 digit 90Hz 15mV
Temperature coefficient:
Inductance: Range 2mH, 20mH, 200mH 0.2%/°C
Range 2H 0.5% / °C.
Capacitance: Range 2nF, 20nF, 200nF 0.1%/°C
Range 2µF, 20µF, 200µF 0.2%/°C
5. Accessories
Test leads, battery, operating manual, holster
5.1 How to use the holster
The holster is used to protect the meter and to make the measurement more comfortable. It comes with two stands
installed together. The figure shows how to use the holster to:
1) Support the meter with a standard angle. (fig. a)
2) Support the meter with a small angle using the little stand. (fig. b)
3) Hang the meter on the wall using the little stand. (fig. c)
Take the little stand off from the backside of the large stand and insert it into holes located upper on the holster.

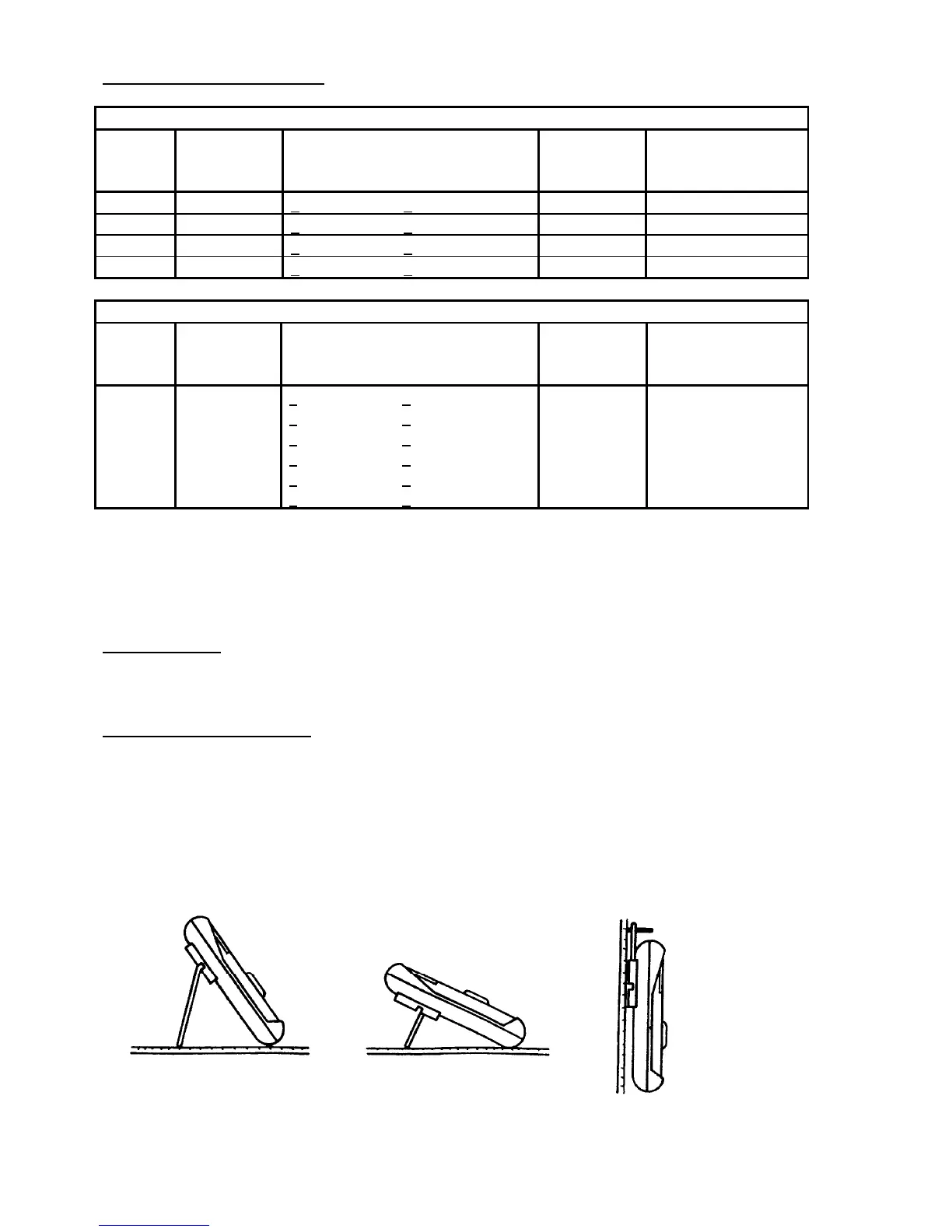

Fig. a
Fig. b Fig. c
