Velleman KA01 - Page 6

- 6 -

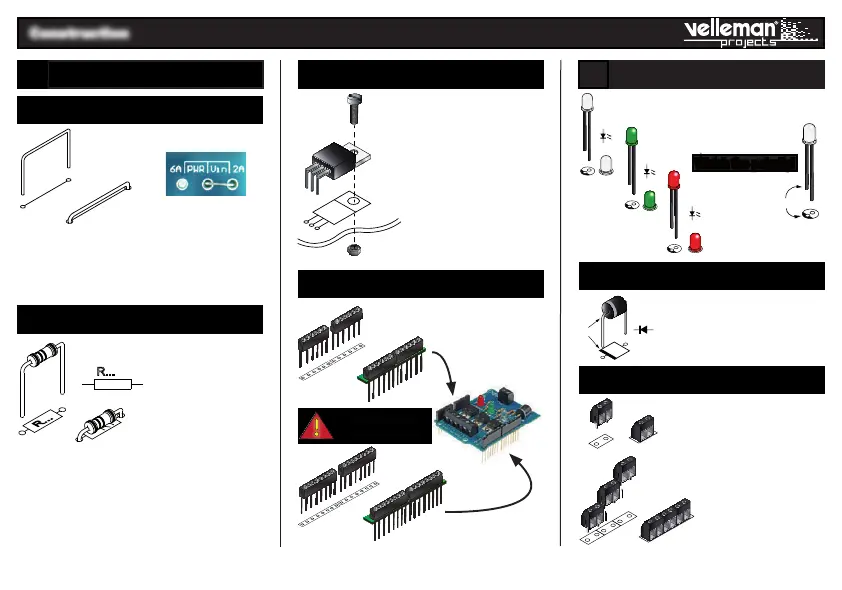

Construction
 R1: 1K (1 - 0 - 2 - B)
 R2: 68 (6 - 8 - 0 - B)
 R3: 180 (1 - 8 - 1 - B)
 R4: 330 (3 - 3 - 1 - B)
 R5: 330 (3 - 3 - 1 - B)
 R6: 330 (3 - 3 - 1 - B)
Jumper
1
R...
Select power source
 Vin: power from Arduino
®
OR
 PWR: Power from external supply
Resistors
2
Transistors
3
Female header
4
M3 NUT
TRANSISTOR
M3 BOLT
PCB
 T1: BUK9535-55
 T2: BUK9535-55
 T3: BUK9535-55
 2 x 6p
 2 x 8p
Do not cut the
connector pins!
LED’s
5
Watch the polarity!
 LD1: blue (water-clear!)
 LD2: Green
 LD3: Red
LD1
LD2
LD3
Diode
6
CATHODE
 D1: 6A6
Terminal blocks
7
 SK4: 2p (power)
 SK5: 2p (Red)
 SK6: 2p (Green)
 SK7: 2p (Blue)
CONSTRUCTION
I
C (-)
