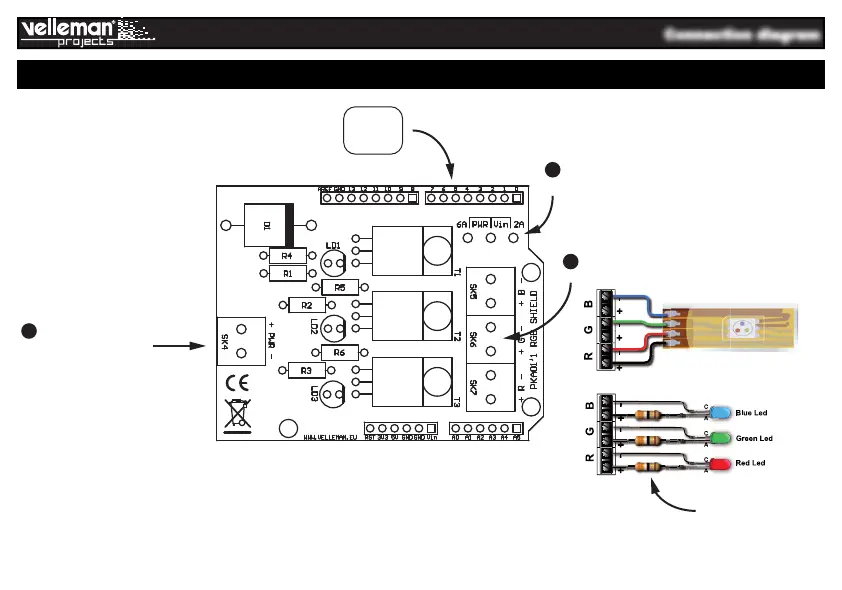

Connection diagram
CONNECTION DIAGRAM
II
SELECT POWER SOURCE
2
Vin: Power from Arduino (max. 2A)
PWR: Power from external supply (max. 50VDC/6A)
RGB OUTPUTS
3
Current limit resistor
EXTERNAL POWER
SUPPLY INPUT
1
Max. 50VDC/6A
6= Blue
5= Green
3= Red
DOWNLOAD SAMPLE CODE FROM KA01 PAGE ON
WWW.VELLEMAN.BE
