Velleman VMA333 User Manual

VMA333
V. 01 – 16/04/2018 3 ©Velleman nv
5. Overview
operating voltage ................................................................................................. 10-35 VDC
rated output current .................................................................................. ± 3 A - peak 3.5 A
dimensions ................................................................................................. 50 x 75 x 35 mm
weight ......................................................................................................................... 80 g
6. Pin Layout
terminal
description
EN+ EN-
enable positive/negative
CW+ CW-
direction control
CLK+ CLK-
pulse signal control
24+ GND
power supply
A+ A-
motor A (red/blue wire)
B+ B-
motor B (green/black wire)
controller:
MCU, PLC, digital circuits
TB6560
driver board

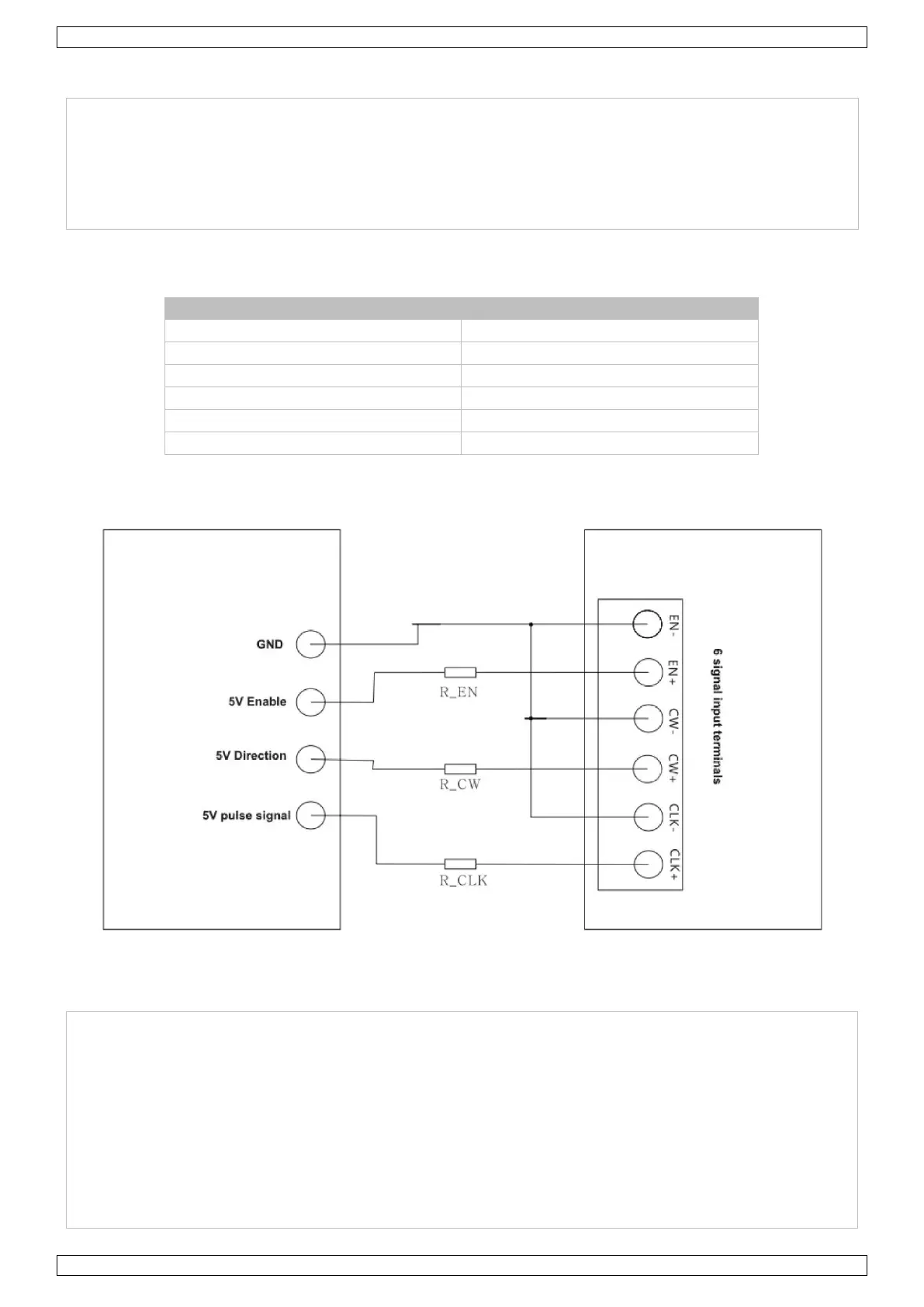

7. Example
Connection.
TB6560 driver board======Arduino
®
UNO
EN+======GND
EN-======GND
CW+======A0
CW-======GND
CLK+======D3
CLK-======GND
