VELMEX VXC-1 - Torque Graph 25 for VMN232-4.2-D (ST5918 S3008-B) Motor @ 28 V, 100% Power, With;Without Damper

VXC Version 5.01 Document #UMVXC-7-23-24 143 Copyright 2024 VELMEX, INC.

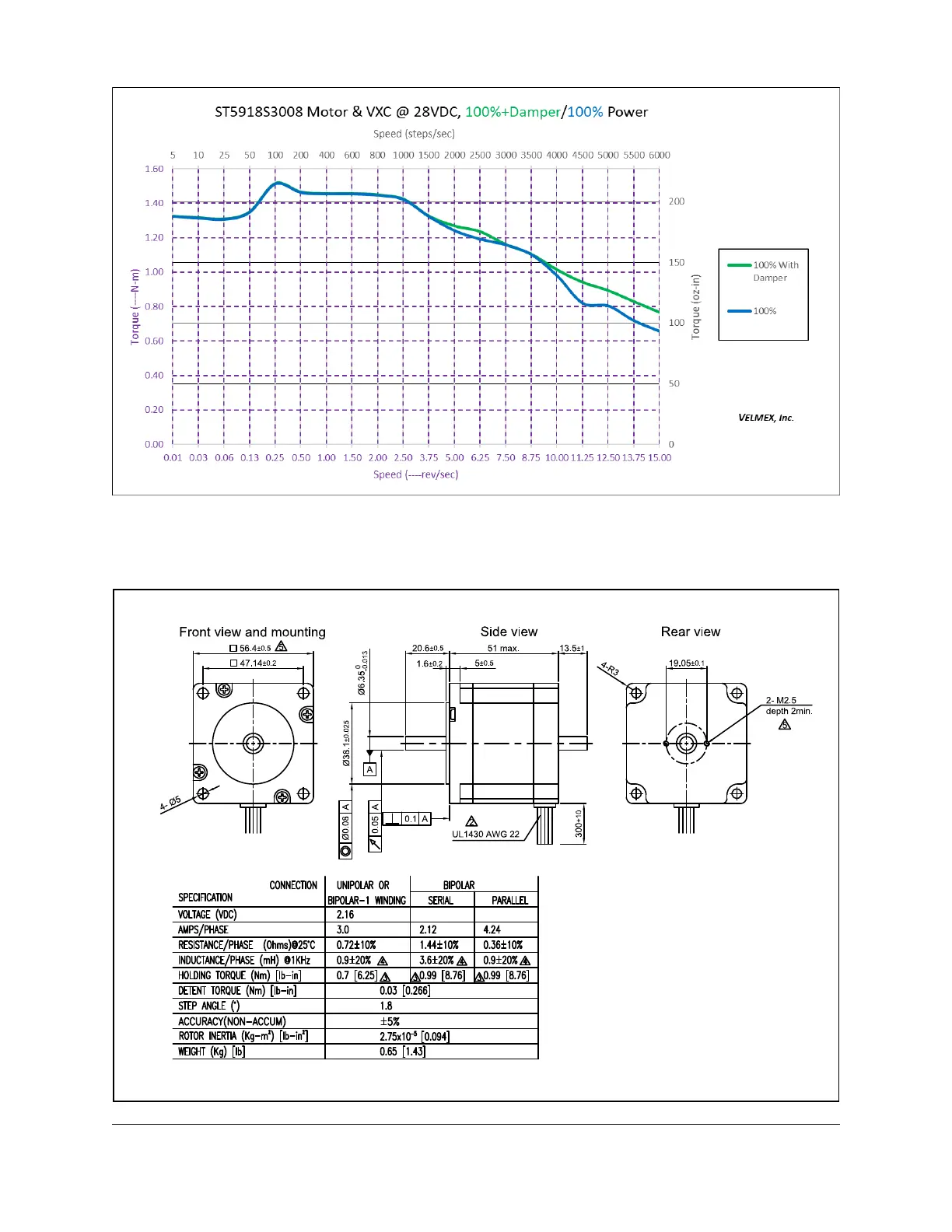

Torque Graph 25 for VMN232-4.2-D (ST5918S3008-B) Motor @ 28V, 100% Power, With/Without Damper
NOTE @ 100% Power Without Damper: 3000-6000 sps the motor requires > 25% torque load to
dampen resonance.
Figure 34 VMN232-4.2-D (ST5918S3008-B) Motor Specifications


