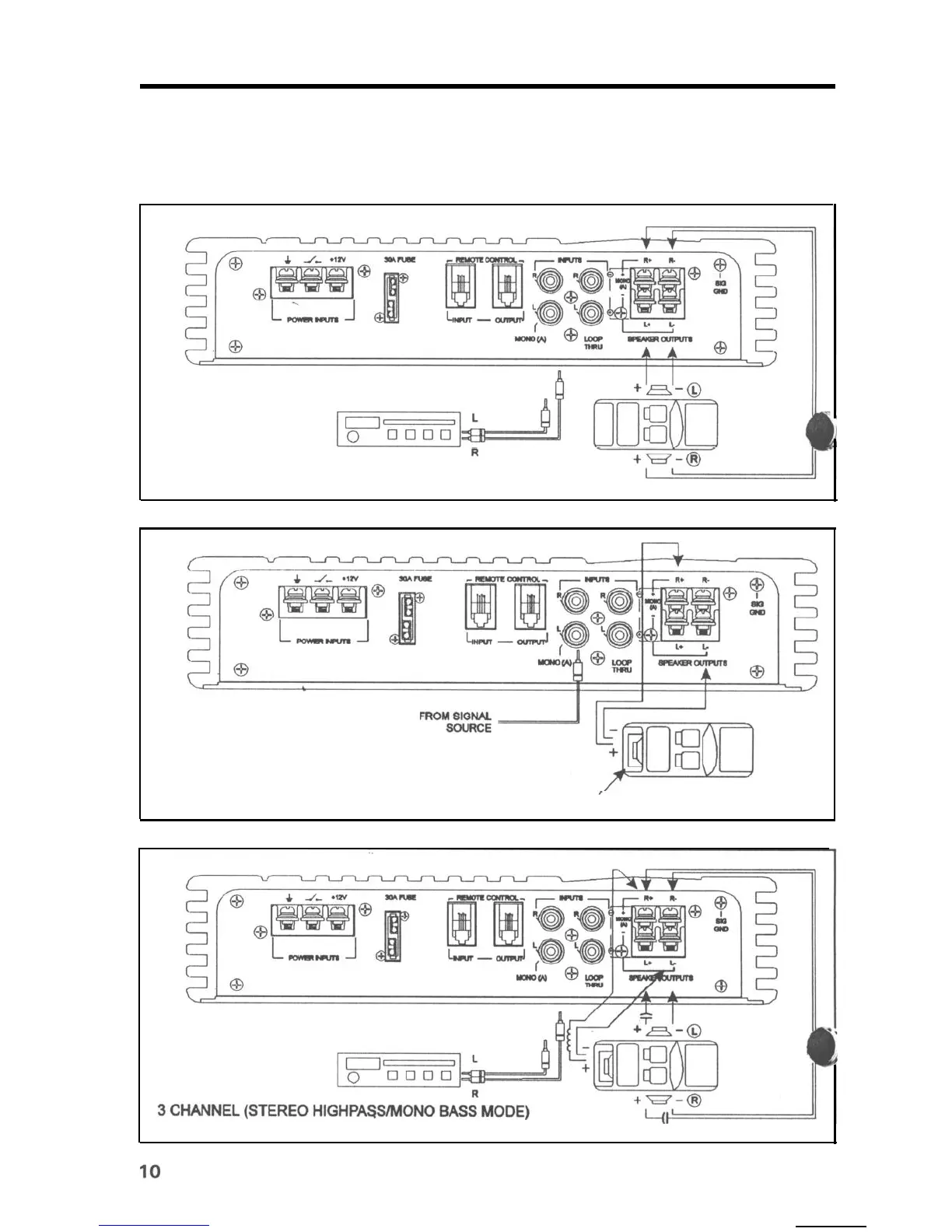

SPEAKER CONFIGURATIONS

Many audio systems can be generated from the three basic speaker output configurations of this

amplifier. They are: 2 channel stereo; 1 channel mono; and 3 channel mixed stereo/mono.

Possible in-car configurations will be covered elsewhere in this manual.

2 CHANNEL-STEREO MODE

1 CHANNEL-MONO/BRIDGE MODE

SUBWWFER
