4. Place the power and neutral cable contacts in the energy meter and tighten the
screws.
5. Prepare the wiring between the energy meter and the smart gateway (stripping 6
mm from the ends of the wires going into the latter), place the power and neutral
cable contacts in the smart gateway and tighten the screws.
3- INSTALLATION

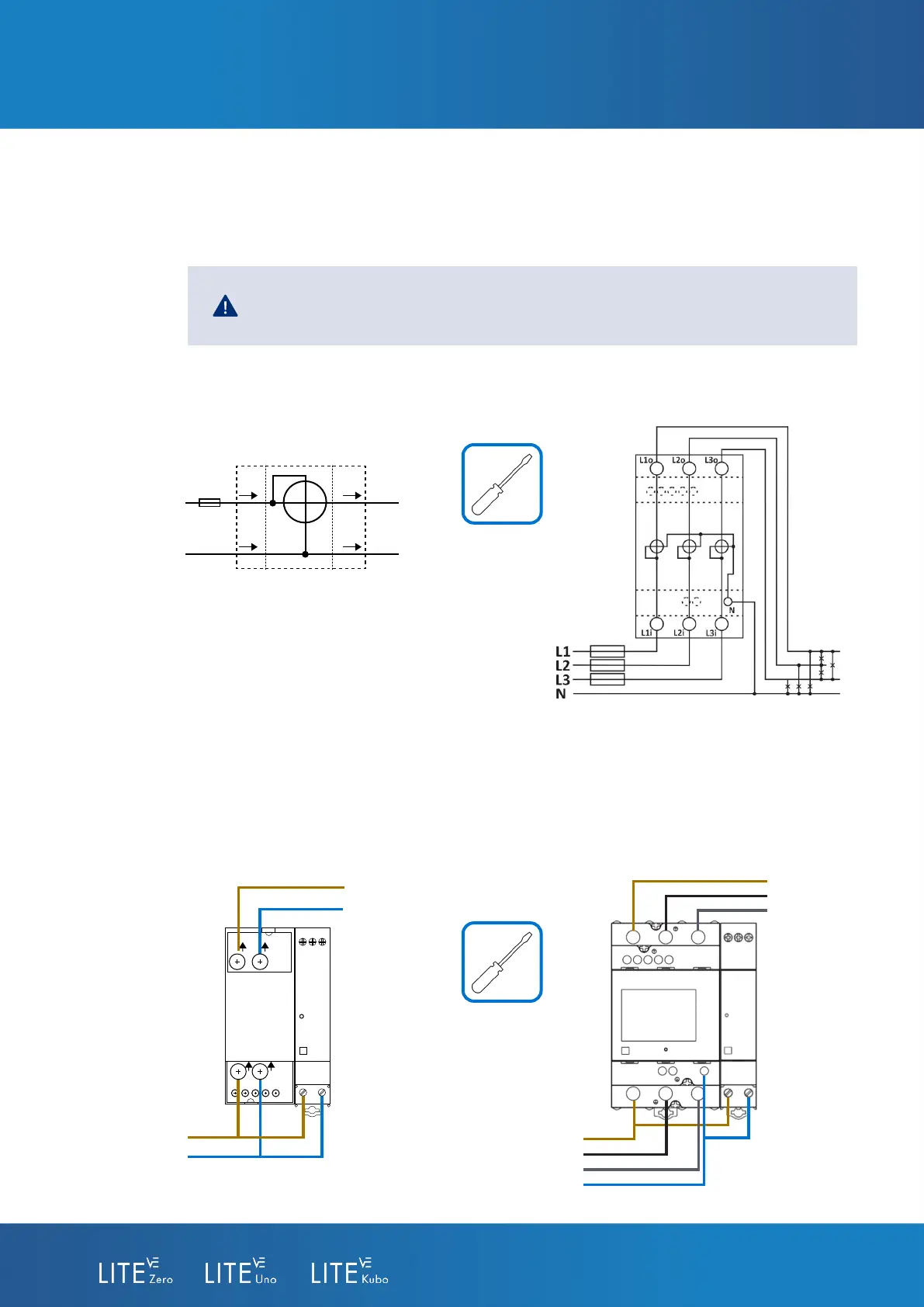

The incorrect or incomplete connection of voltage or other terminals
can cause malfunction of or damage to the device.
• L1, L2, L3: Phase lines.
• N: Neutral
Single-Phase
Three-Phase
Phase 1
Phase 2
Phase 3
Single-Phase
Three-Phase
Neutral
Phase 1
Phase 2
Phase 3
L
65 A
N
N
I
N
O
L
I
L
O
L N
L N
Phase 1
Phase
Neutral
Neutral
