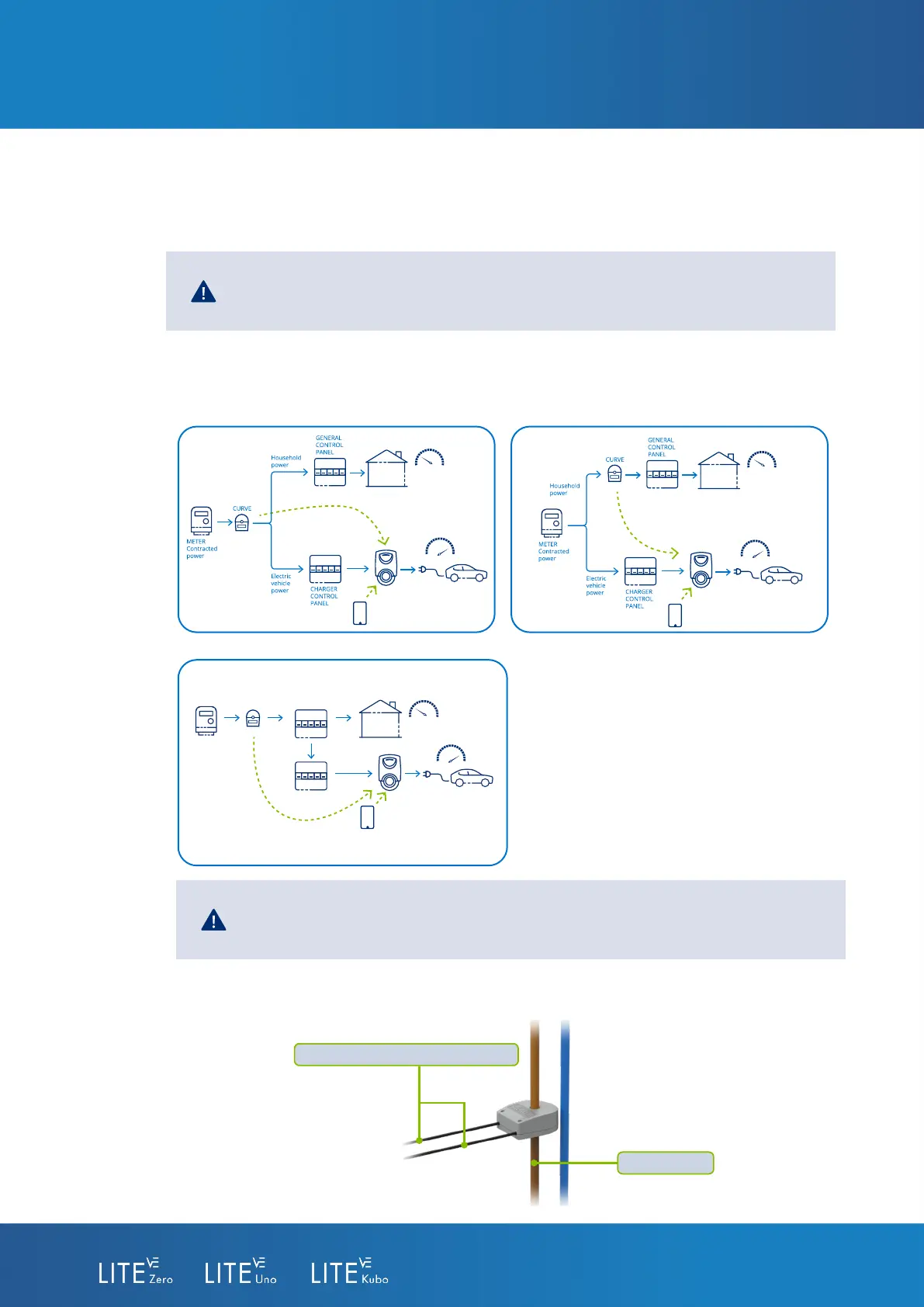

3.3 INSTALLATION OF THE CURVE DEVICE
1. Select the circuit onto which you want to install the CURVE device.
2. Install the CURVE device in the active phase of the circuit you wish to measure
(general or home).
Connection cables with
charger
Active
phase
3- INSTALLATION
The CURVE device is designed for use with the LITE Zero/Uno charger.
Operation of the CURVE device is independent from the direction of
the active phase current passing through it.
At the meter outlet In the home circuit
Housing
association
Detached
property
CURVE
METER
Contracted
power
GENERAL
CONTROL
PANEL
CHARGER
CONTROL
PANEL
To Next Page
