INSTALLATION
MANUAL
4- TECHNICAL SPECIFICATIONS

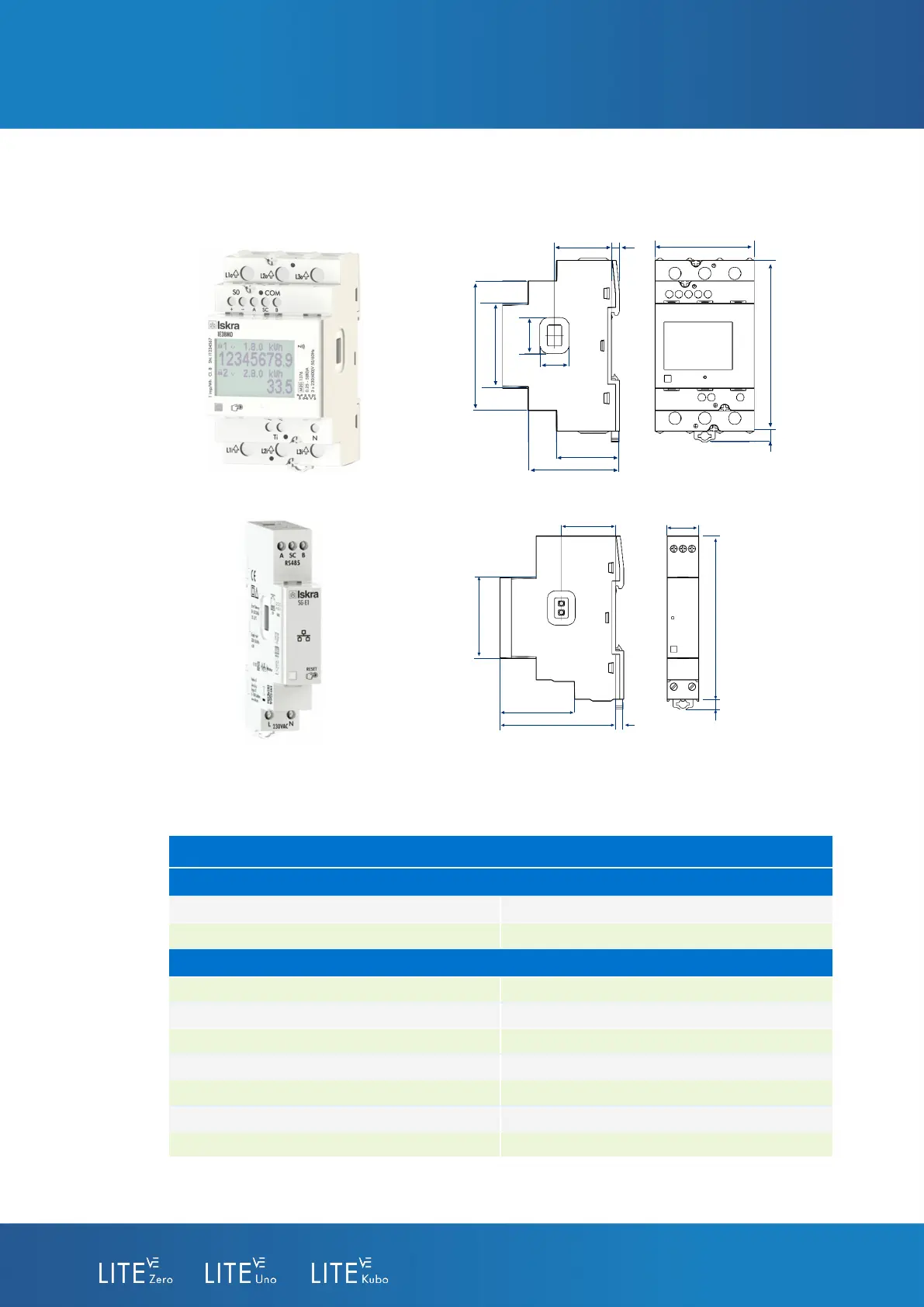

THREE-PHASE METER SET
TECHNICAL SPECIFICATIONS (Three-phase energy meter - IE38MD)
Mechanical
Dimensions (mm) 52.5 x 96.4 x 68.2
Mounting DIN rail
Electrical
Power supply Three-phase (3P+N)
Maximum current 80 A
Voltage 3 x 400 V AC
Frequency 50 - 60 Hz
Phase cable gauge 2.5 - 25 mm
2
Neutral cable gauge 0.5 - 1.5 mm
2
Certication MID
*Images taken from the corresponding Iskra manuals
SG-E1 IE38MD
30 mm
17.5 mm
90.7 mm
4.7 mm
4.3 mm
63.9 mm
41,1
45 mm
41.1 mm
68.1 mm
45 mm
4.3 mm
30 mm
52.5 mm
91.7 mm4.7 mm
19 mm
15.5 mm
33.3 mm
48.2 mm
